Full Throttle Switch

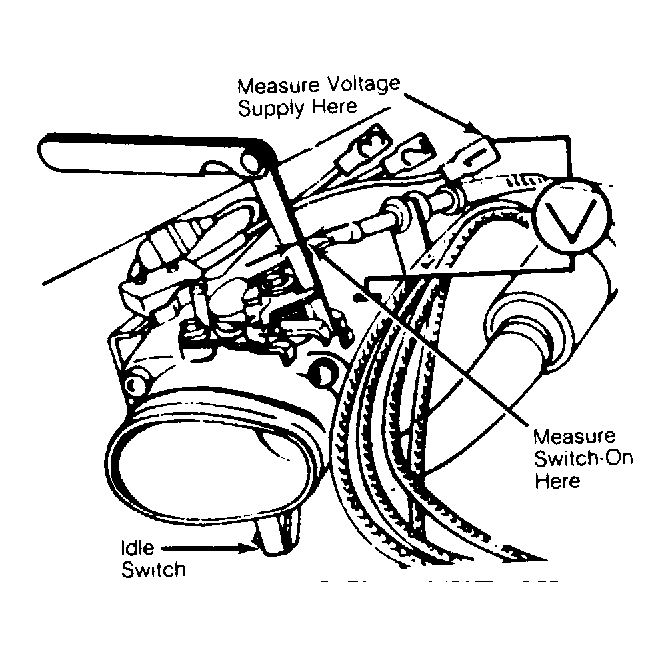

- Attach protractor pointer to upper left bolt on throttle valve housing. Attach protractor to secondary throttle valve shaft. Remove shaft nut if necessary. Disconnect throttle switch wiring. Connect ohmmeter between switch terminals. See Fig 1 .
- Set secondary throttle plate in full open position and move protractor until pointer is on "0" degrees. Allow secondary throttle valve to close about 30 degrees and reopen to full throttle position.
- Ohmmeter must read zero ohms at 8-12 degrees before full throttle. Loosen mounting screws and adjust switch. Reading must be zero ohms (continuity) at full throttle position.
