Wiring Diagrams

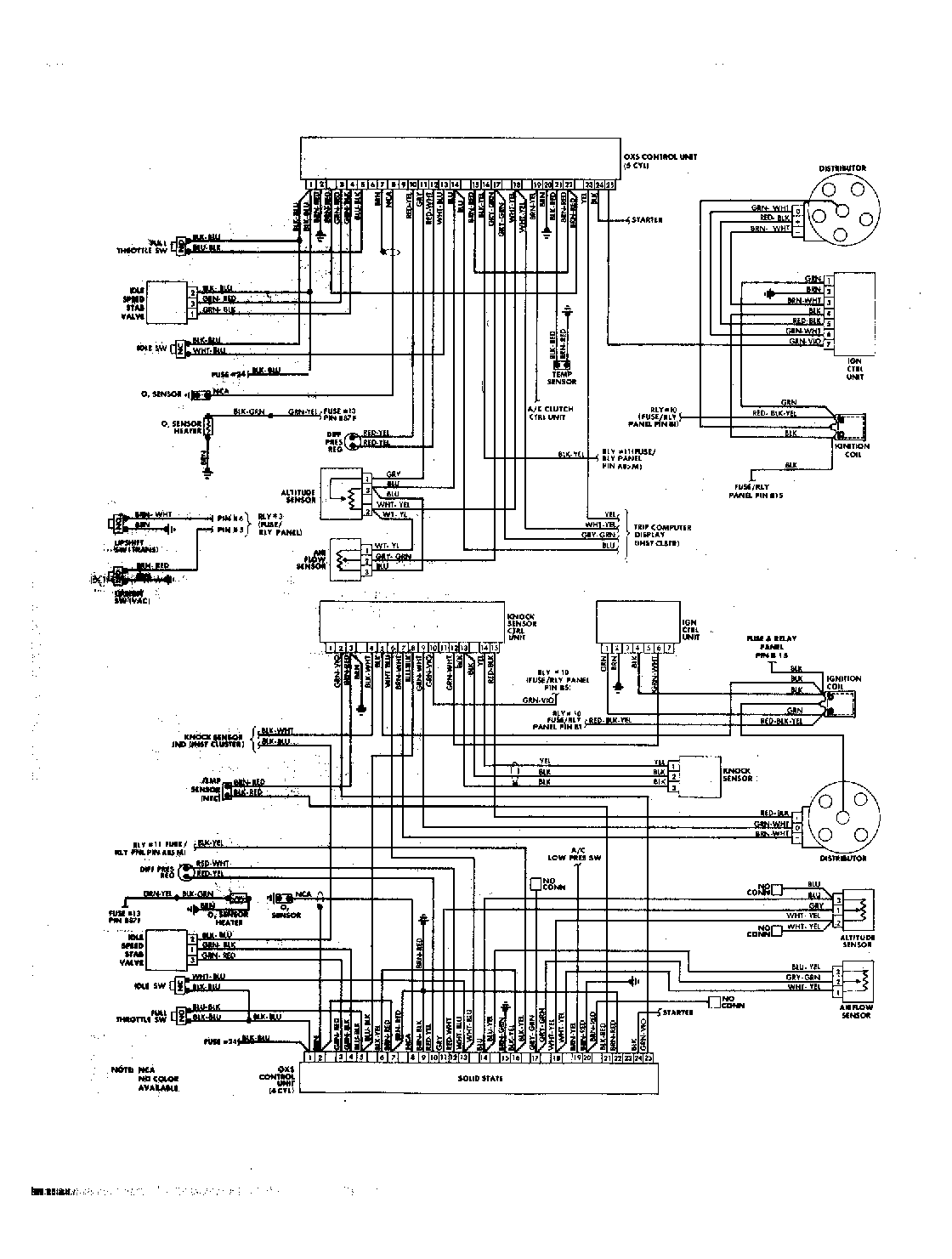

Fig 1: 4000S & 4000S Quattro (4 & 5-Cylinder) CIS-E Schematic
G61273

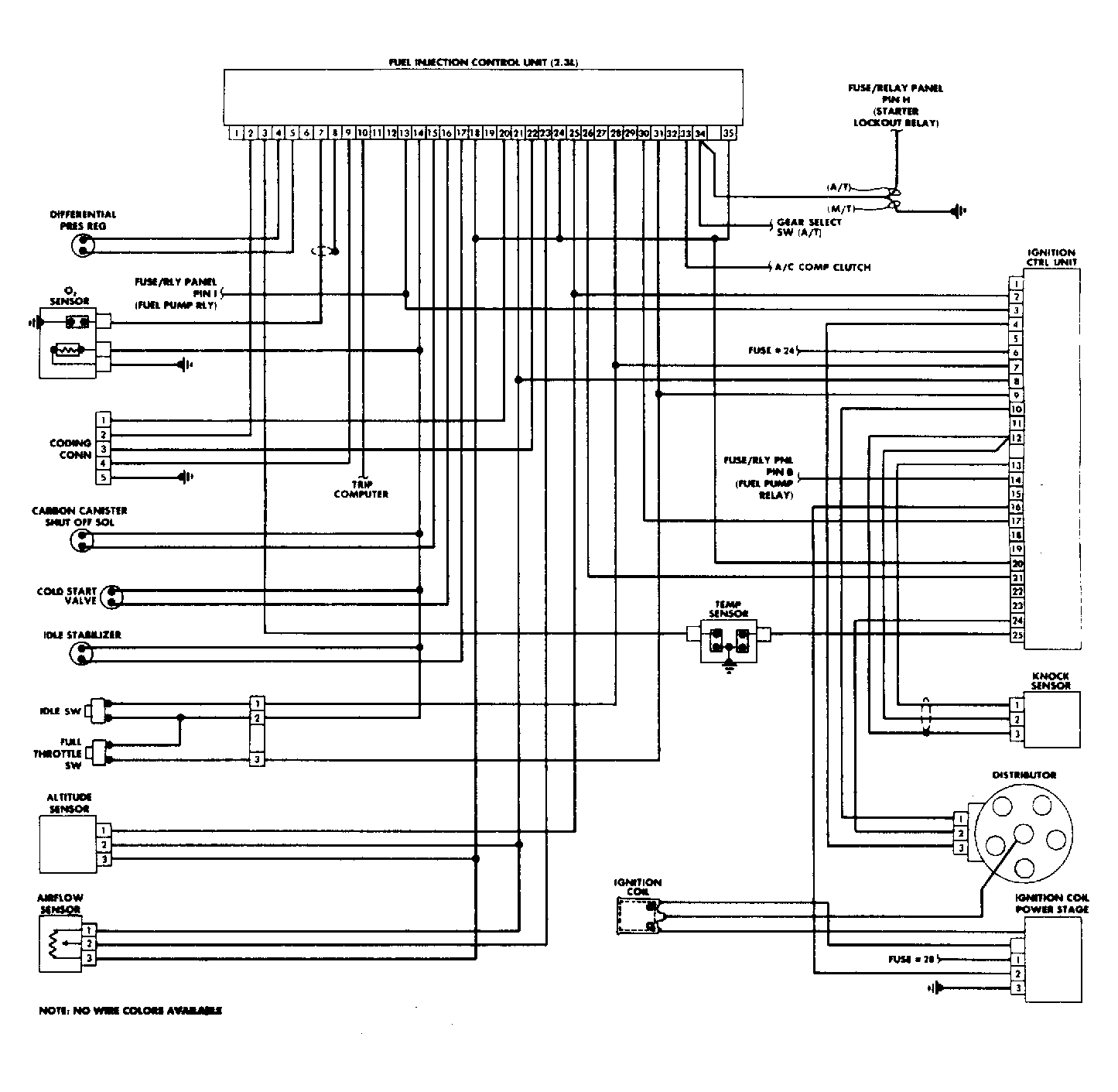

Fig 2: 5000S CIS-E Schematic
G61274

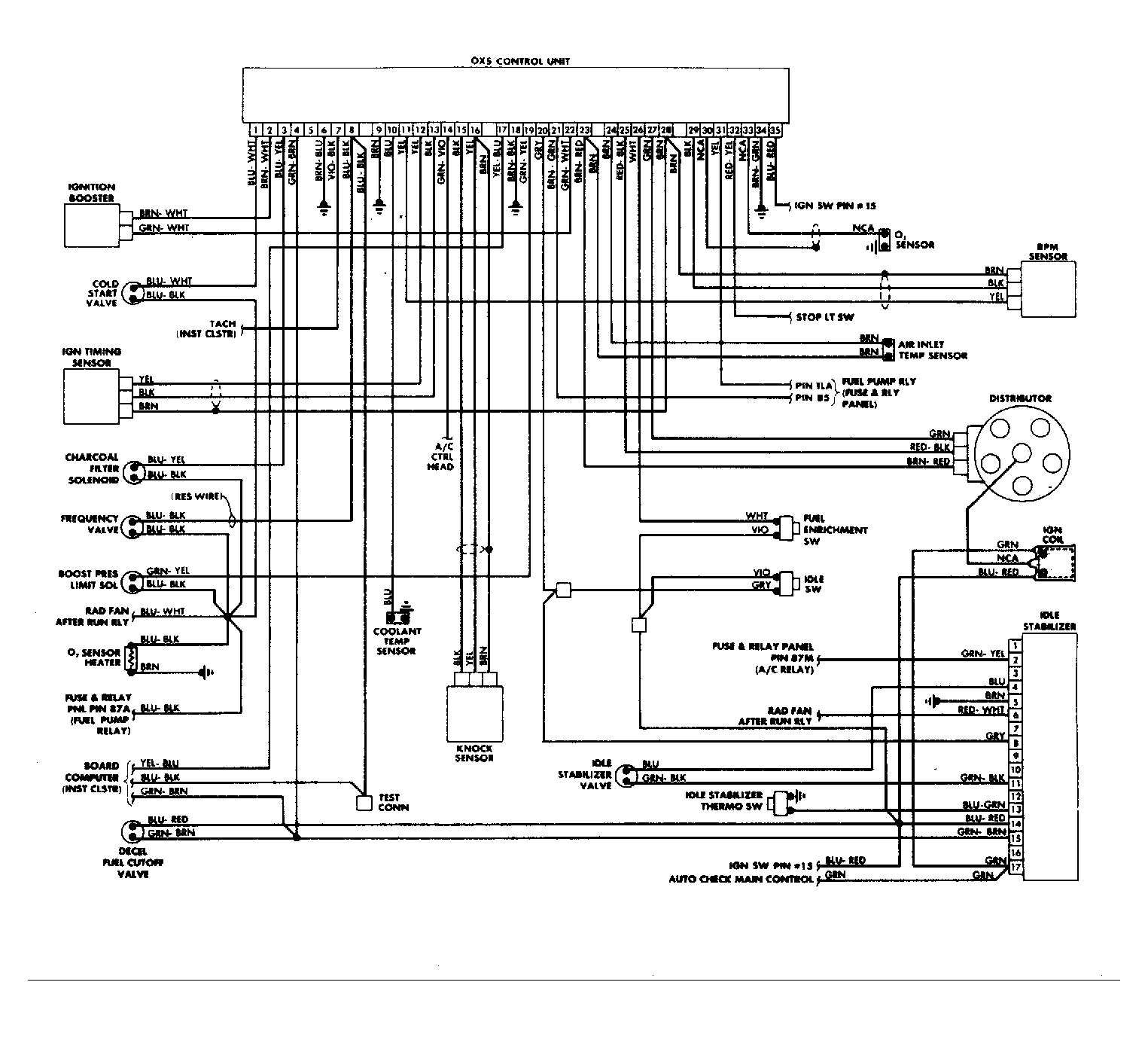

Fig 3: 5000CS (Turbo & Quattro) CIS-E Schematic
G61275
