Ignition Distributor

Ignition distributor is a Hall Effect type with no centrifugal or vacuum advance. Voltage signal from Hall sender is received by ECU for engine RPM input and crankshaft position for ECU control of ignition timing.

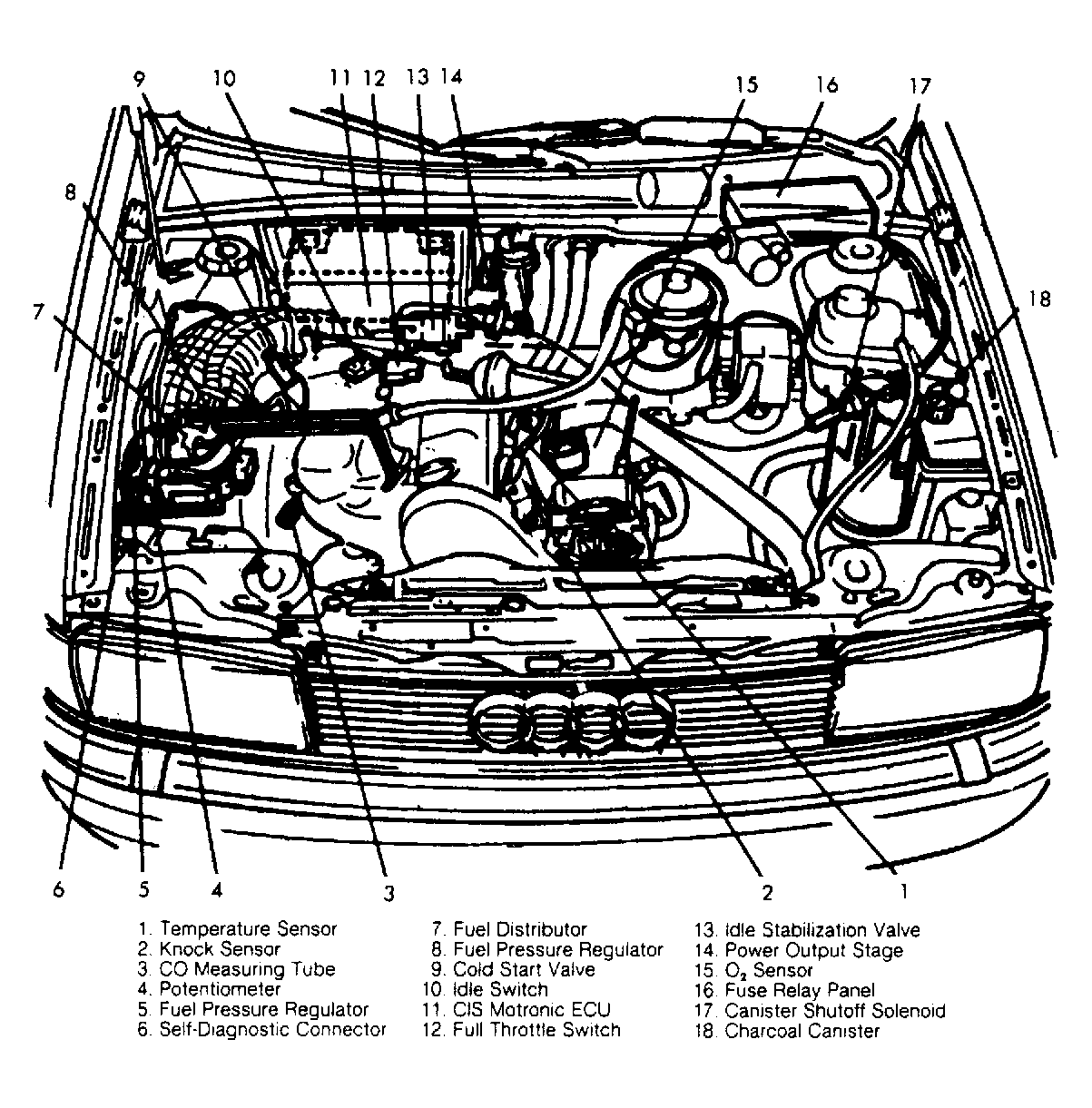

Fig 1: CIS Motronic Component Location

Courtesy of AUDI OF AMERICA, INC.
