Fuel System Specifications

For specifications, see Fig 1 -Fig 4 .

Fig 1: Fuel System Specifications (80, 4-Cyl.)

Courtesy of AUDI OF AMERICA, INC.

Fig 2: Fuel System Specifications (80 & 90, 5-Cyl.)

Courtesy of AUDI OF AMERICA, INC.

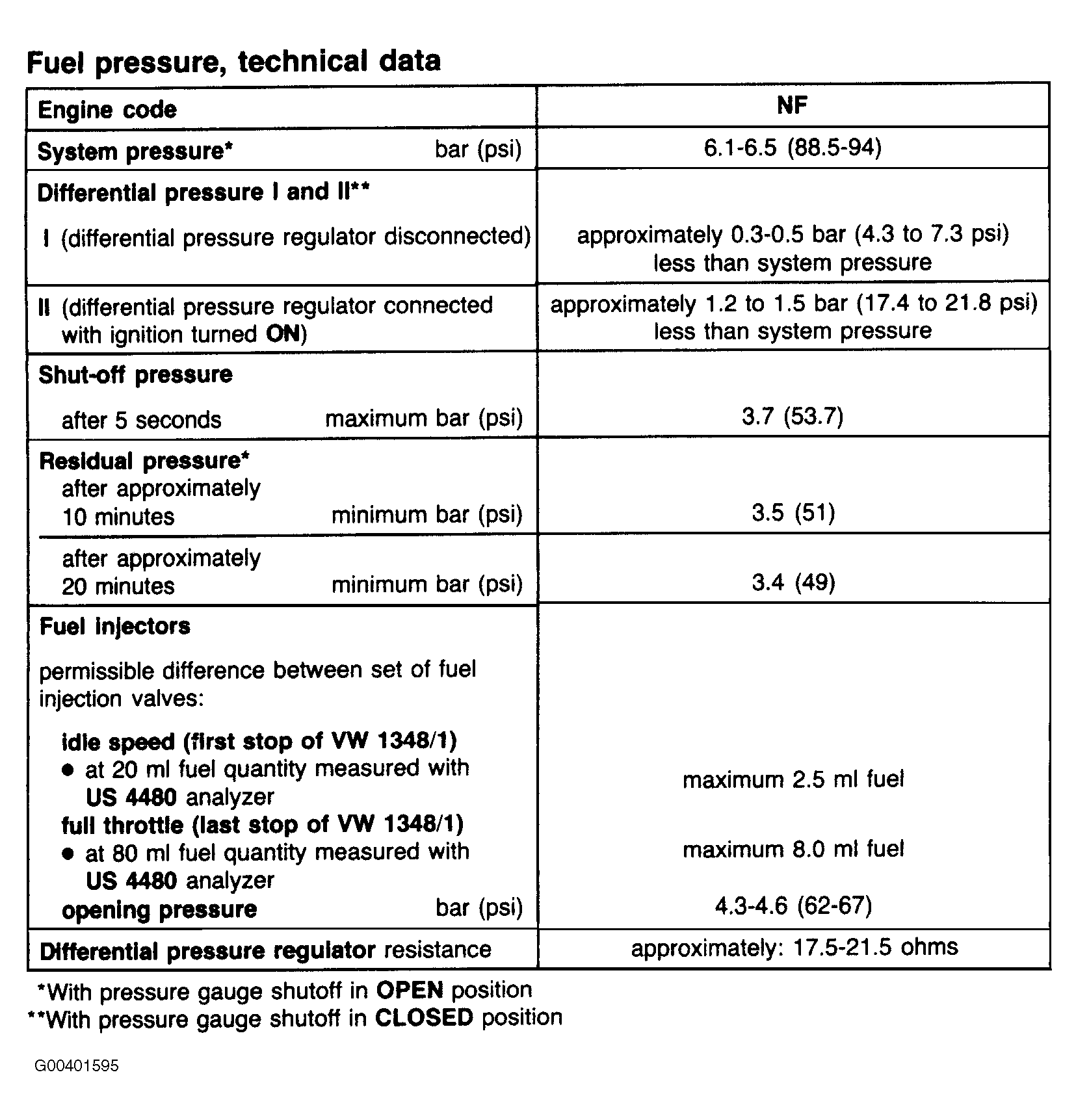

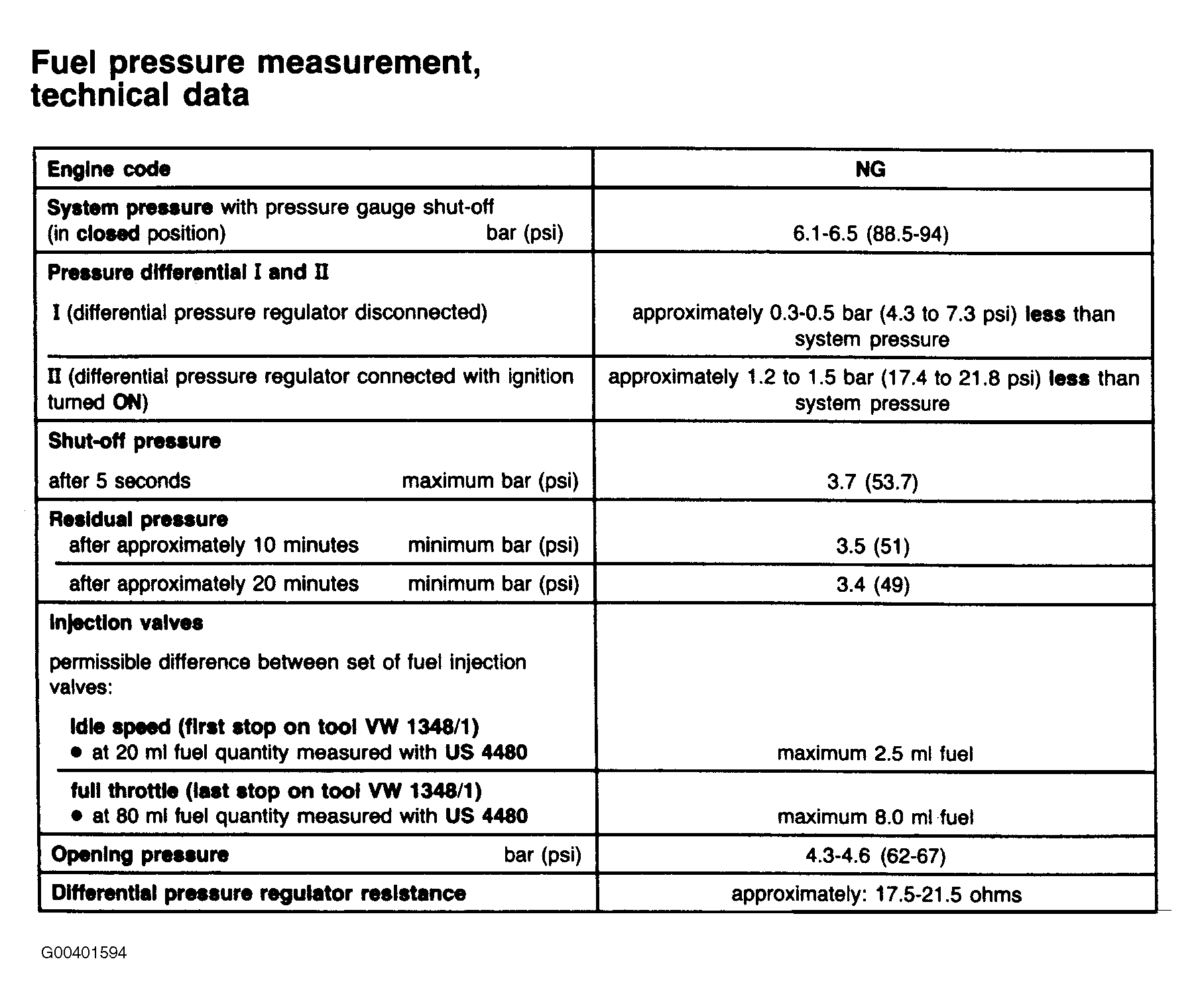

Fig 3: Fuel System Specifications (100 & 200, Non-Turbo, Engine Code NF)

Courtesy of AUDI OF AMERICA, INC.

Fig 4: Fuel System Specifications (100 & 200, Turbo, Engine Code MC)

Courtesy of AUDI OF AMERICA, INC.
