Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/C Blower Control Unit | On right side of A/C evaporator housing. |
| A/C Control Unit | In center of dash. |

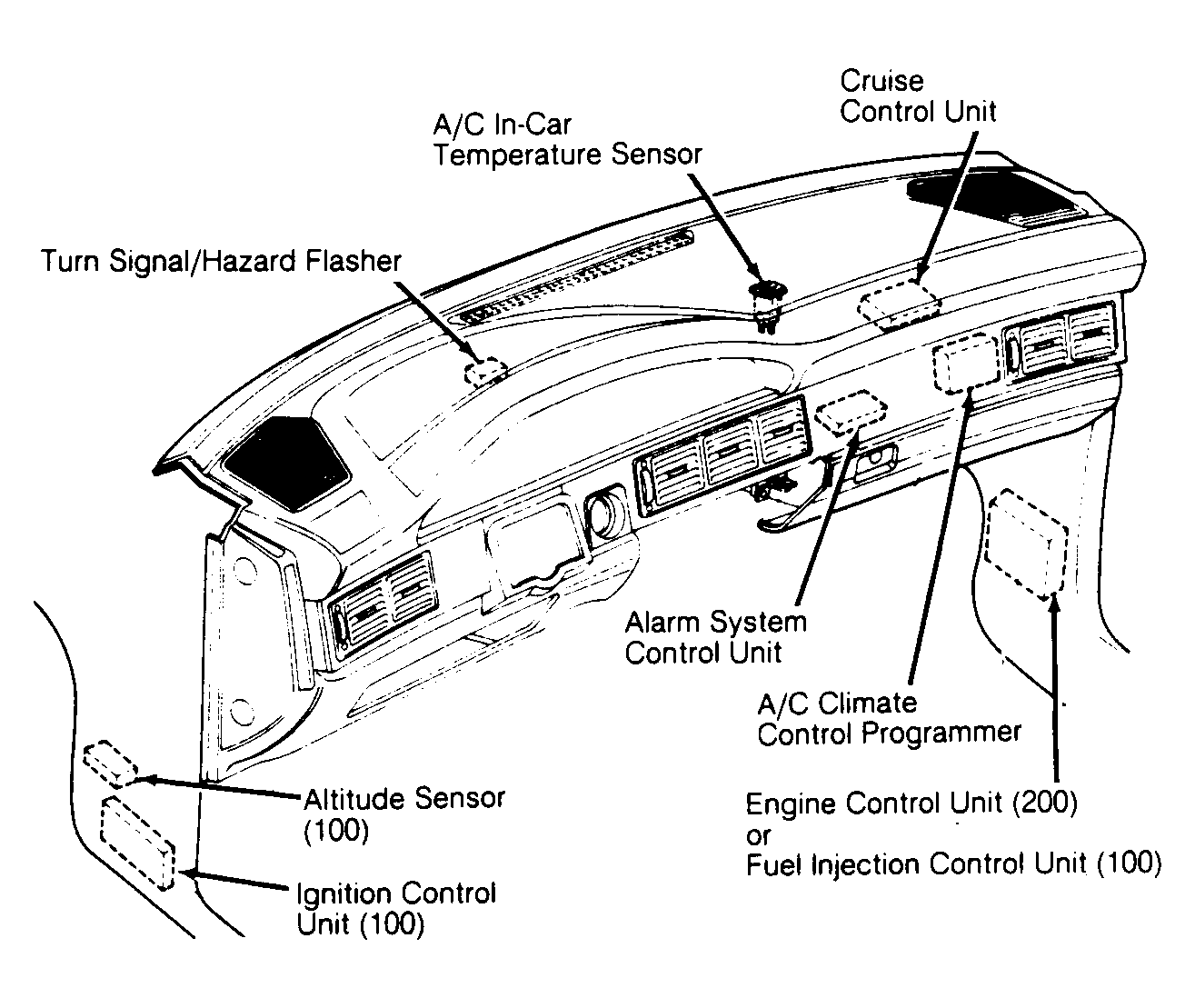

| A/C Climate Control Programmer | Behind glove box. See Figure . |
| ABS Control Unit | Under left rear passenger's seat. |
| Alarm System Control Unit | Under right side of dash. See Figure . |
| Automatic Seat Control Unit | Under driver's seat. |
| Cruise Control Unit | Under right side of dash. See Figure . |
| Engine Control Unit (200) | Behind right kick panel. See Figure . |
| Fuel Injection Control Unit (100) | Behind right kick panel. See Figure . |
| Idle Stabilizer & Fuel Deceleration Control Unit (200) | Behind left kick panel. See Figure . |
| Ignition Control Unit (100) | Behind left kick panel. See Figure . |
| Interior Light Delay Control Unit | On auxiliary relay panel. See Figure . |
| Light Control Unit (Front) | On auxiliary relay panel. See Figure . |
| Power Window/Sun Roof Control Units (2) | On auxiliary relay panel. See Figure . |
| Rear Differential Lock Control Unit | Under center of rear seat. |
| Seat Belt/Park Light/Radio Warning Control Unit | On auxiliary relay panel. See Figure . |
| Taillight Control Unit | On left side of trunk, near antenna. |
