General Specifications & VIN Identification

GENERAL SPECIFICATIONS & VIN IDENTIFICATION

Application Specification
80
Body Code 89
Engine Type 2.0L (A)
Engine ID 3A
Fuel System CIS Motronic
Ignition System (1) Hall Sensor
90 & 80/90 Quattro
Body Code 89
Engine Type 2.3L (B)
Engine ID NG
Fuel System CIS-E III
Ignition System (1) Hall Sensor
100 & 100 Quattro
Body Code 44
Engine Type 2.3L (B)
Engine ID NF
Fuel System CIS-E III
Ignition System (1) Hall Sensor
200 & 200 Quattro
Body Code 44
Engine Type 2.2L Turbo (C)
Engine ID MC
Fuel System CIS Digital Control
Ignition System (1) Hall Sensor
(1) Timing is computer controlled.

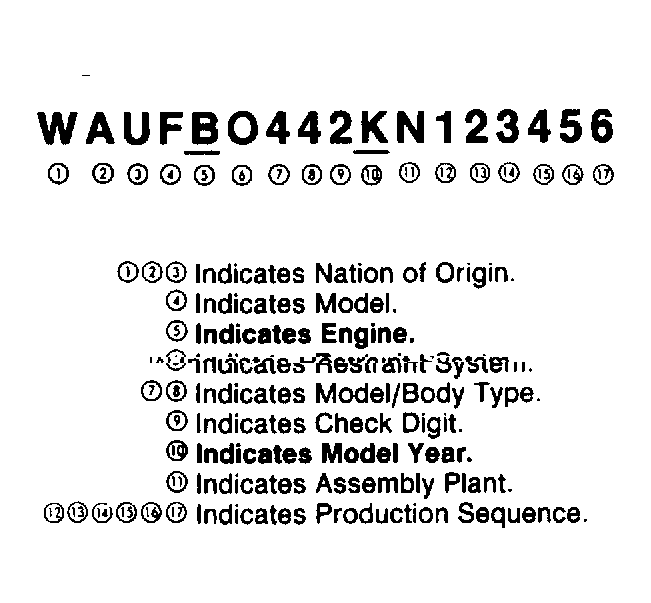

Fig 1: Definition Of VIN Code
G121808
MODEL YEAR VIN CODE APPLICATION

VIN Code Model Year
J 1988
K 1989
L 1990
Fig 2: Engine Code Location
G121423
