Repair and Diagnosis: Electrical: Starters: Description

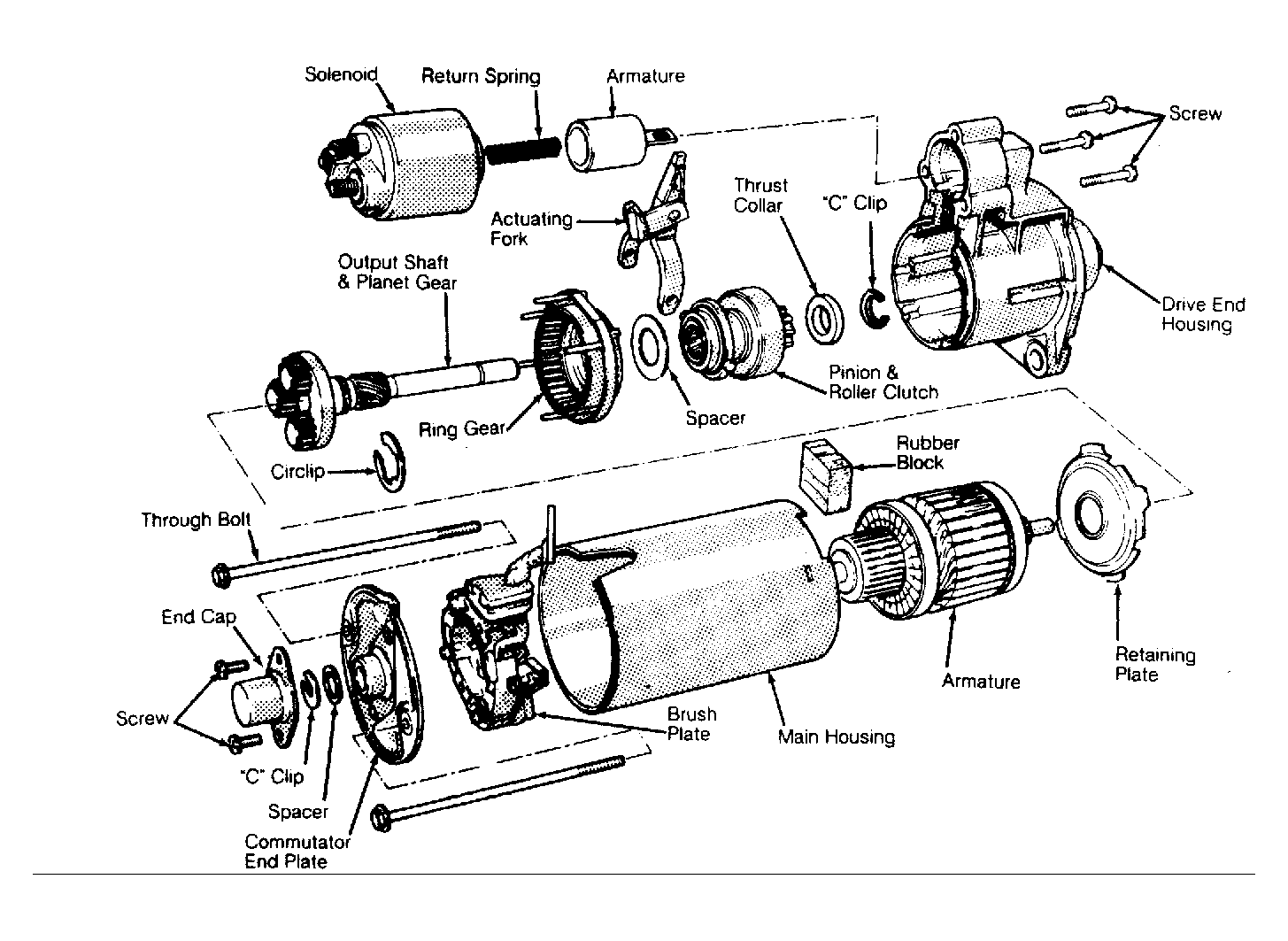

Starter is a brush-type, series-wound electric motor with an overrunning clutch and reduction gearing. See Figure. Field frame is enclosed by commutator end frame and drive bushing. Field frame carries pole shoes and field coils. A splined armature shaft drive end carries drive assembly.
