DTC 00545/2314 - Engine To Transmission Electrical Connection Problem

NOTE: The first set of numbers is displayed as the 5 digit Rapid Data code. Second set of numbers are displayed as 4 Digit Blinking Code. Blinking codes are also displayed by vehicle's Malfunction Indicator Light (MIL).

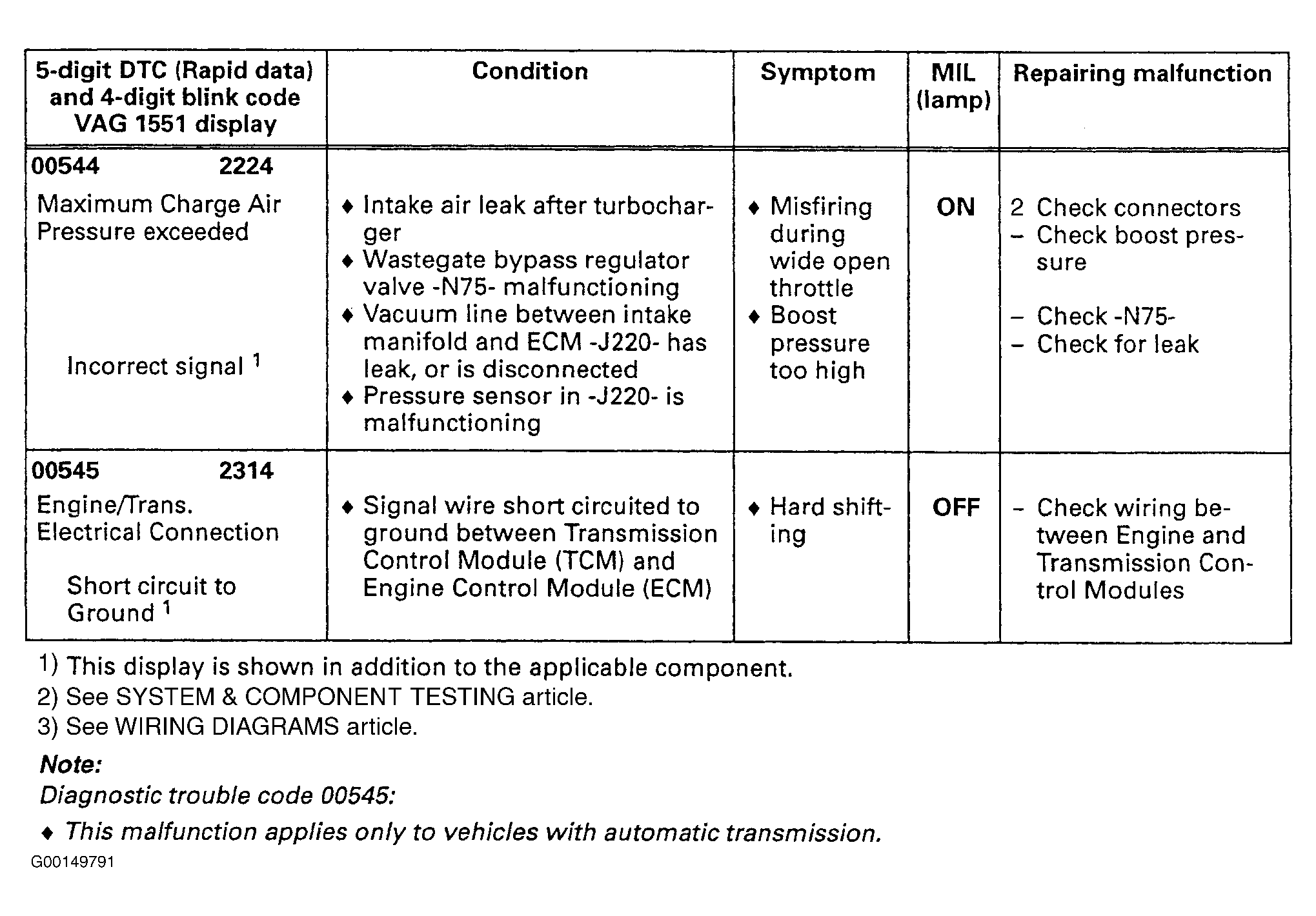

If the scan tool indicates the above code, a range/performance problem in that circuit may exist. To perform test, see Figure .
