Closed Throttle Position (CTP) Switch

NOTE: Closed Throttle Position (CTP) switch is located within Throttle Position (TP) sensor. TP sensor was formally known as a Throttle Valve Potentiometer. CTP switch was formally known as an idle switch.
  1. Remove noise dampener and disconnect harness connector from throttle body assembly. Using DVOM, measure resistance between TP sensor terminals No. 4 and 6. See Fig 1 . Resistance must be zero ohms. Operate throttle slightly. Resistance must be infinite. If specified resistance is not obtained or is obtained only after opening throttle further, adjust CTP switch.
  2. To adjust CTP switch, remove throttle body assembly. Loosen both TP sensor screws. Turn TP sensor counterclockwise until stop is reached. Ensure linkage is not moved. Tighten TP sensor screws in this position. Install throttle body and adjust cable. See Fig 2 .
  3. Check CTP switch again. If specified resistance value is still not obtained, replace TP sensor.

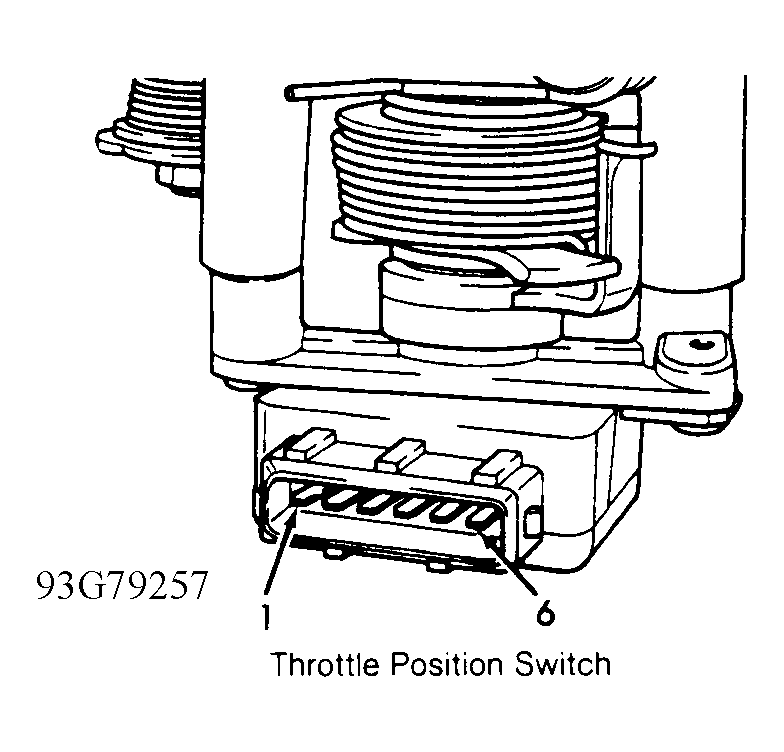

Fig 1: Measuring Throttle Position Switch Resistance
G93G79257Courtesy of AUDI OF AMERICA, INC.

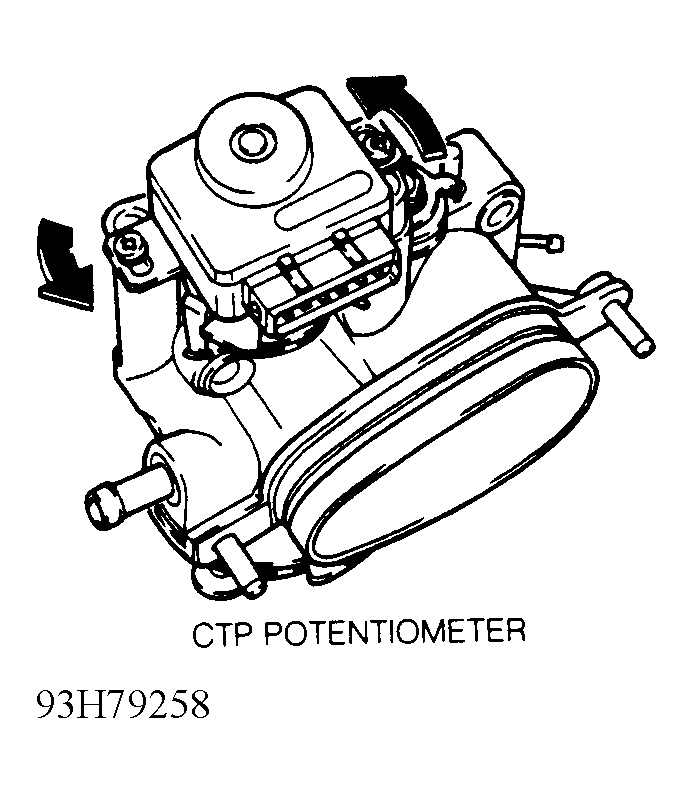

Fig 2: Adjusting Throttle Position Sensor (Throttle Valve Potentiometer)
G93H79258Courtesy of AUDI OF AMERICA, INC.
