KICKDOWN Switch
- Remove noise damper. Disconnect kickdown switch 2-pin harness connector. Using jumpers and a DVOM, measure resistance between terminals No. 1 and 2 of kickdown switch harness connector. Resistance must be infinite.

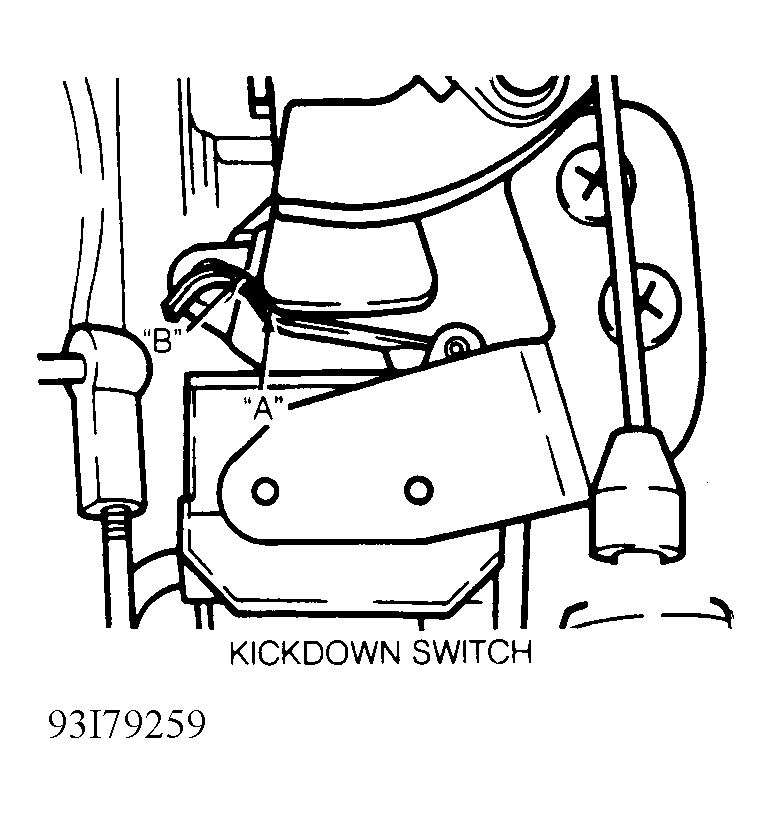

- Slowly depress accelerator pedal. Kickdown switch resistance should go to zero ohms (continuity) in range "A" and "B". See Fig 1

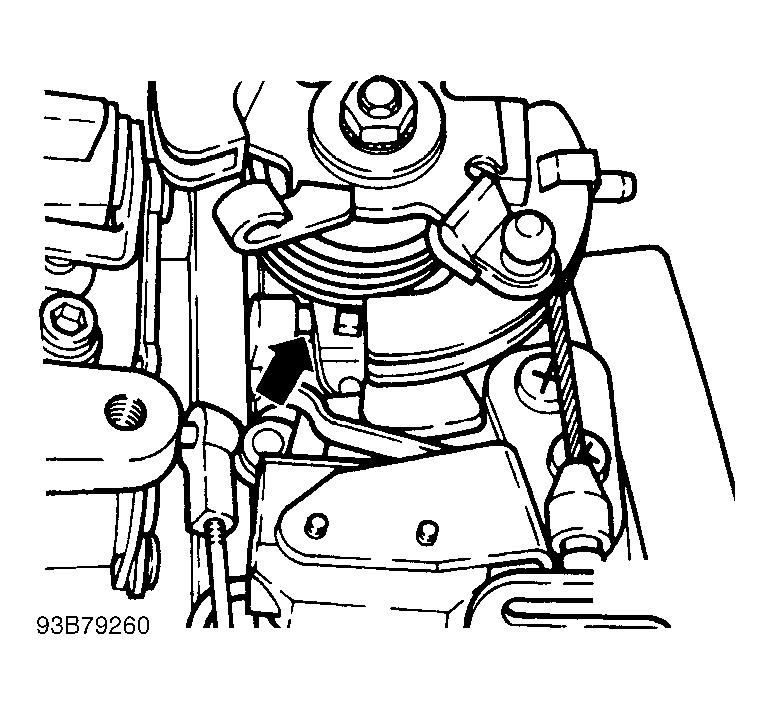

. If continuity does not occur, loosen kickdown switch mounting bolts and move throttle lever by hand to wide open throttle position. See Fig 2

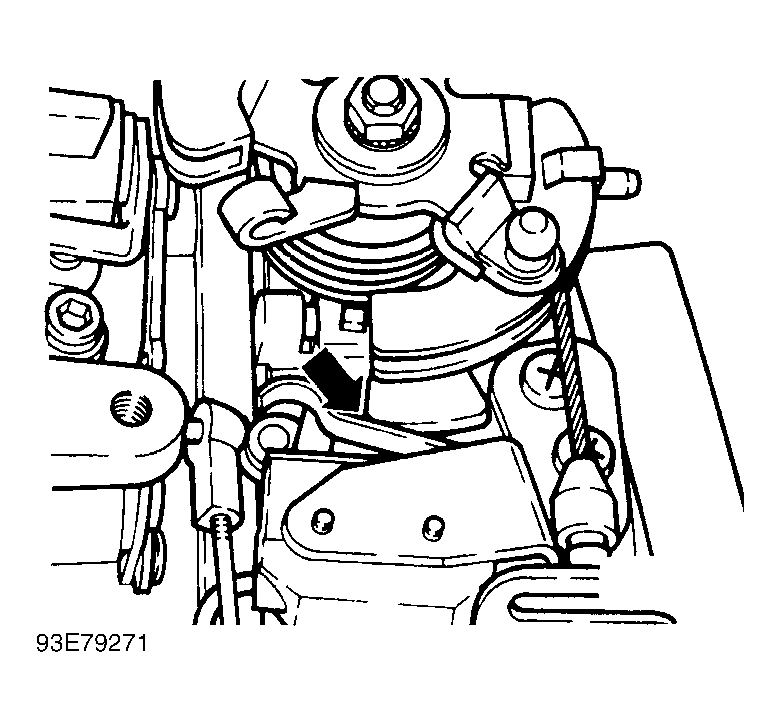

and Fig 3
.

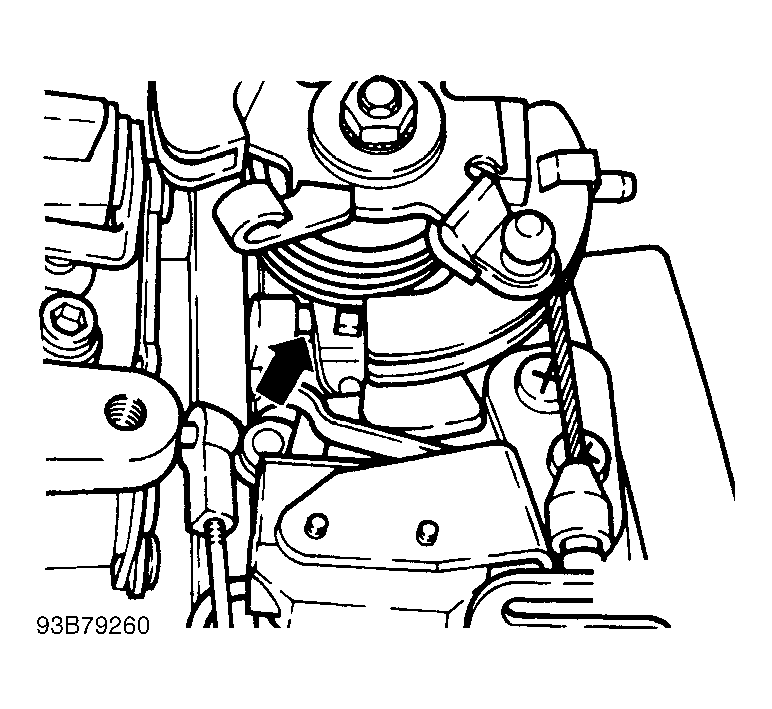

- Adjust kickdown switch so that switch lever contacts throttle cam. See Fig 2

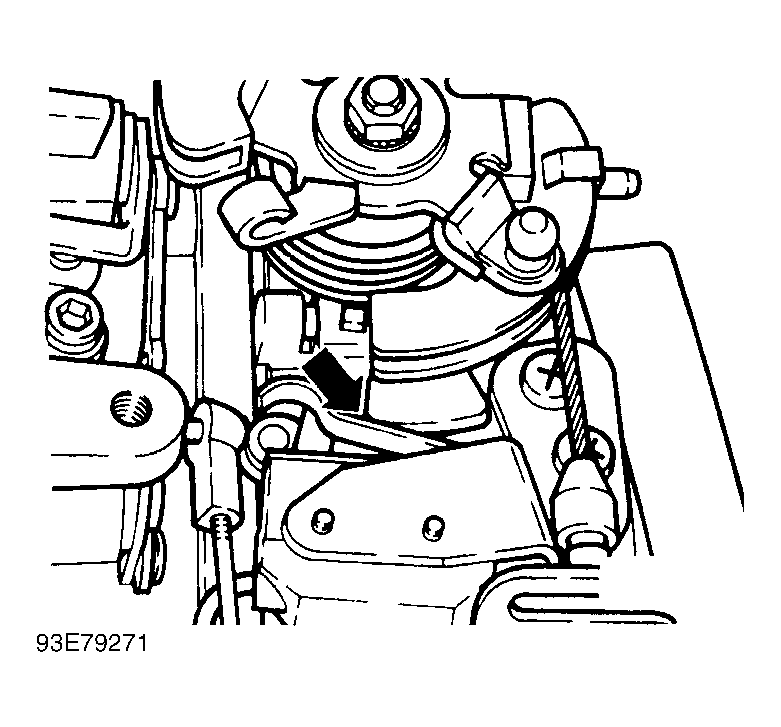

and Fig 3
. Apply locking compound to mounting bolts and tighten.
