Basic Setting Values Checking Tables

The following table shows the required checks to be carried out, if the display values do not coincide with the specified values.

Fig 1: Basic Setting Values Checking (Display Field No. 1)

Courtesy of AUDI OF AMERICA, INC.

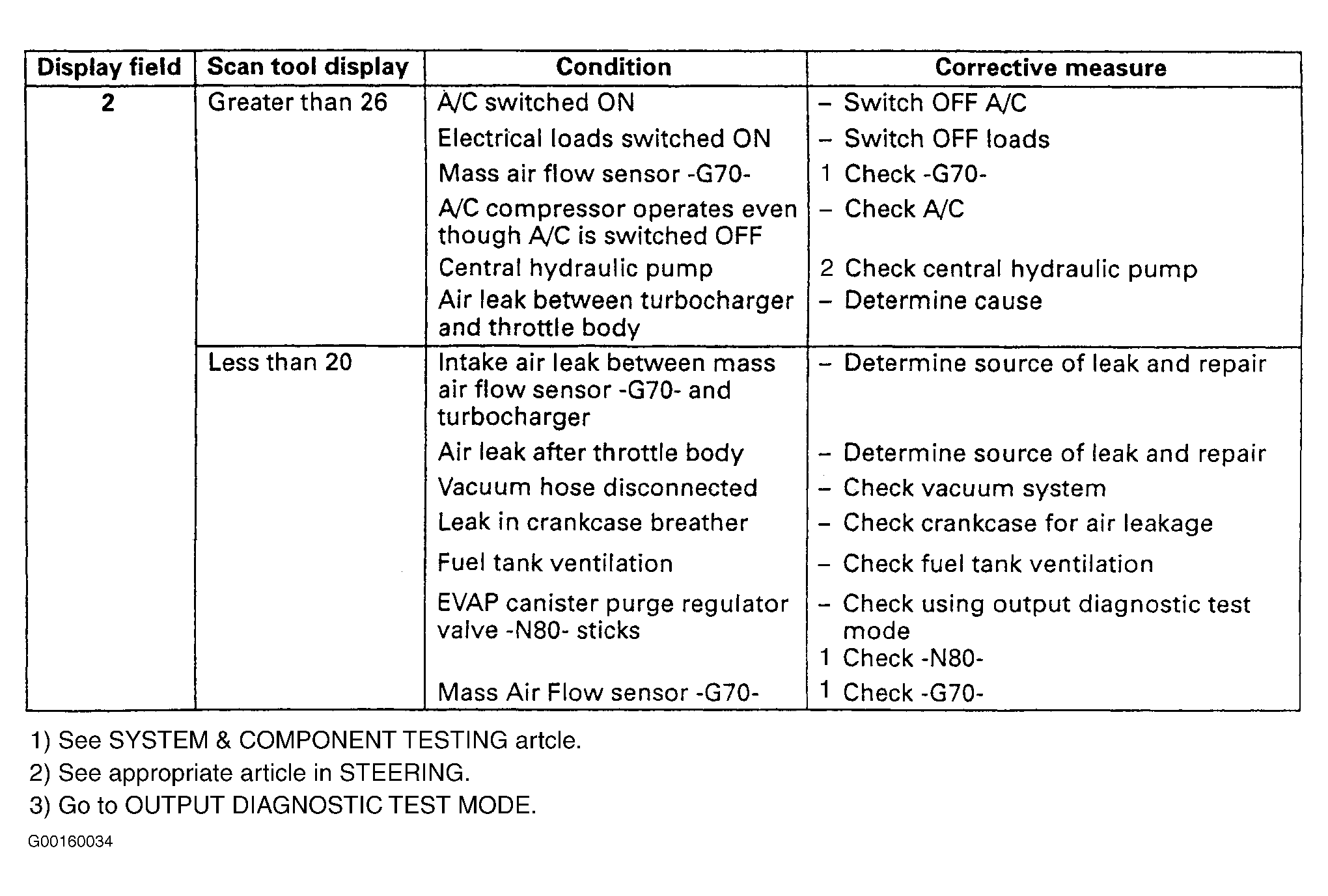

Fig 2: Basic Setting Values Checking (Display Field No. 2)

Courtesy of AUDI OF AMERICA, INC.

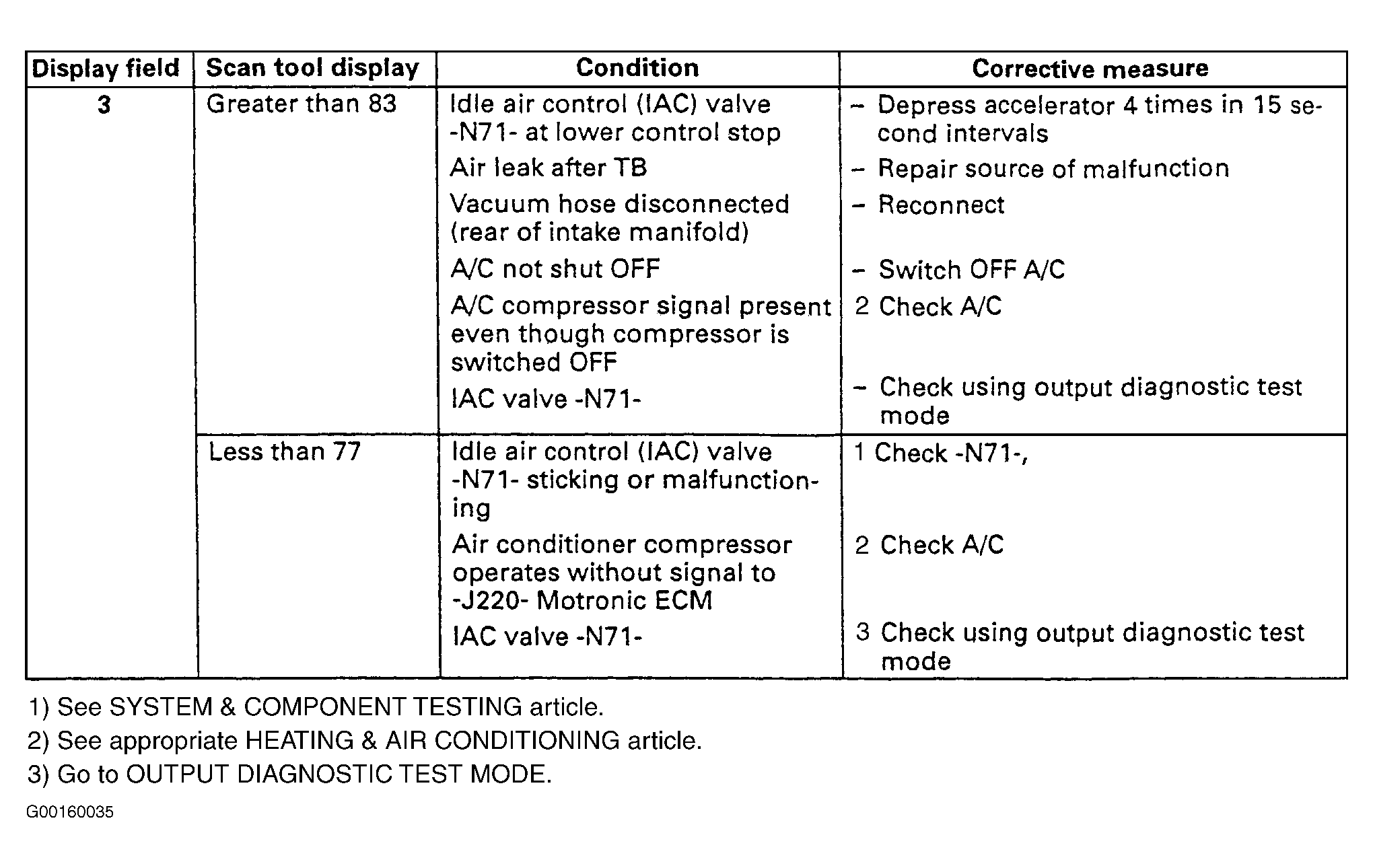

Fig 3: Basic Setting Values Checking (Display Field No. 3)

Courtesy of AUDI OF AMERICA, INC.

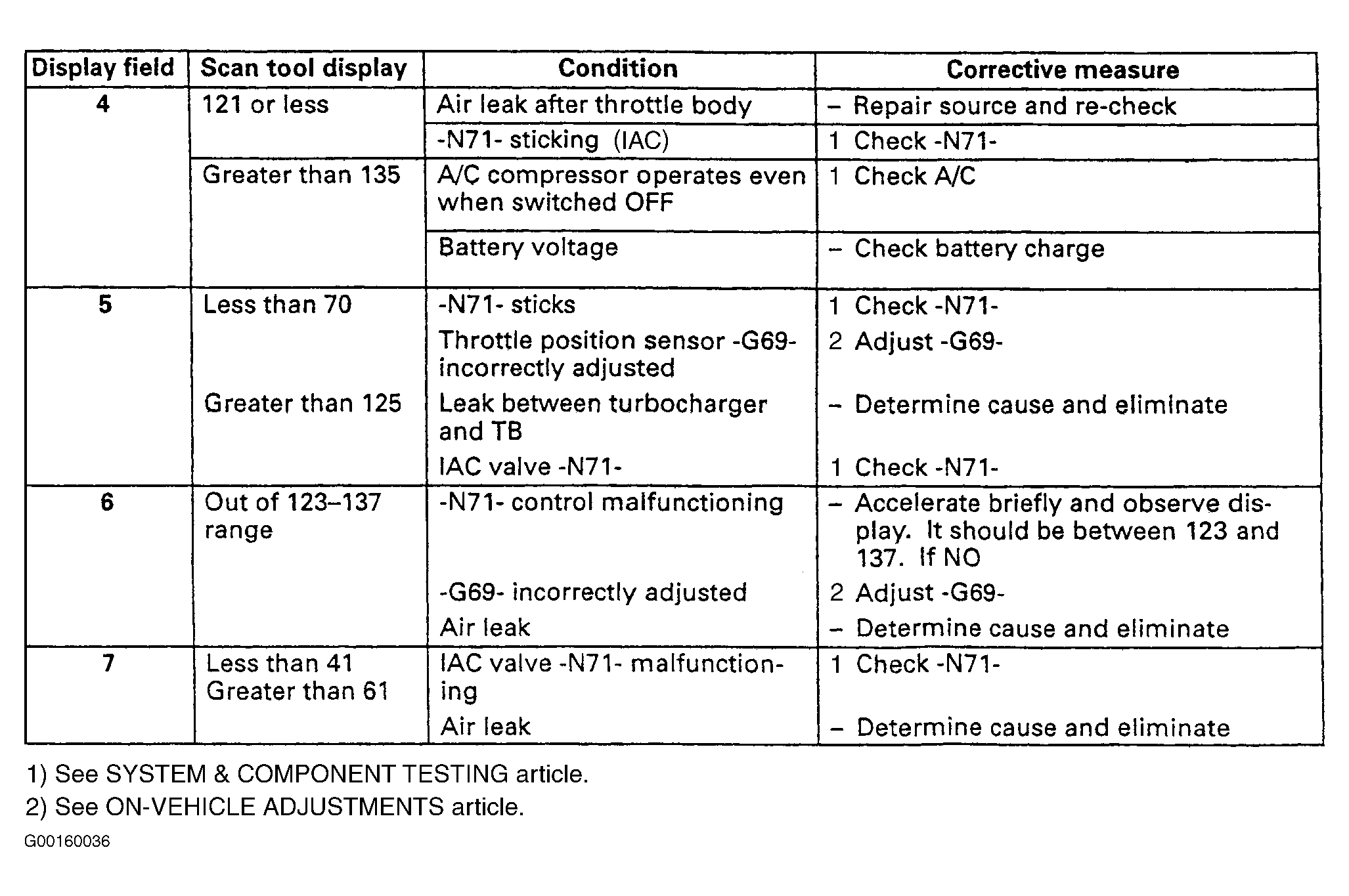

Fig 4: Basic Setting Values Checking (Display Fields No. 4, 5, 6 & 7)

Courtesy of AUDI OF AMERICA, INC.

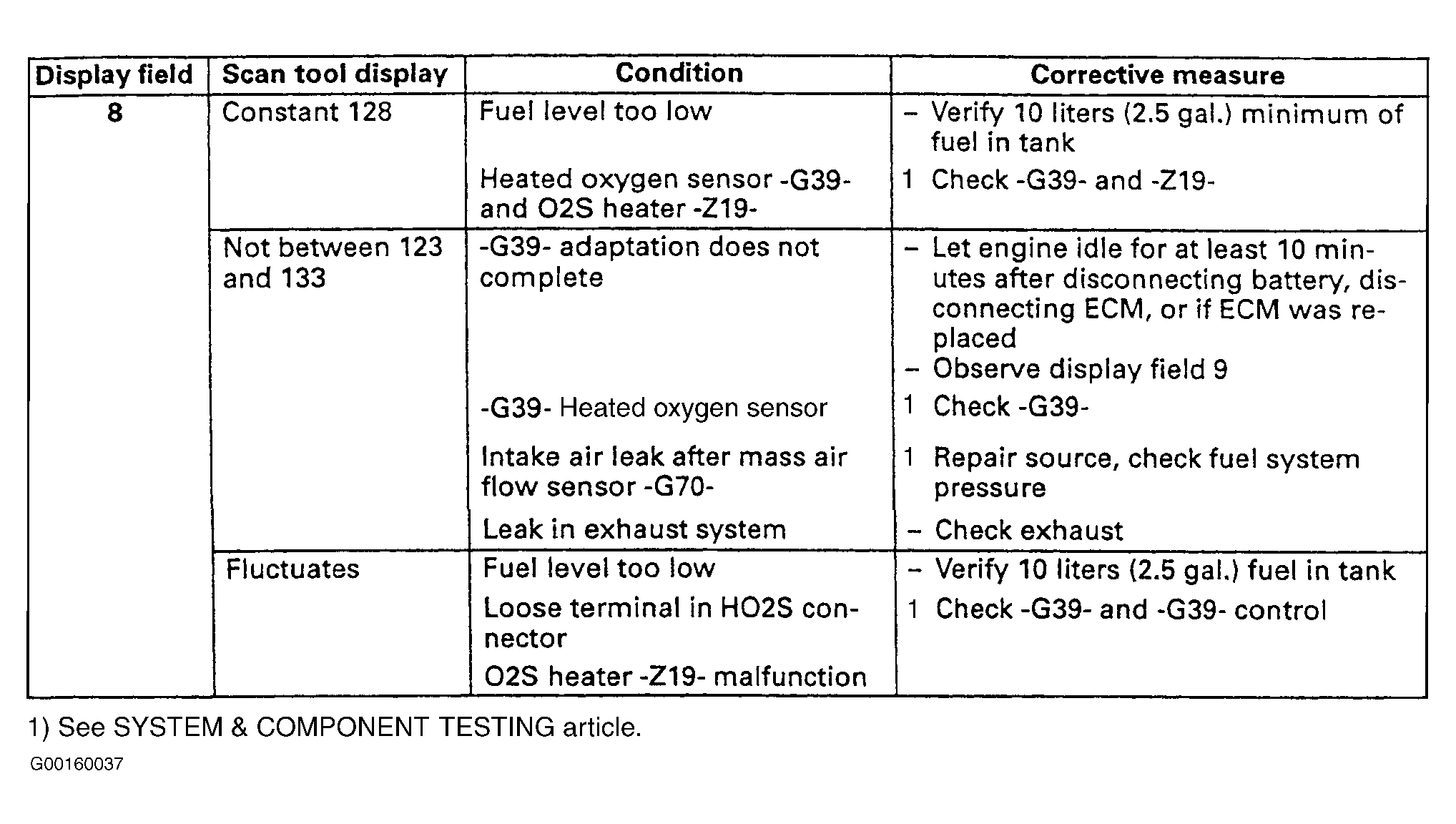

Fig 5: Basic Setting Values Checking (Display Field No. 8)

Courtesy of AUDI OF AMERICA, INC.

Fig 6: Basic Setting Values Checking (Display Fields No. 9 & 10)

Courtesy of AUDI OF AMERICA, INC.
