Reading/Measuring Value Block (Function 08): Notes

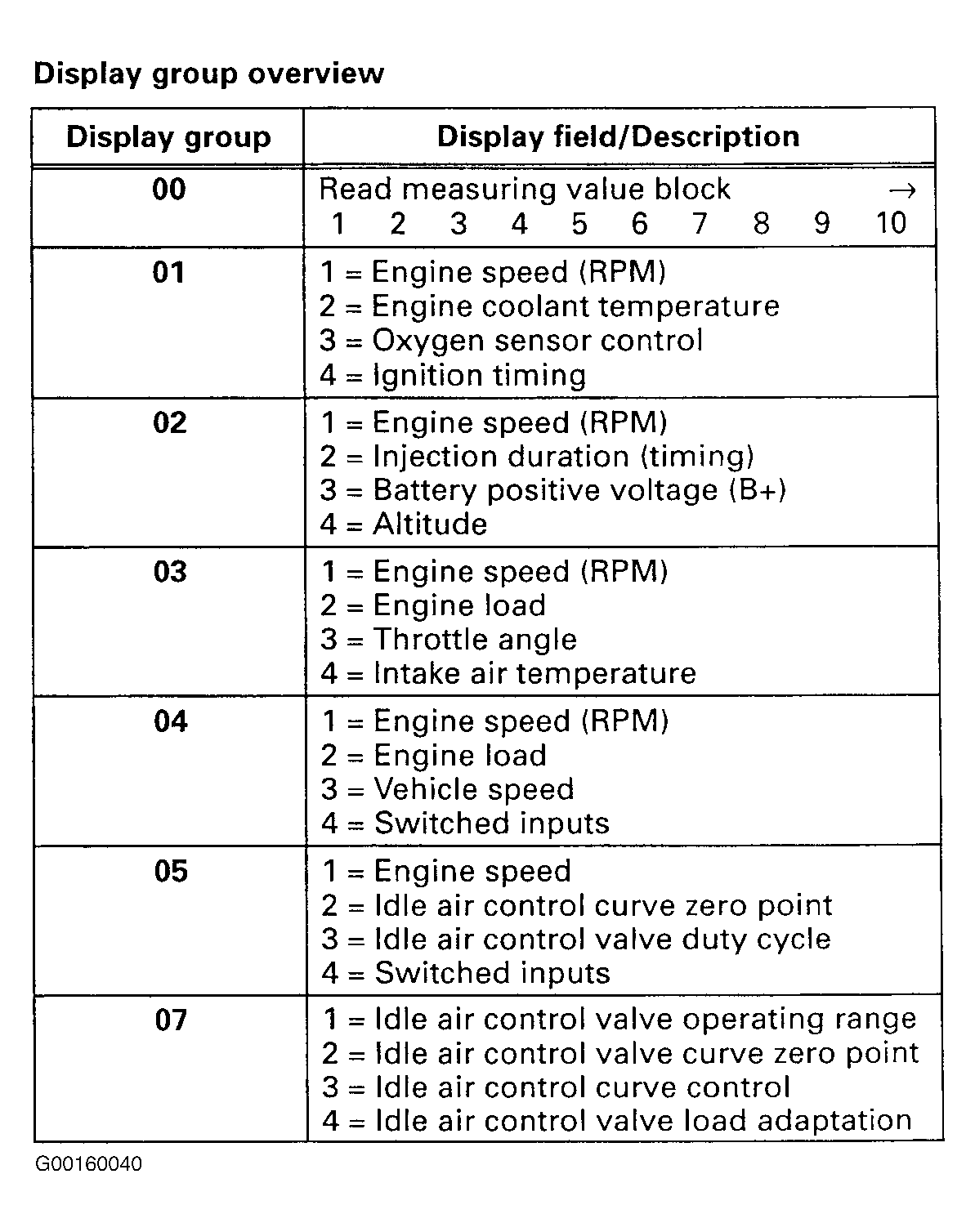

NOTE: For help in identifying Display Group Number Breakdown and Display Group Number Overview information charts (tables), refer to illustrations. See Figure -Figure

To read the measurement block, the engine must be running. In contrast to the Basic Setting mode, the EVAP canister purge regulator valve is not continuously connected while the measurement block is being read.

Measuring block values are displayed in 10 display fields (display group 00) or in four display fields (display groups 01 to 09). When the four display group display is shown, the physical units such as RPM or coolant temperature are also displayed.
