Fuel Evaporative System: Notes

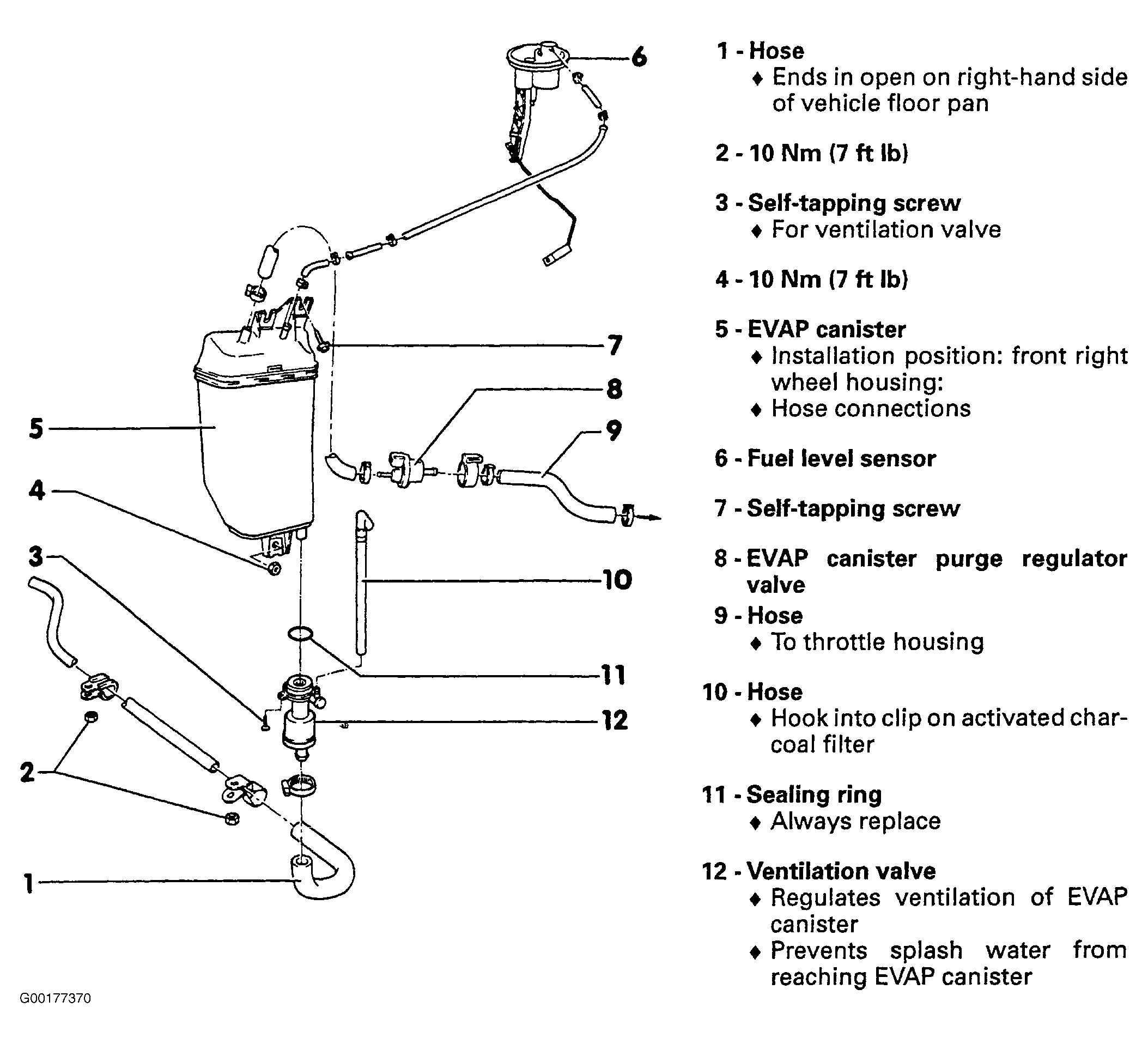

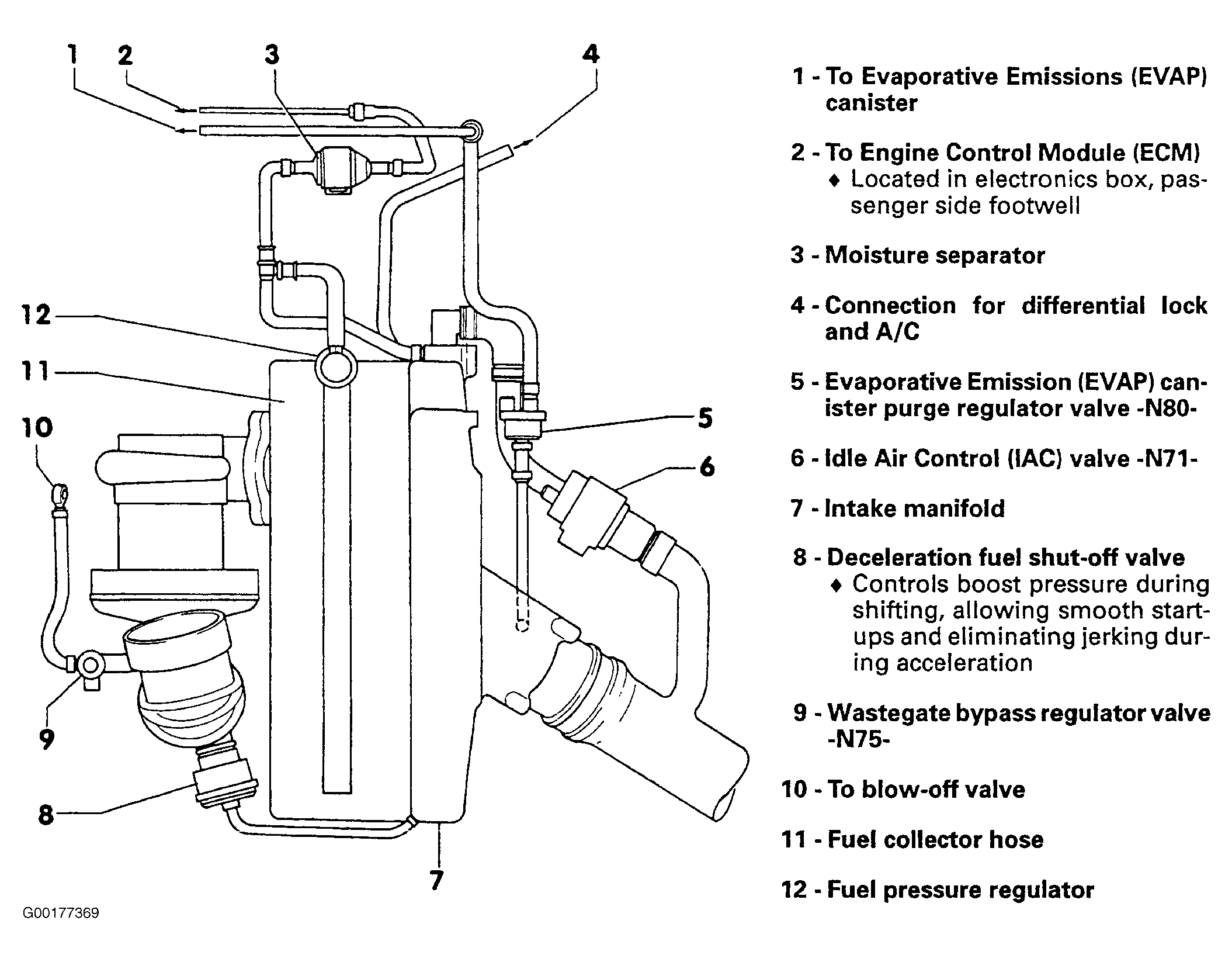

Use illustrations for fuel evaporative and crankcase ventilation systems component locations. See Figure and Figure .
