Component Location

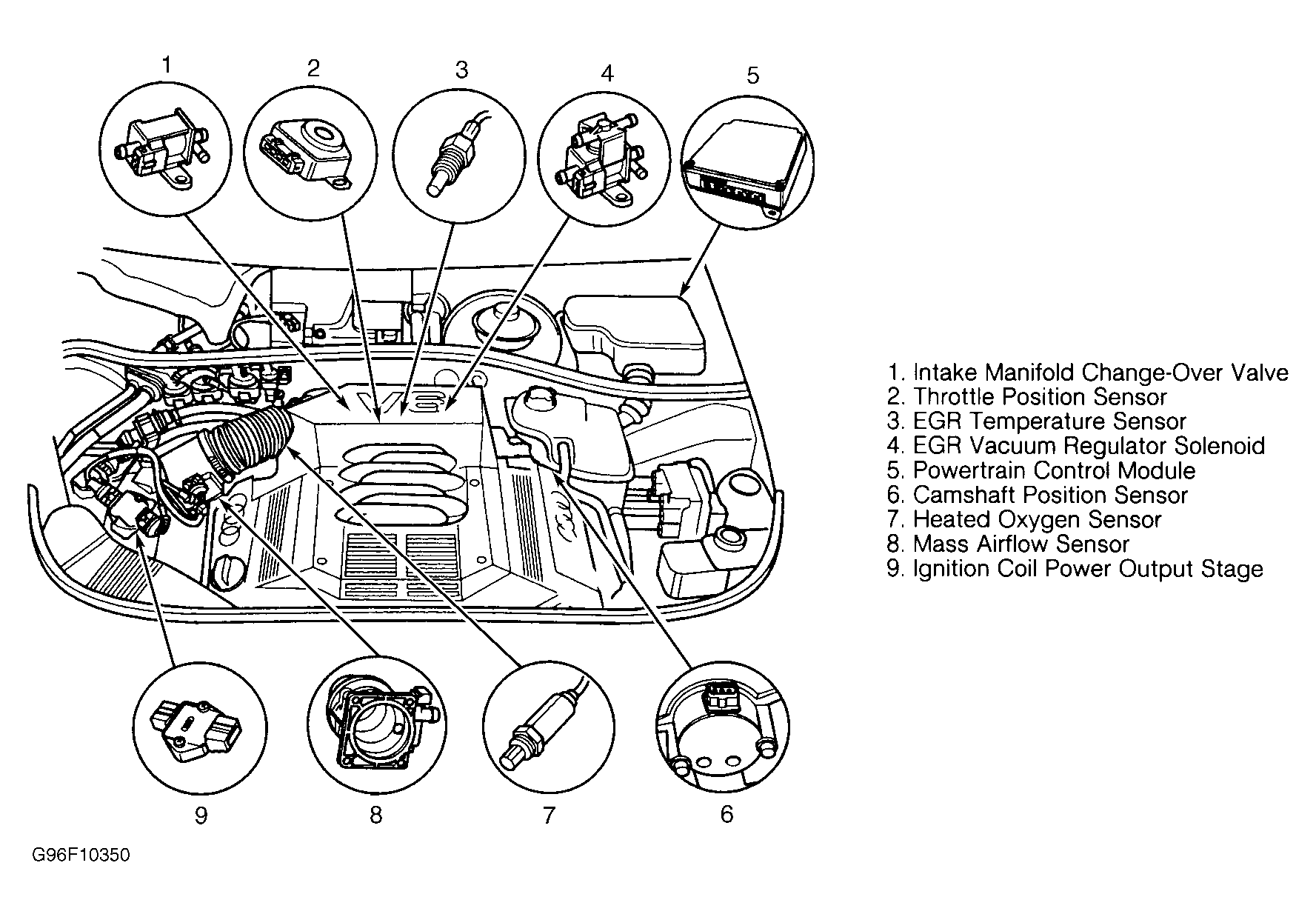

Fig 1: Locating Engine Compartment Components (A4 - 1 Of 2)

Courtesy of AUDI OF AMERICA, INC.

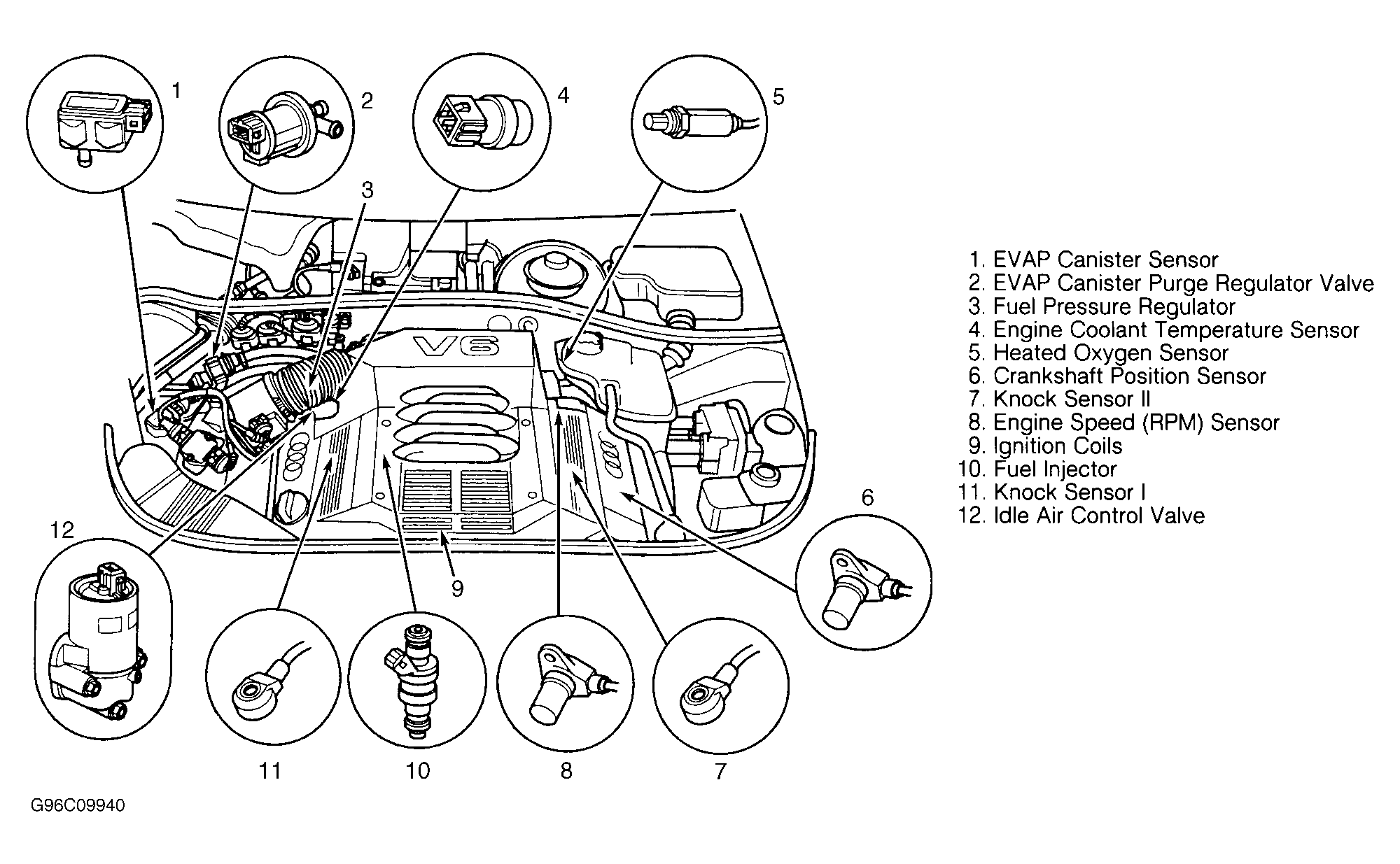

Fig 2: Locating Engine Compartment Components (A4 - 2 Of 2)

Courtesy of AUDI OF AMERICA, INC.

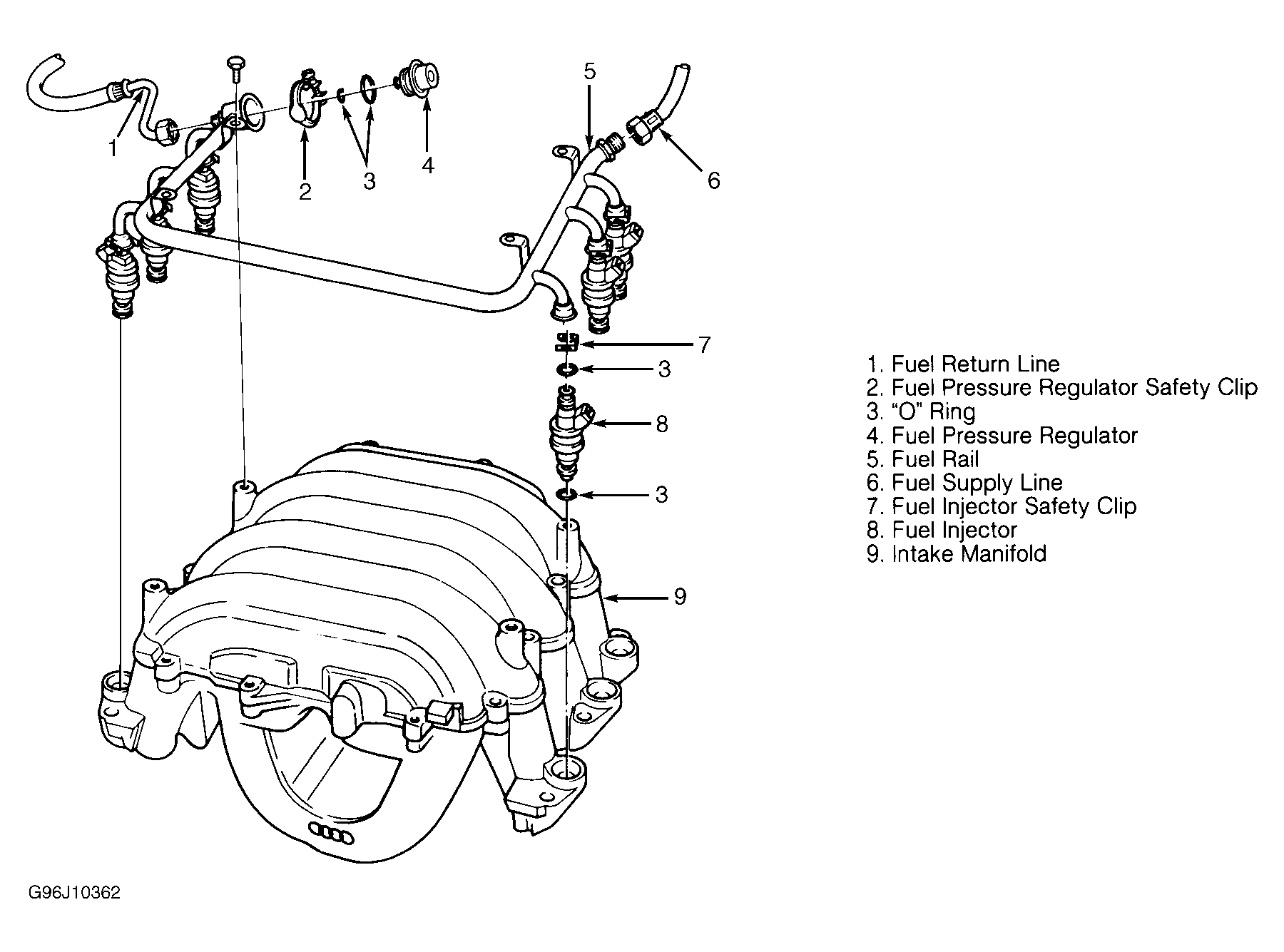

Fig 3: Locating Fuel System Components (A4)

Courtesy of AUDI OF AMERICA, INC.

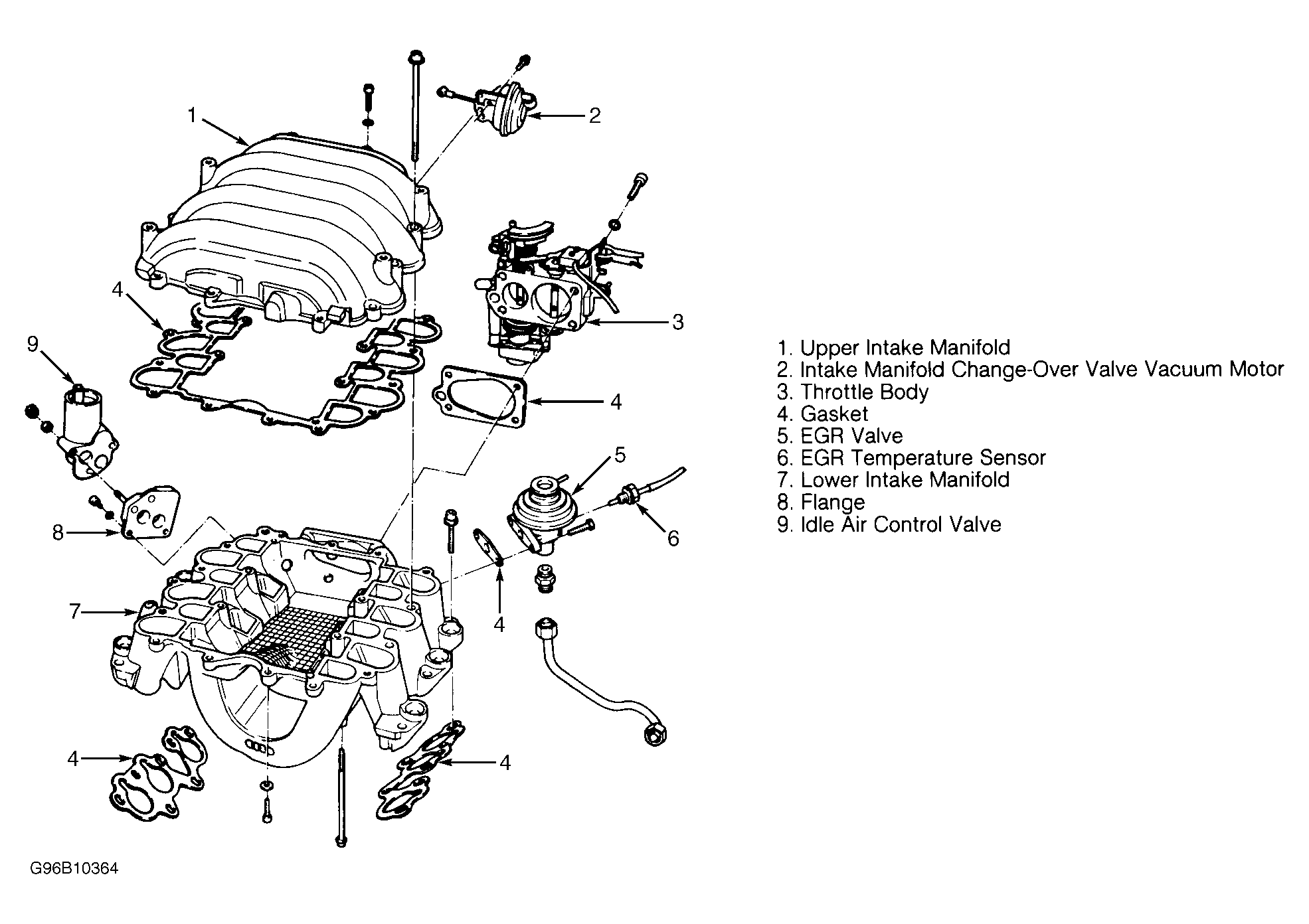

Fig 4: Locating Intake Manifold Components (A4)

Courtesy of AUDI OF AMERICA, INC.
