Hydraulic Unit: Installation

To install, reverse removal procedure. Ensure correct version hydraulic unit is installed. Tighten bolts to specification and Bleed entire brake system. See the following:

• TORQUE SPECIFICATIONS  .
• BLEEDING BRAKE SYSTEM  .

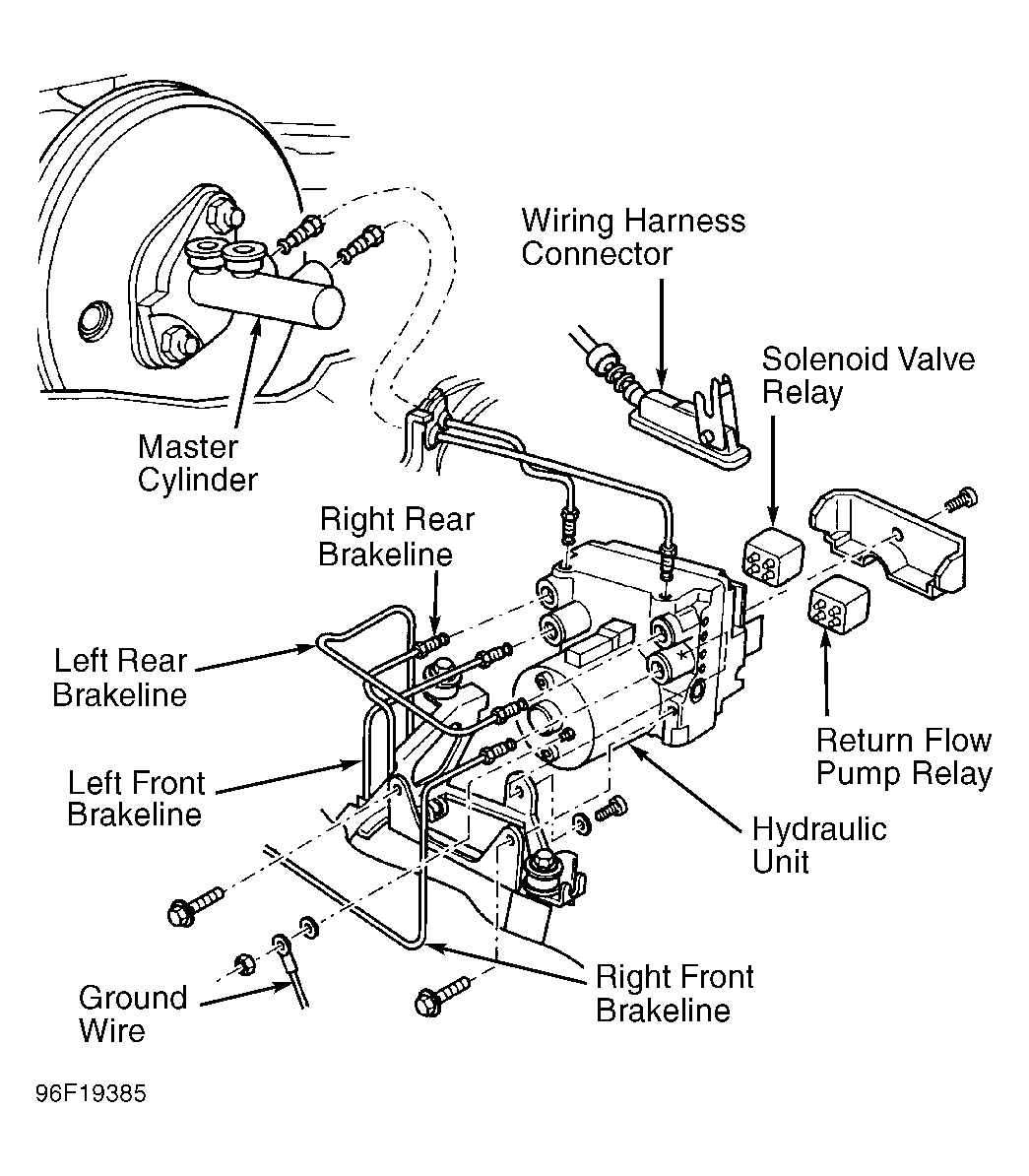

Fig 1: Exploded View Of Hydraulic Unit

Courtesy of AUDI OF AMERICA, INC.
