Connector Identification

CONNECTOR IDENTIFICATION DIRECTORY

Connector See Figure
Camshaft Position Sensor Connector Terminals Fig 1
ECT Sensor Connector Terminals Fig 2
ECT Sensor Terminals Fig 3
EGR Temperature Sensor Connector Terminals Fig 4
EGR Vacuum Regulator Solenoid Valve Connector
(Harness Side) Terminals Fig 4
Engine Speed Sensor Connector (Harness Side) Terminals Fig 5
Engine Speed Sensor Connector (Sensor Side) Terminals Fig 1
EVAP Canister Purge Valve Harness Connector Terminals Fig 4
EVAP Differential Pressure Sensor Connector
(Harness Side) Terminals Fig 1
EVAP Leak Detection Pump (Component Side) Fig 6
EVAP Leak Detection Pump (Harness Side) Fig 7
Fuel Injector Harness Connector Fig 4
HO2S Black 2-Pin Heater Connector Fig 4
HO2S Connector (Harness Side) Terminals Fig 7
HO2S Connector (Sensor Side) Terminals Fig 8
IAC Valve Connector Terminals Fig 9
Ignition Coil Power Output Stage 3-Pin Connector
(Harness Side) Terminals Fig 1
Ignition Coil Power Output Stage 4-Pin Connector
(Harness Side) Terminals Fig 10
Intake Manifold Change-Over Valve Connector Terminals Fig 4
Knock Sensor Connector (Harness Side) Terminals Fig 1
Knock Sensor Connector (Sensor Side) Terminals Fig 5
MAF Sensor Connector Terminals Fig 1
Secondary Air Injection Solenoid Valve Harness Connector Fig 4
TP Sensor Connector Terminals Fig 12
TP Sensor Terminals Fig 13

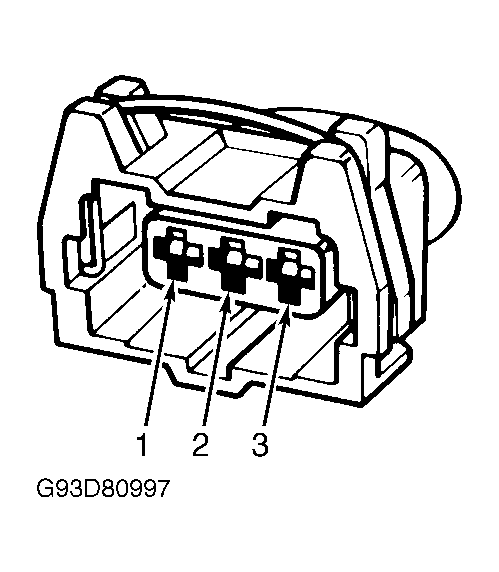

Fig 1: 3-Pin Harness Connector
G93D80997Courtesy of AUDI OF AMERICA, INC.

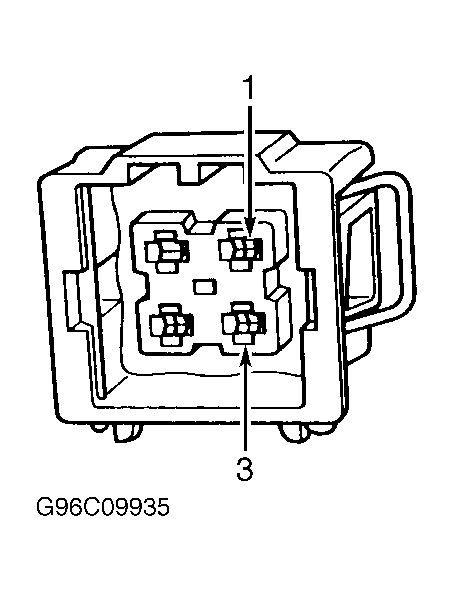

Fig 2: ECT Sensor Connector Terminals
G96C09935Courtesy of AUDI OF AMERICA, INC.

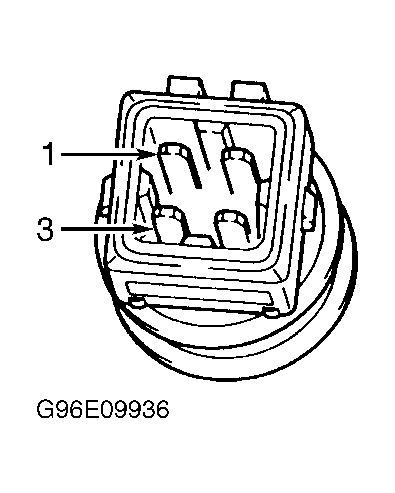

Fig 3: ECT Sensor Terminals
G96E09936Courtesy of AUDI OF AMERICA, INC.
Fig 4: 2-Pin Harness Connector
G96D09931Courtesy of AUDI OF AMERICA, INC.

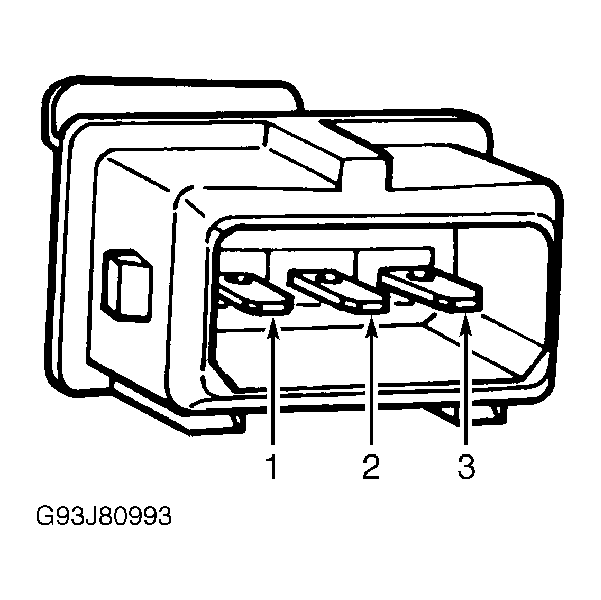

Fig 5: 3-Pin Connector (Sensor Side)
G93J80993Courtesy of AUDI OF AMERICA, INC.

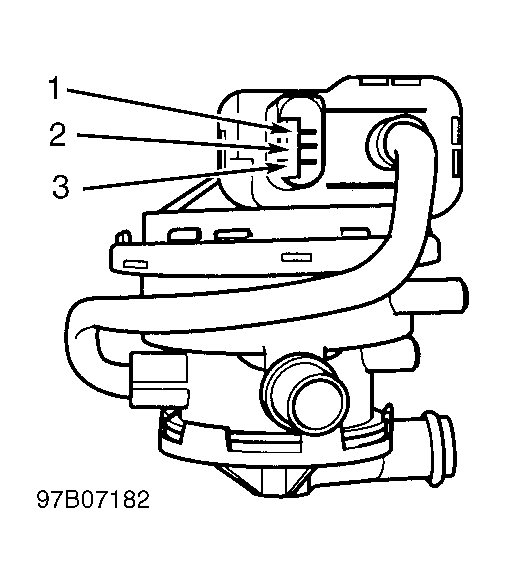

Fig 6: EVAP Leak Detection Pump (Component Side)
G97B07182Courtesy of AUDI OF AMERICA, INC.

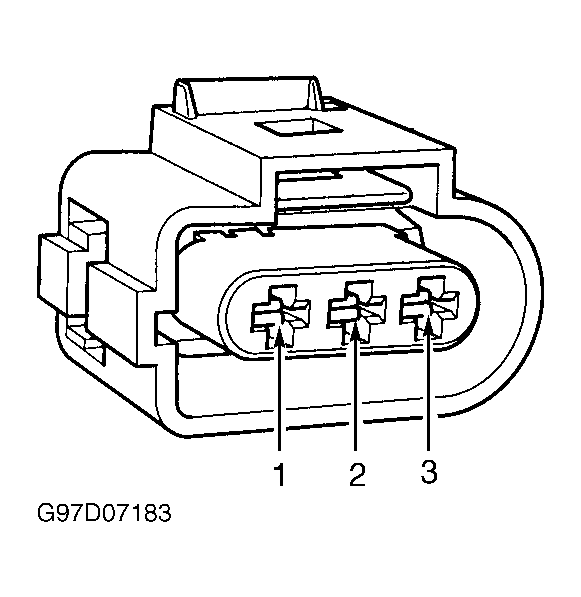

Fig 7: EVAP Leak Detection Pump (Harness Side)
G97D07183Courtesy of AUDI OF AMERICA, INC.

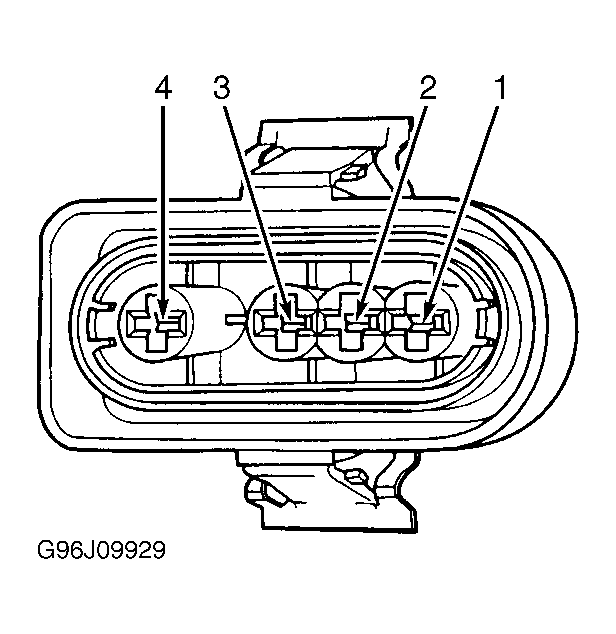

Fig 8: HO2S Connector (Harness Side) Terminals
G96J09929Courtesy of AUDI OF AMERICA, INC.

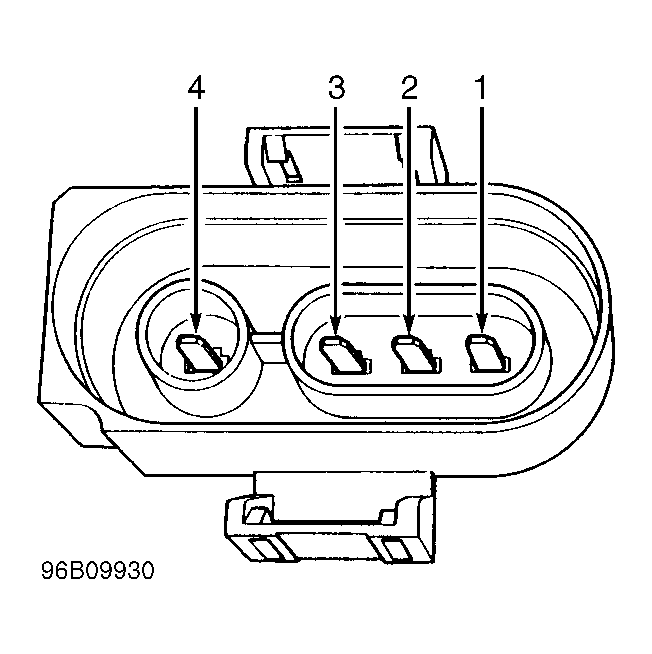

Fig 9: HO2S Connector (Sensor Side) Terminals
G96B09930Courtesy of AUDI OF AMERICA, INC.

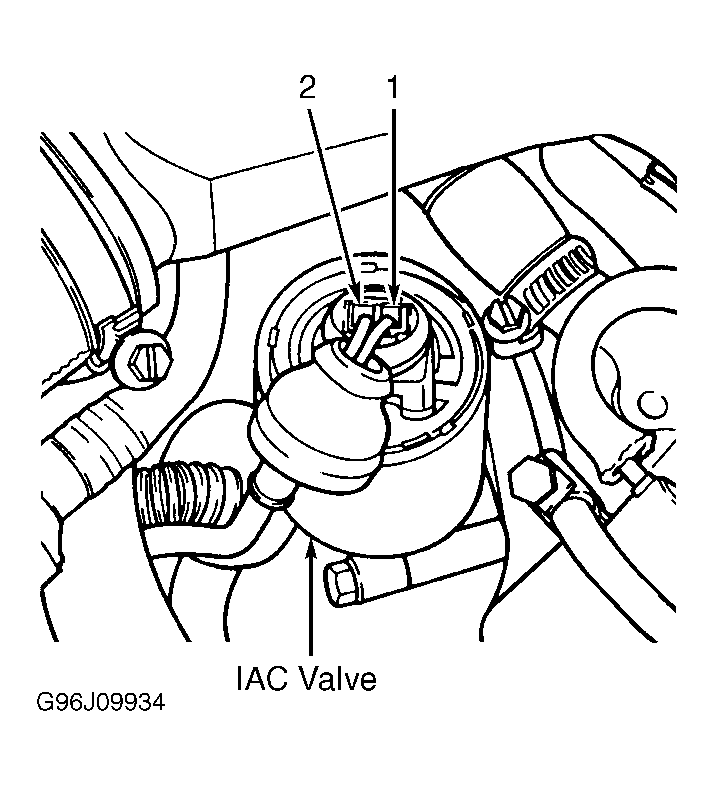

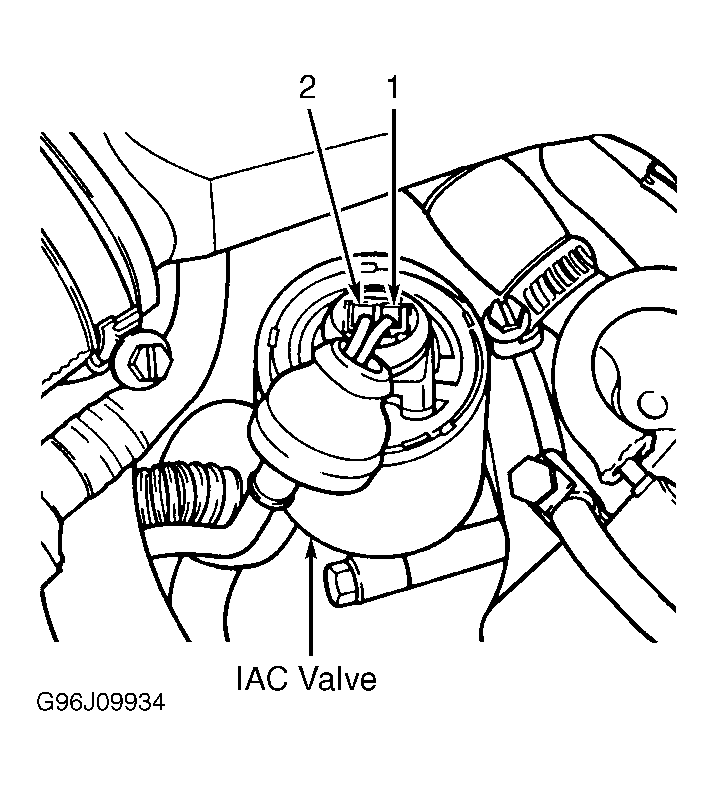

Fig 10: IAC Valve Connector Terminals
G96J09934Courtesy of AUDI OF AMERICA, INC.

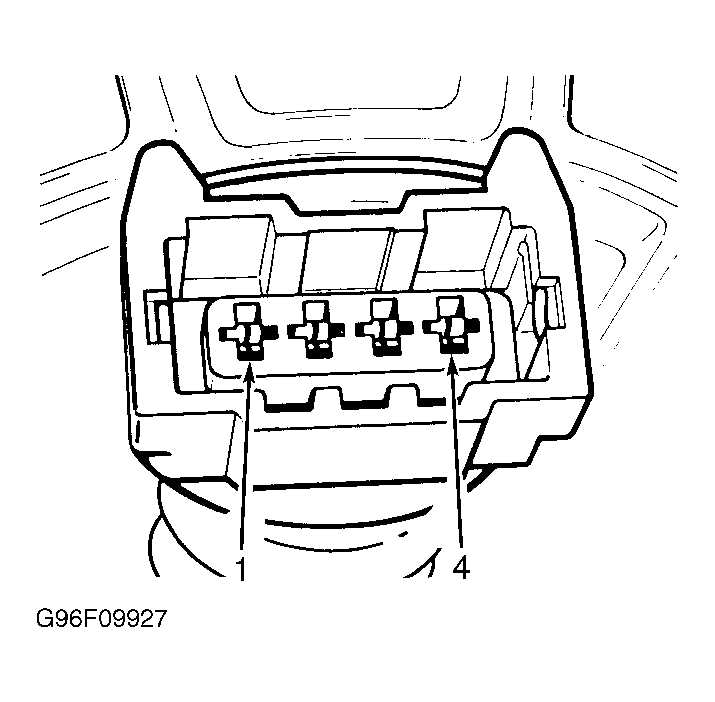

Fig 11: Ignition Coil Power Output Stage 4-Pin Connector (Harness Side) Terminals
G96F09927Courtesy of AUDI OF AMERICA, INC.

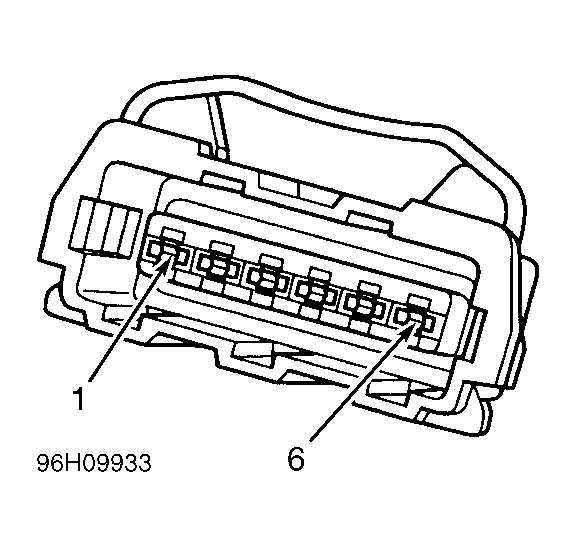

Fig 12: TP Sensor Connector Terminals
G96H09933Courtesy of AUDI OF AMERICA, INC.

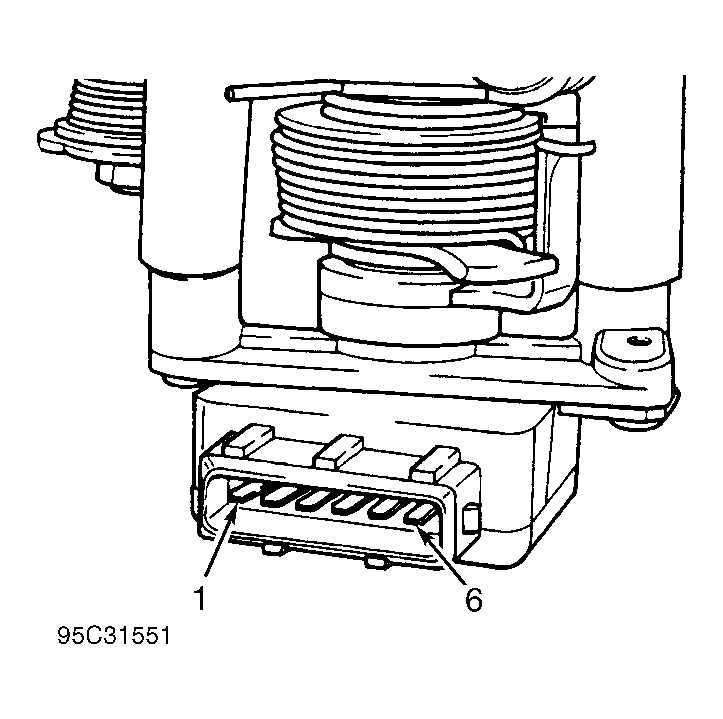

Fig 13: TP Sensor Terminals
G95C31551Courtesy of AUDI OF AMERICA, INC.
