Gear Selector

Move gear selector to Neutral. Energize solenoid and ensure lower part of gear selector is centered over solenoid. Install top of gear selector housing. Position gear selector housing so gear selector is centered between Reverse and Drive. See Fig 1 . Tighten gear selector housing screws.

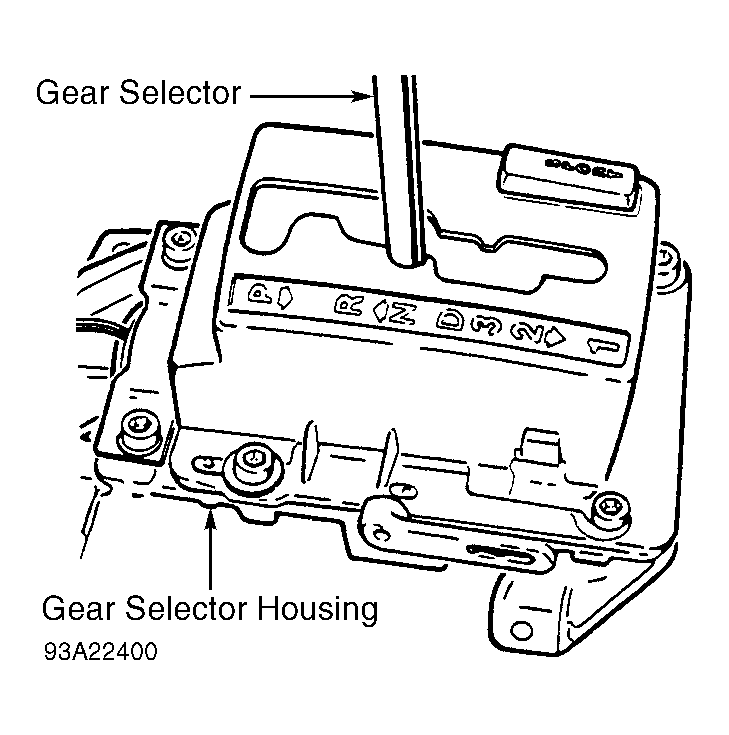

Fig 1: Adjusting Gear Selector Position

Courtesy of AUDI OF AMERICA, INC.
