Ignition Interlock Cable

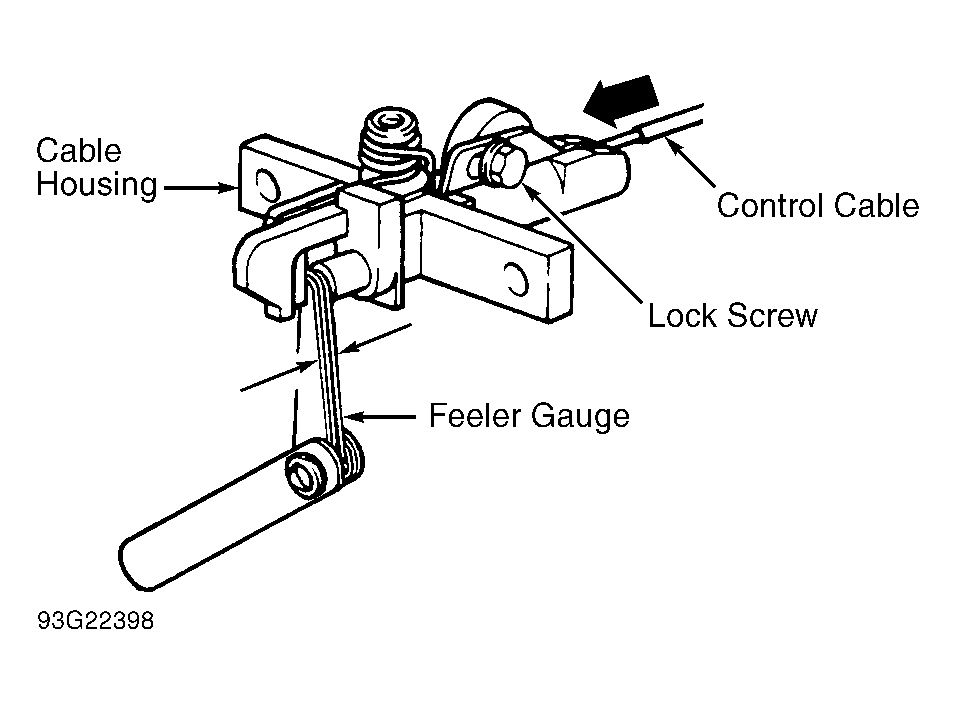

- Remove cable housing mounting screws at gear selector console. Loosen lock screw. Move gear selector to "D" position. Turn ignition on. Move control cable until a .060" (1.5 mm) feeler gauge fits between lock flap and lock pin. See Fig 1 .
- Turn ignition off. Turn ignition on. Ensure gap is still .060" (1.5 mm). Turn ignition off and on several times and recheck gap. Install cable housing to gear selector console.
