Diagnostic Trouble Code (DTC) table
NOTE:

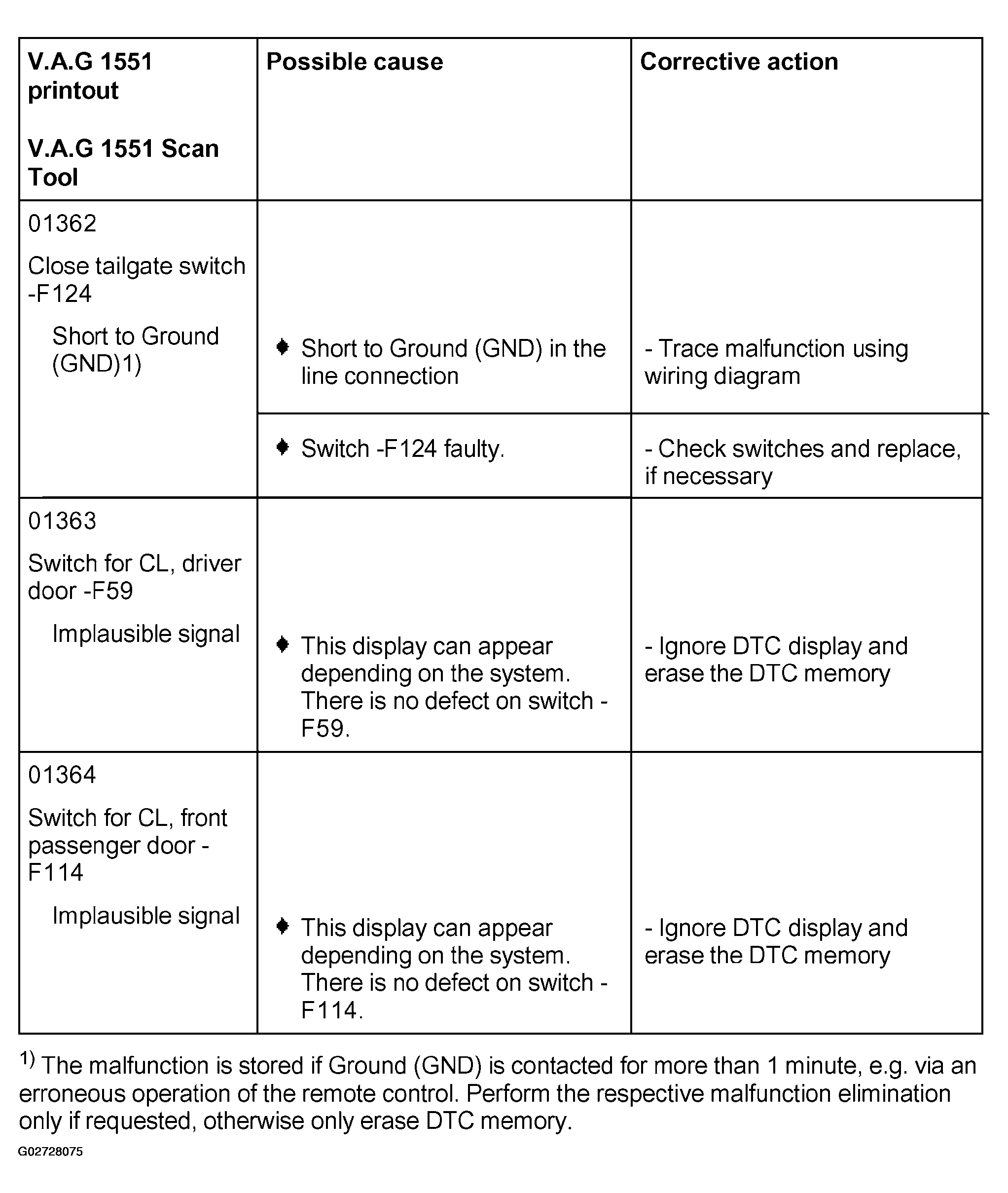

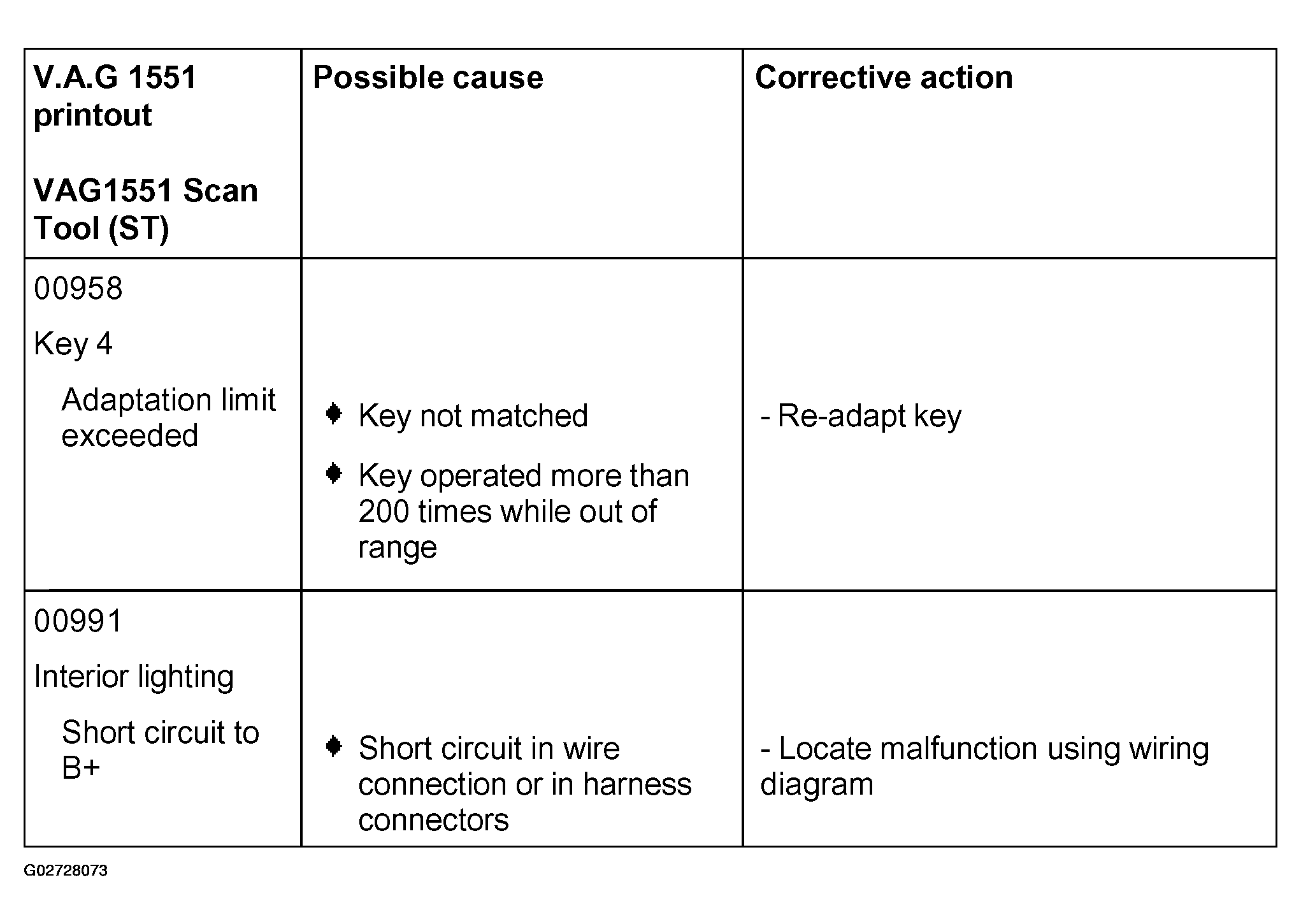

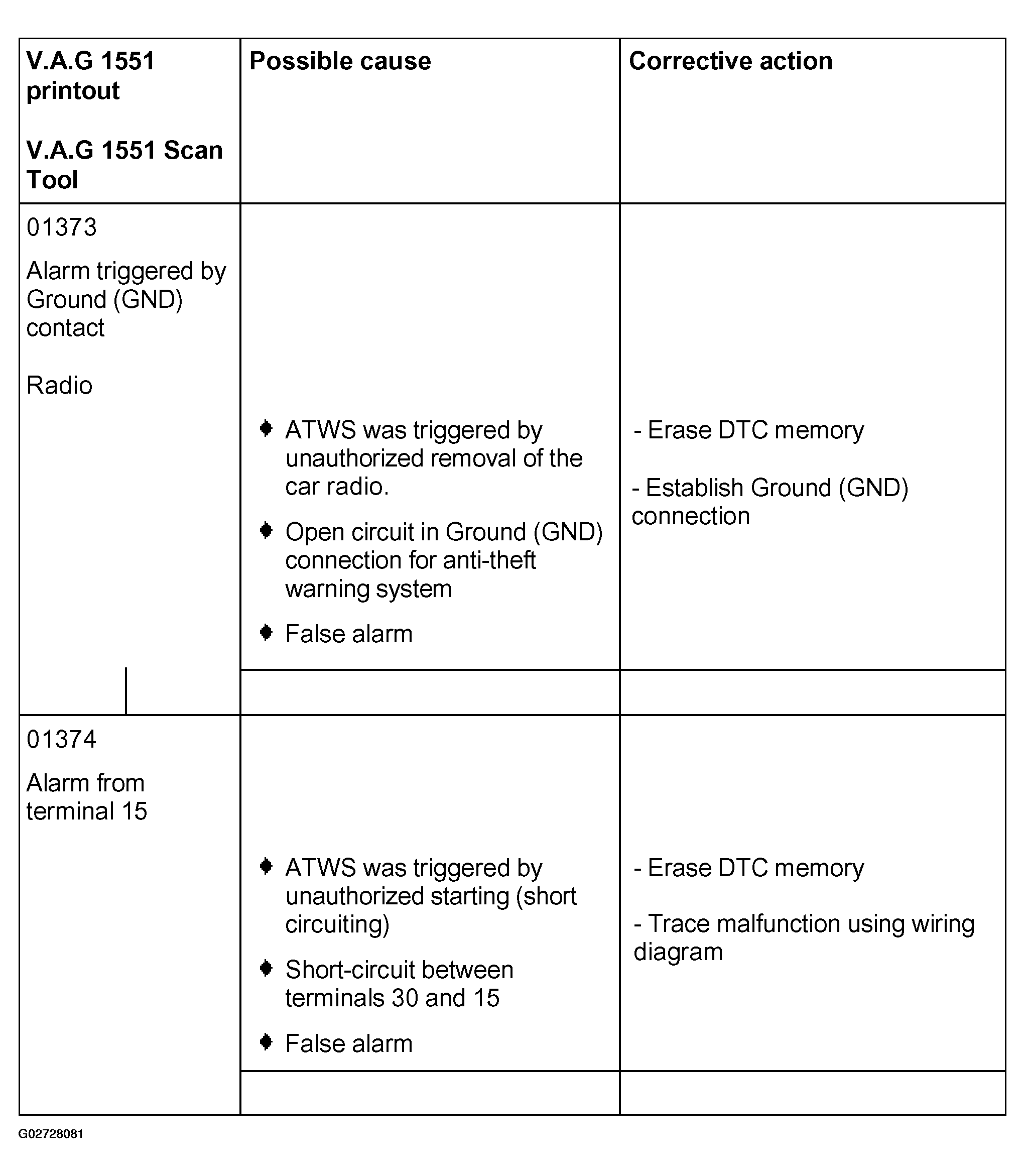

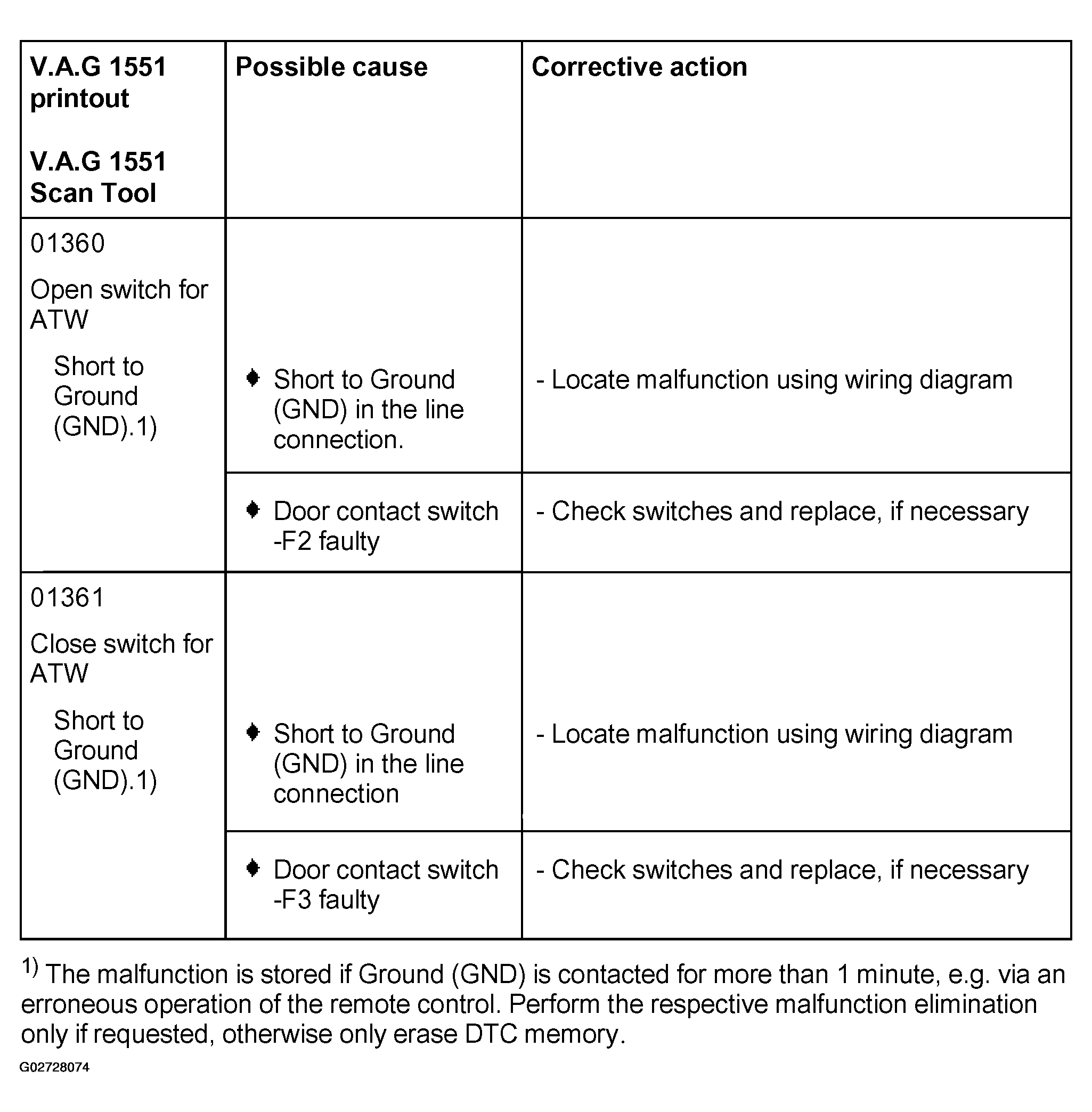

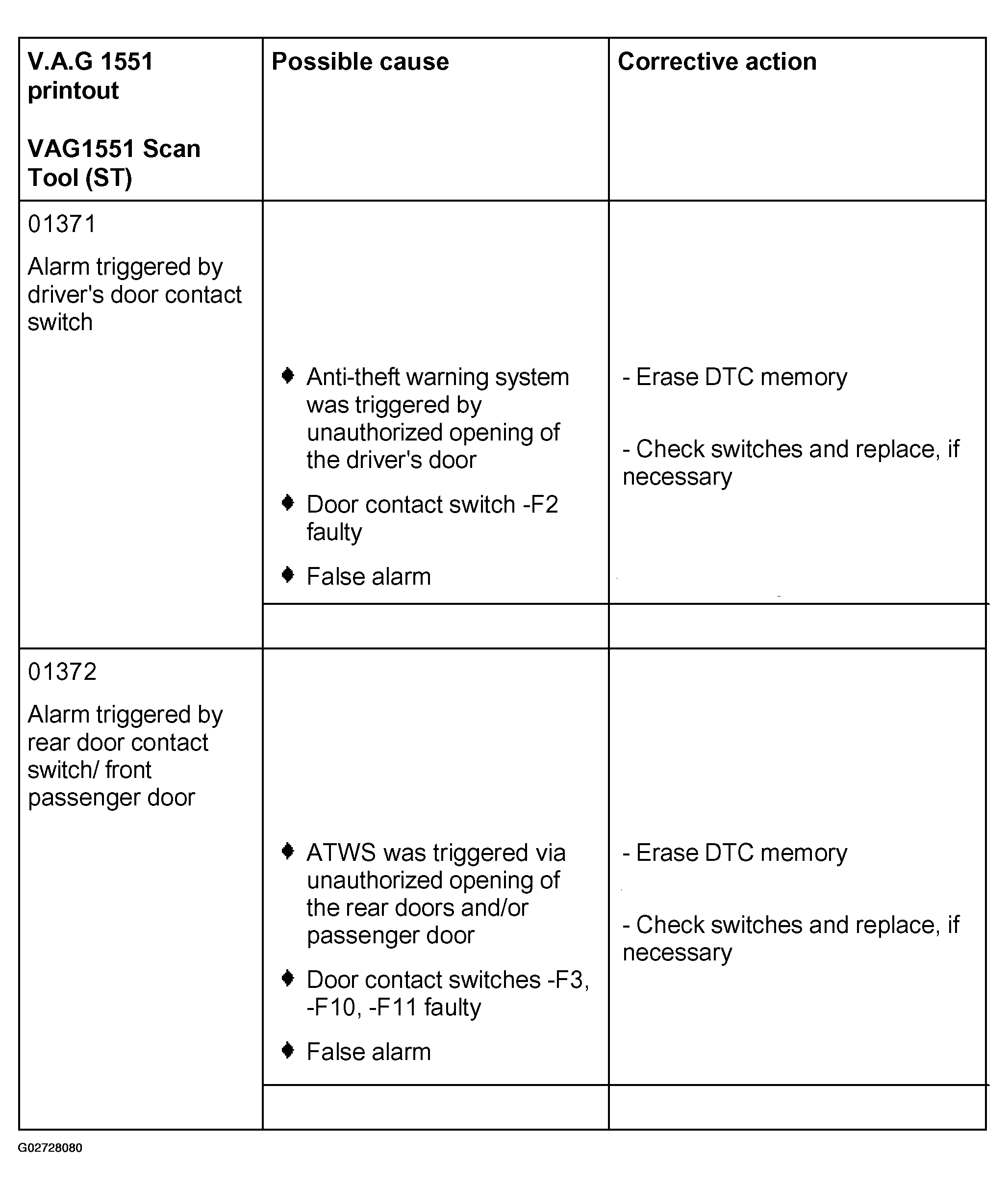

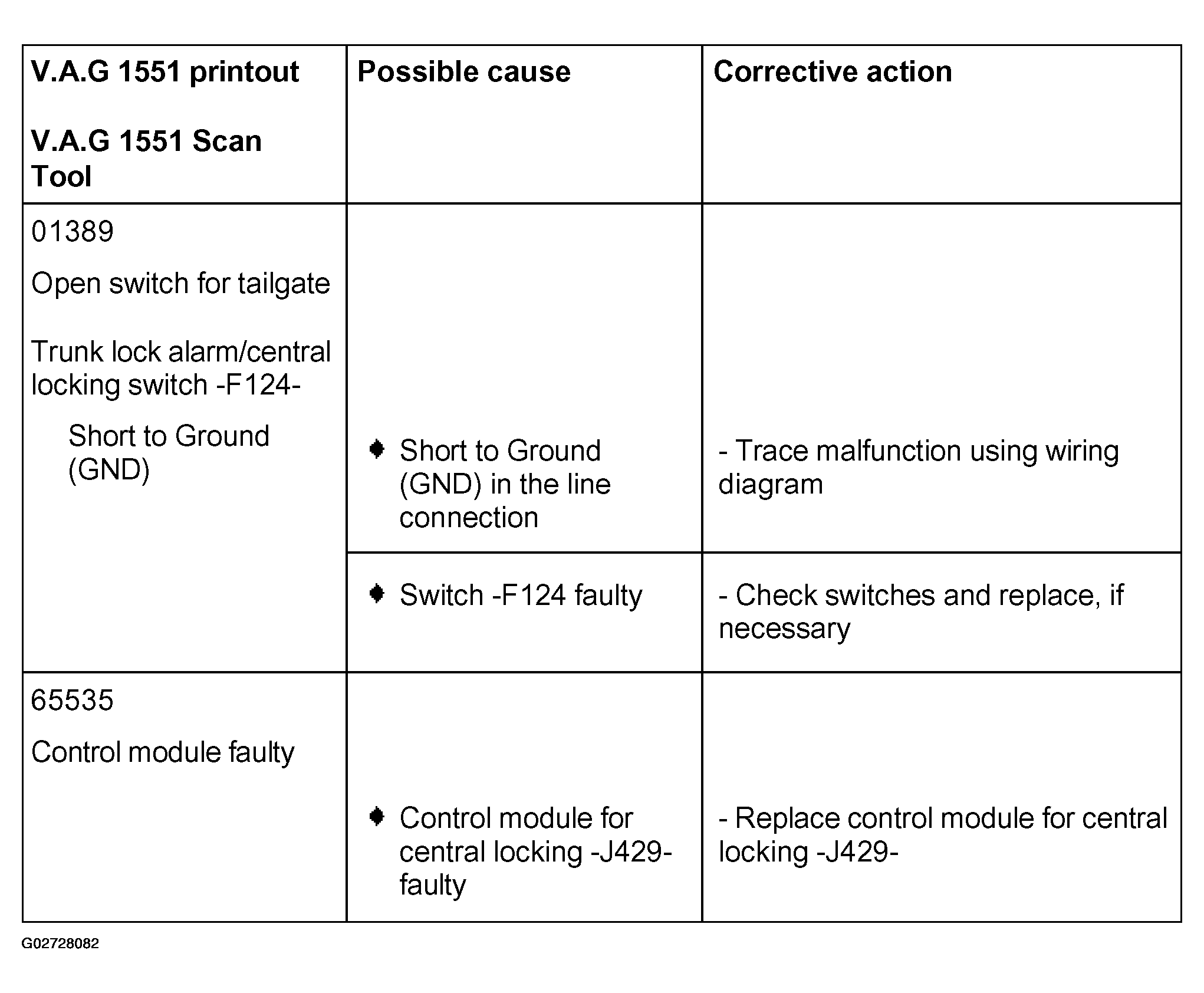

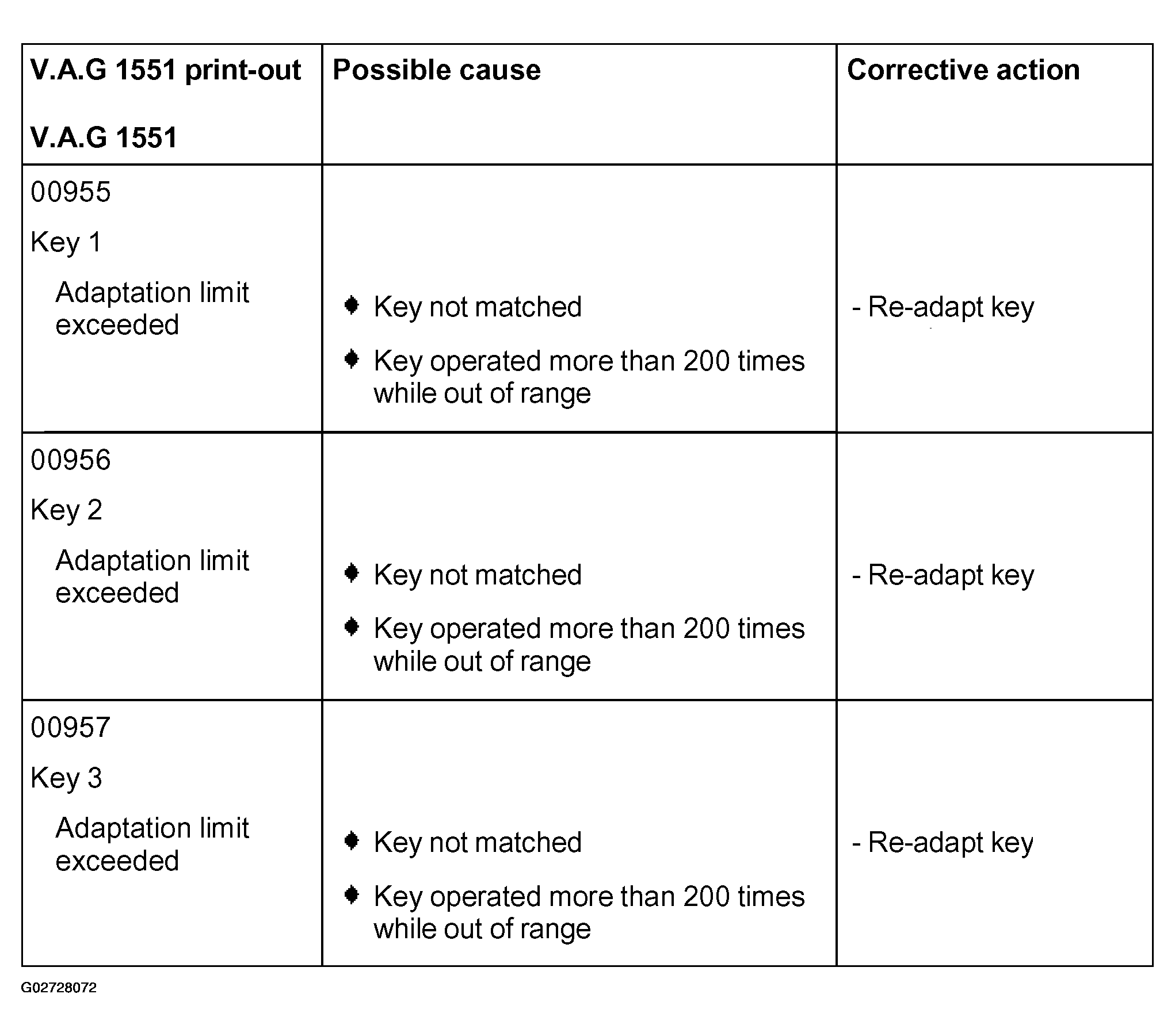

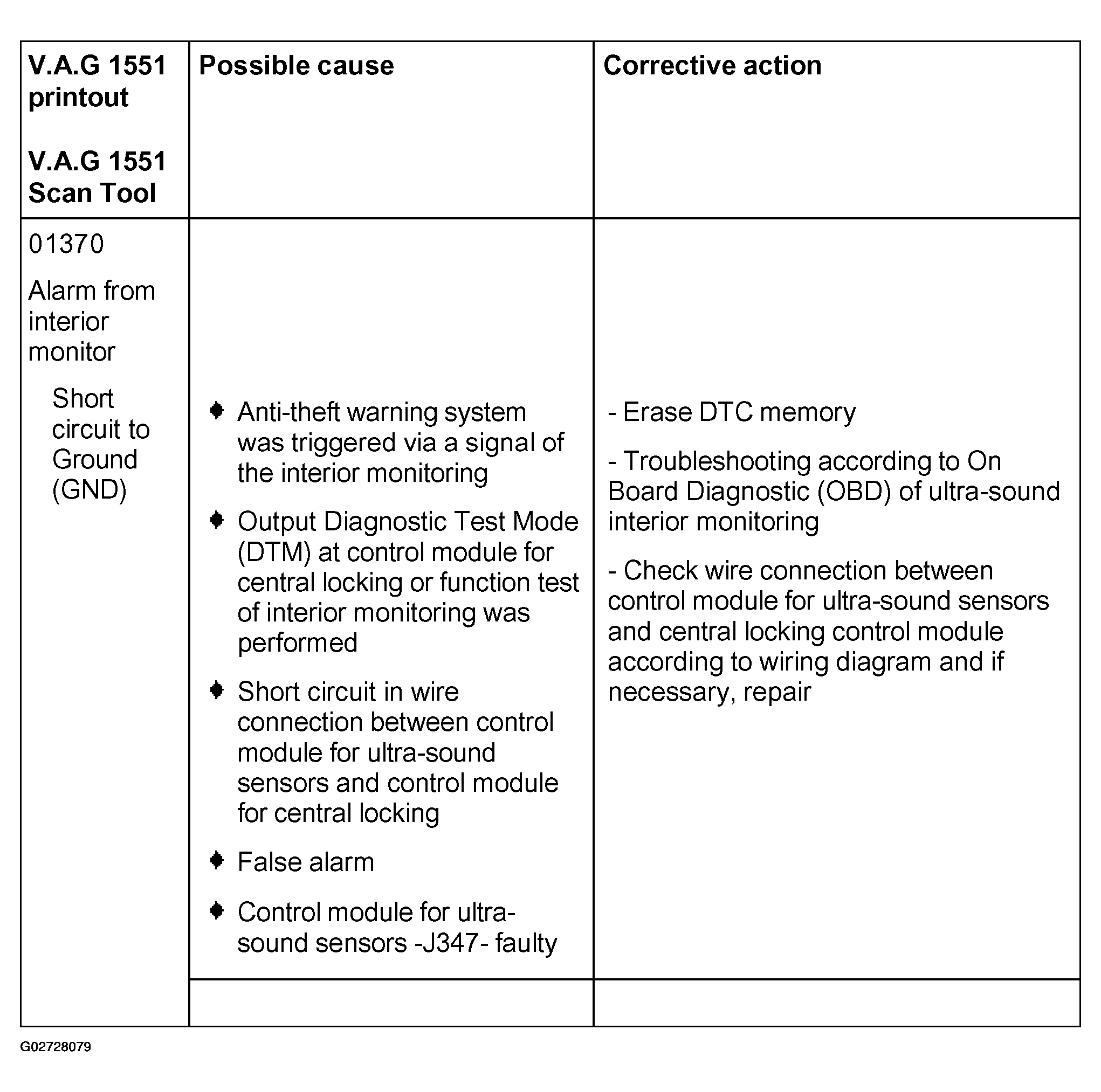

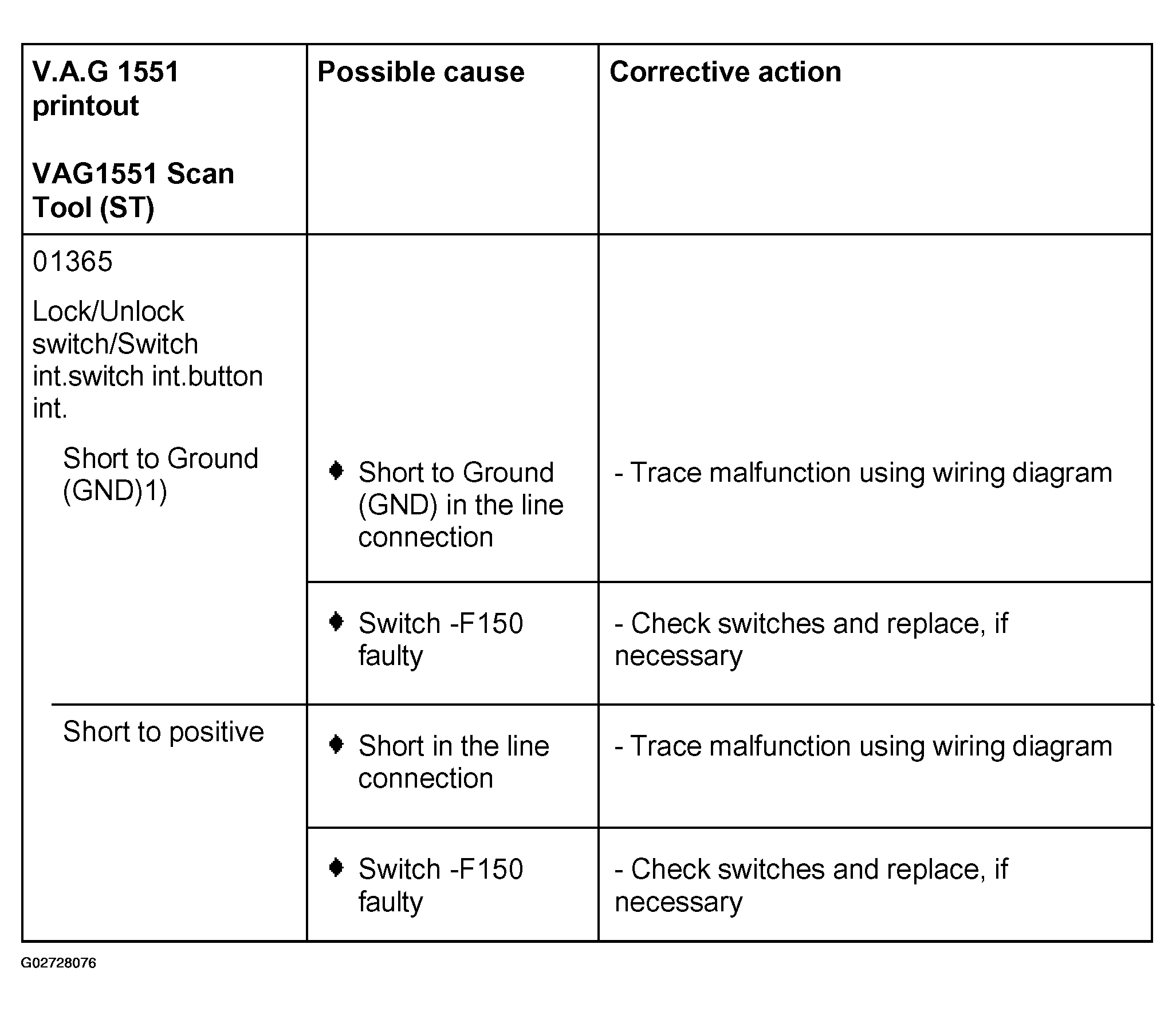

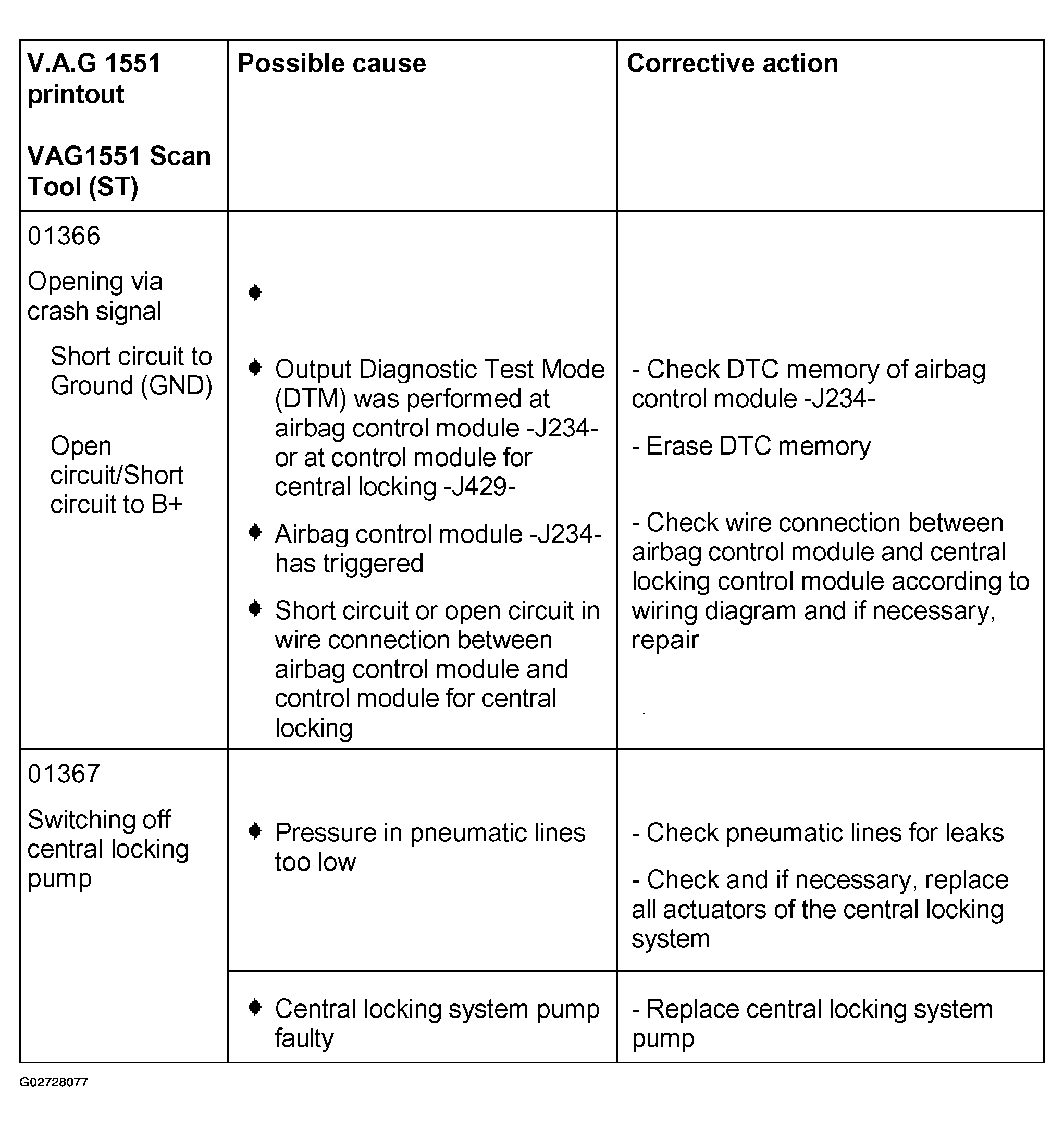

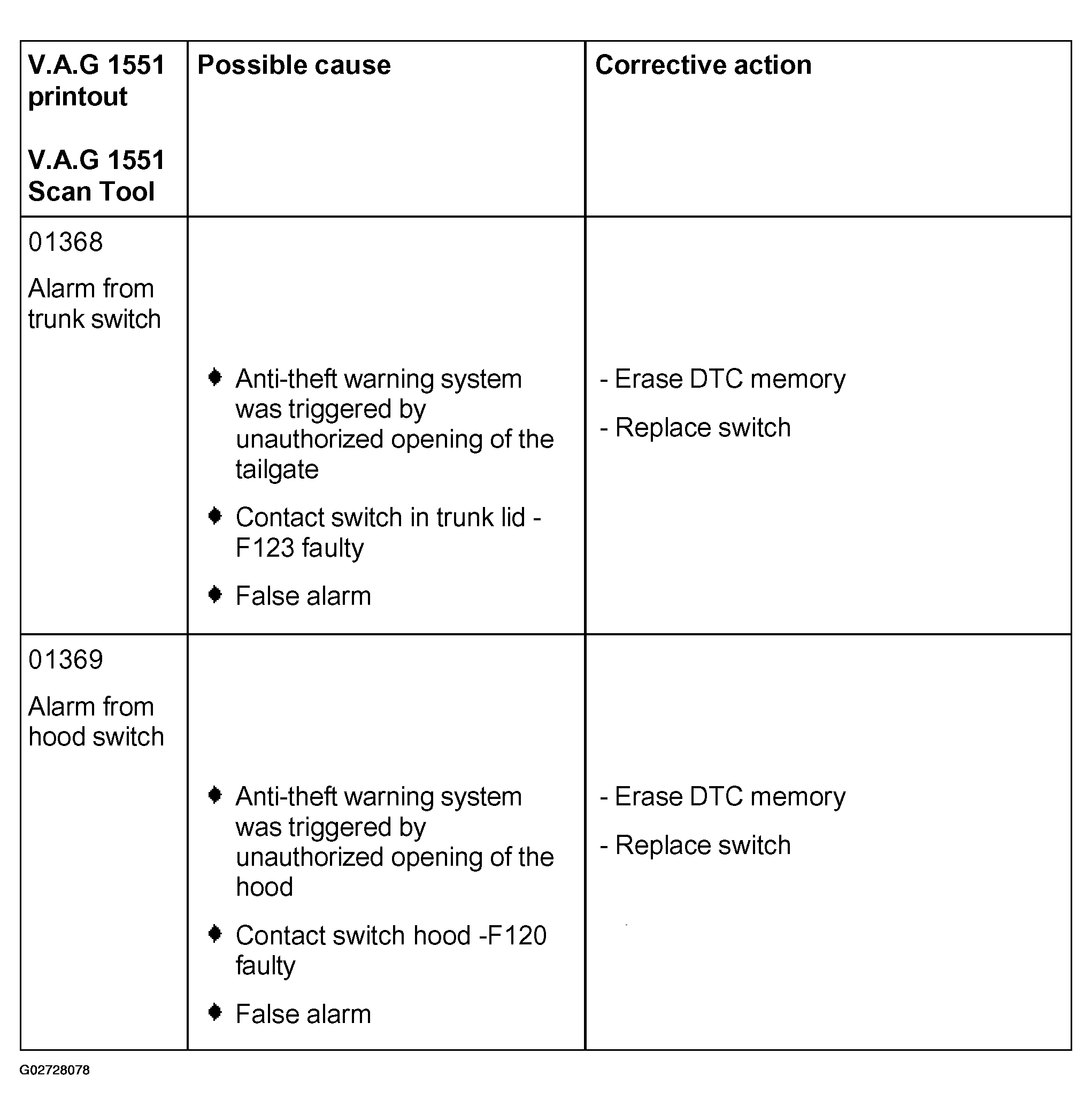

- The DTC table lists all malfunctions that can be recognized by the control module for central locking and printed out by the VAG1551 scan tool according to their 5-digit DTC. DTC only appears on printout.
- The DTC memory records all static and sporadic malfunctions. When a malfunction occurs it is immediately identified as a static malfunction. If the malfunction does not occur again it is registered as a sporadic malfunction. "ISP" appears on the right of the display.
- When the ignition is switched on, all existing malfunctions are automatically reclassified as sporadic malfunctions and will only register as static malfunctions if they still occur after testing.
- Sporadic malfunctions which no longer occur after 50 opening cycles are erased automatically.
- If malfunctions for switches or actuators are stored, always expand troubleshooting by checking the measuring value blocks. See READ MEASURING VALUE BLOCK (FUNCTION 08) .
- Before replacing a component shown as faulty, check wiring and connections to the component as well as Ground (GND) connections according to wiring diagram.
- Once repairs have been completed, the DTC memory is always to be checked again with scan tool V.A.G 1551 and erased. The vehicle is then to be relocked (with key or radio remote control system) and the DTC memory is re-checked.
- To re-adapt key, see CENTRAL LOCKING SYSTEM ON BOARD DIAGNOSTIC (OBD) FROM 07.96 .
- To re-adapt key, see CENTRAL LOCKING SYSTEM ON BOARD DIAGNOSTIC (OBD) FROM 07.96 .
NOTE:
The malfunction is stored if Ground (GND) is contacted for more than 1 minute, e.g. via an erroneous operation of the remote control. Perform the respective malfunction elimination only if requested, otherwise only erase DTC memory. See OUTPUT DIAGNOSTIC TEST MODE (FUNCTION 03)
.
- To check and/or replace switches, see FRONT DOORS, CENTRAL LOCKING SYSTEMREAR DOORS , or HOOD LIDS .
- The malfunction is stored if Ground (GND) is contacted for more than 1 minute, e.g. via an erroneous operation of the remote control. Perform the respective malfunction elimination only if requested, otherwise only erase DTC memory. See OUTPUT DIAGNOSTIC TEST MODE (FUNCTION 03) .
- For DTC memory information, see ERASE DTC MEMORY (FUNCTION 05) .
- The malfunction is stored if Ground (GND) is contacted for more than 1 minute, e.g. via an erroneous operation of the remote control. Perform the respective malfunction elimination only if requested, otherwise only erase DTC memory. See ERASE DTC MEMORY (FUNCTION 05) .
- To check and/or replace switches, see FRONT DOORS, CENTRAL LOCKING SYSTEMREAR DOORS , or HOOD LIDS .
- To check and/or replace switches, see FRONT DOORS, CENTRAL LOCKING SYSTEMREAR DOORS , or HOOD LIDS .
- For DTC memory information, see ERASE DTC MEMORY (FUNCTION 05) .
- For central locking system pump replacement, see REMOVING AND INSTALLING PUMP FOR CENTRAL LOCKING SYSTEM .
- To check and/or replace switches, see HOOD LIDS .
- For DTC memory information, see ERASE DTC MEMORY (FUNCTION 05) .
- For DTC memory information, see ERASE DTC MEMORY (FUNCTION 05) .
- To troubleshoot ultra-sound interior monitoring, see ULTRASONIC INTERIOR MONITORING SYSTEM, FROM 07.97 ON .
- To check and/or replace switches, see FRONT DOORS, CENTRAL LOCKING SYSTEM .
- For DTC memory information, see ERASE DTC MEMORY (FUNCTION 05) .
- For DTC memory information, see ERASE DTC MEMORY (FUNCTION 05) .
- To check and/or replace switches, see HOOD LIDS .
- For central locking system pump replacement, see REMOVING AND INSTALLING PUMP FOR CENTRAL LOCKING SYSTEM .
