Connector Identification

CONNECTOR IDENTIFICATION DIRECTORY

Connector See Fig
Camshaft Position Sensor Connector Terminals Fig 1
ECT Sensor Connector Terminals Fig 2
ECT Sensor Terminals Fig 3
EGR Temperature Sensor Connector Terminals Fig 4
EGR Vacuum Regulator Solenoid Valve Connector (Harness-Side) Terminals Fig 4
Engine Speed Sensor Connector (Harness-Side) Terminals Fig 1
Engine Speed Sensor Connector (Sensor-Side) Terminals Fig 5
EVAP Canister Purge Valve Harness Connector Terminals Fig 4
EVAP Differential Pressure Sensor Connector (Harness-Side) Terminals Fig 1
EVAP Leak Detection Pump (Component-Side) Fig 6
EVAP Leak Detection Pump (Harness-Side) Fig 7
Fuel Injector Harness Connector Fig 4
HO2S Black 2-Pin Heater Connector Fig 4
HO2S Connector (Harness-Side) Terminals Fig 8
HO2S Connector (Sensor-Side) Terminals Fig 9
IAC Valve Connector Terminals Fig 10
Ignition Coil Power Output Stage 3-Pin Connector (Harness-Side) Terminals Fig 1
Ignition Coil Power Output Stage 4-Pin Connector (Harness-Side) Terminals Fig 11
Intake Manifold Change-Over Valve Connector Terminals Fig 4
Knock Sensor Connector (Harness-Side) Terminals Fig 1
Knock Sensor Connector (Sensor-Side) Terminals Fig 5
MAF Sensor Connector Terminals A4 (1.8L Turbo) Fig 12
A4 (2.8L) & Cabriolet Fig 1
Secondary Air Injection Solenoid Valve Harness Connector Fig 4
TP Sensor Connector Terminals Fig 13
TP Sensor Terminals Fig 14
Throttle Valve Control Module (TVCM) Connector Terminals Fig 15
Fig 1: 3-Pin Harness Connector
G93D80997Courtesy of AUDI OF AMERICA, INC.
Fig 2: ECT Sensor Connector Terminals
G96C09935Courtesy of AUDI OF AMERICA, INC.
Fig 3: ECT Sensor Terminals
G96E09936Courtesy of AUDI OF AMERICA, INC.
Fig 4: 2-Pin Harness Connector
G96D09931Courtesy of AUDI OF AMERICA, INC.
Fig 5: 3-Pin Connector (Sensor-Side)
G93J80993Courtesy of AUDI OF AMERICA, INC.
Fig 6: EVAP Leak Detection Pump (Component-Side)
G97B07182Courtesy of AUDI OF AMERICA, INC.
Fig 7: EVAP Leak Detection Pump (Harness-Side)
G97D07183Courtesy of AUDI OF AMERICA, INC.
Fig 8: HO2S Connector (Harness-Side) Terminals
G96J09929Courtesy of AUDI OF AMERICA, INC.
Fig 9: HO2S Connector (Sensor-Side) Terminals
G96B09930Courtesy of AUDI OF AMERICA, INC.
Fig 10: IAC Valve Connector Terminals
G96J09934Courtesy of AUDI OF AMERICA, INC.
Fig 11: Ignition Coil Power Output Stage 4-Pin Connector (Harness-Side) Terminals
G96F09927Courtesy of AUDI OF AMERICA, INC.

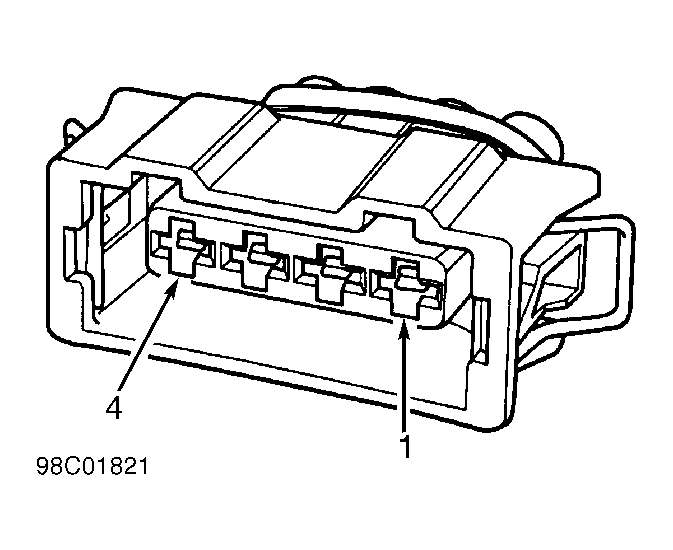

Fig 12: MAF Sensor Connector Terminals (Harness-Side)
G98C01821Courtesy of AUDI OF AMERICA, INC.
Fig 13: TP Sensor Connector Terminals
G96H09933Courtesy of AUDI OF AMERICA, INC.
Fig 14: TP Sensor Terminals
G95C31551Courtesy of AUDI OF AMERICA, INC.

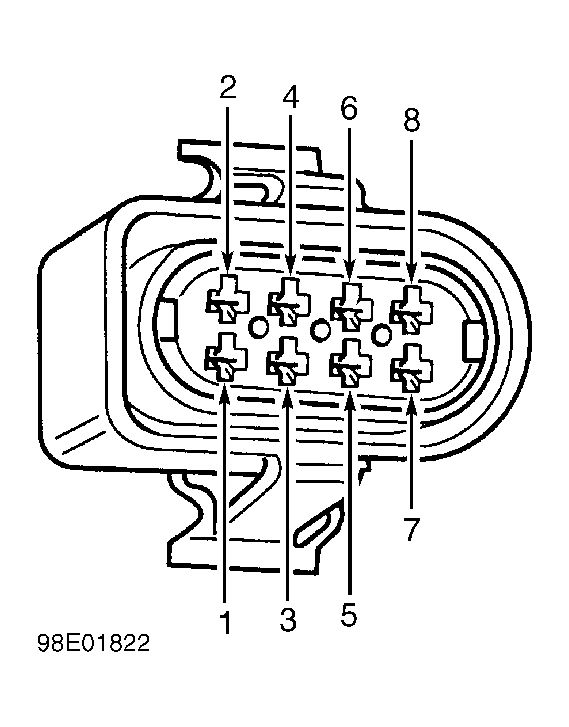

Fig 15: TVCM Connector Terminals
G98E01822Courtesy of AUDI OF AMERICA, INC.
