Fuse Panel Identification: Notes

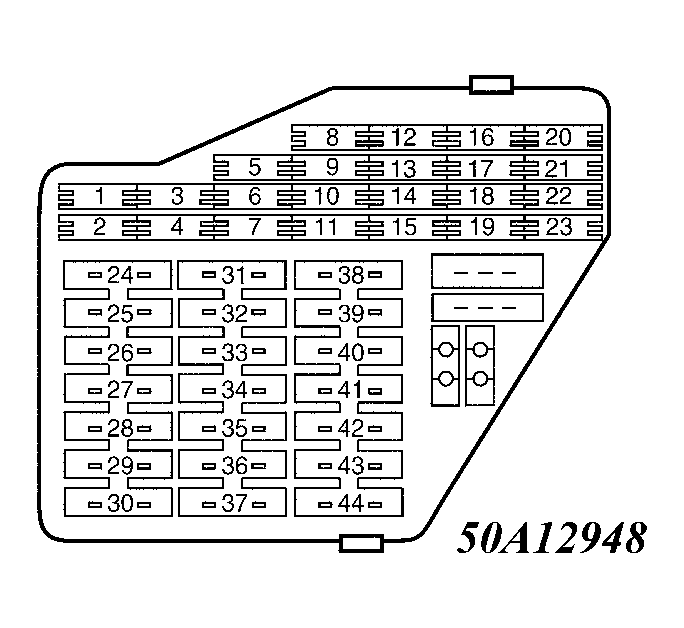

Fig 1: Fuse Panel Identification

Courtesy of AUDI OF AMERICA, INC.

NOTE: The electric power windows and the electric seat adjusters are protected with circuit breakers with reset automatically after the circuit overload has been corrected.
