Ignition Interlock Cable

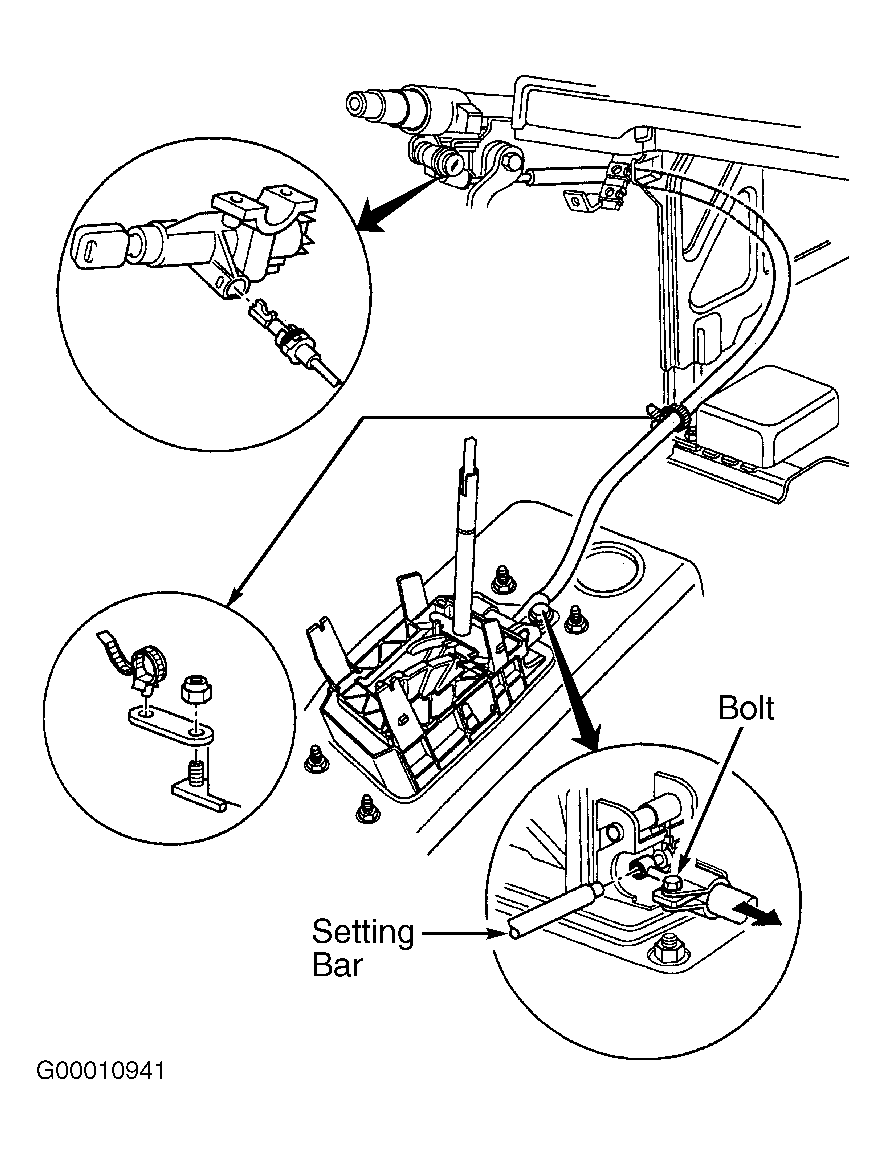

Loosen lock bolt at shifter. See Figure . Move gear selector to Park position. Put Setting Bar (3352A) between lever and interlock cable. Pull cable to remove slack. Tighten bolt and remove setting bar. Turn ignition off and on several times and recheck gap. Install cable housing to gear selector console.
