Installing locking pins

Peened pivot pin (arrow -A-).

• Press in locking pin completely using auxiliary tool (made up in workshop).
• Spring clip on locking pin (arrow -B-) must fully lock home behind fulcrum lever.

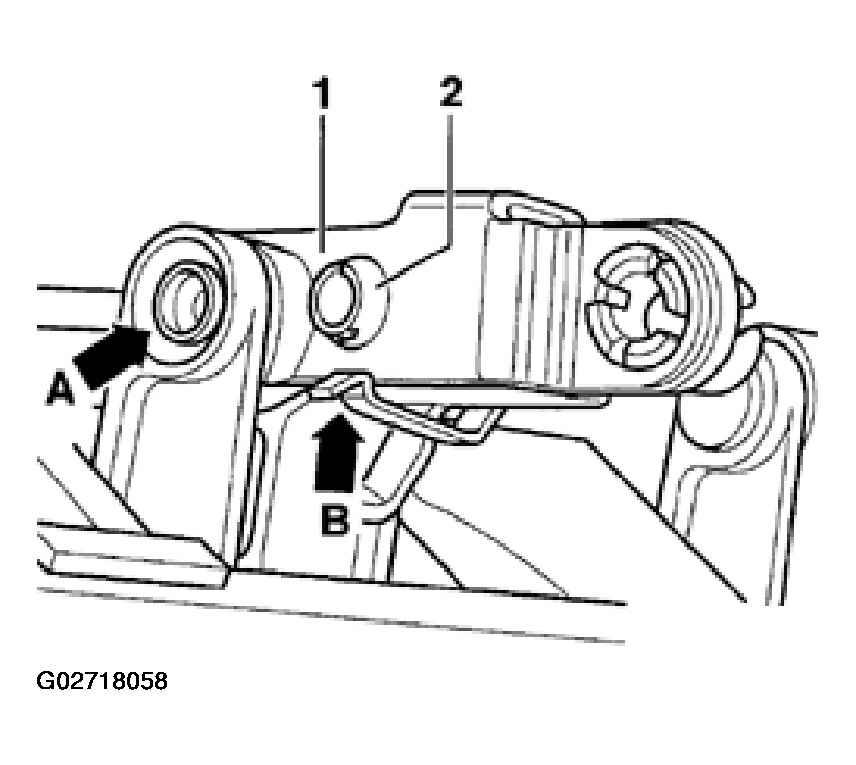

Fig 1: Installing Locking Pins
Courtesy of AUDI OF AMERICA, INC.
