Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module | Integral with ABS hydraulic unit, on left side of engine compartment. |
| ABS Hydraulic Unit | Left side of engine compartment. |
| Air Bag Control Module | Below front of center console. See Figure. |
| Central Locking Control Module | Below driver's seat & carpet. See Figure. |
| Cruise Control Module | Behind glove box. See Figure. |

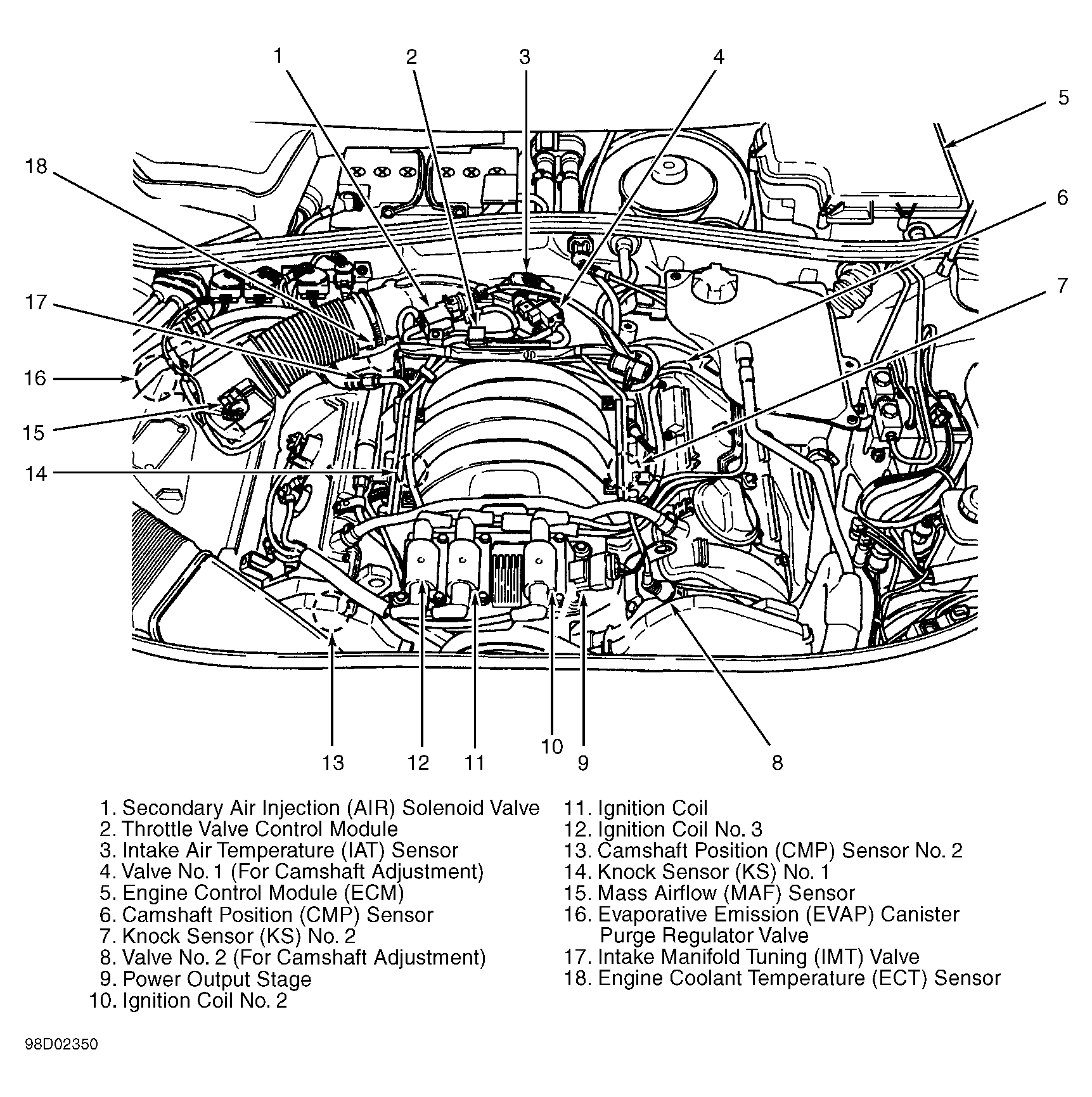

| Engine Control Module (ECM) | In electronic box, on left side of fresh air plenum. See Figure. |
| Fresh Air Blower Control Module | Behind right side of dash. See Figure. |
| Headlight Adjustment System Control Module | On left side of luggage compartment. See Figure. |

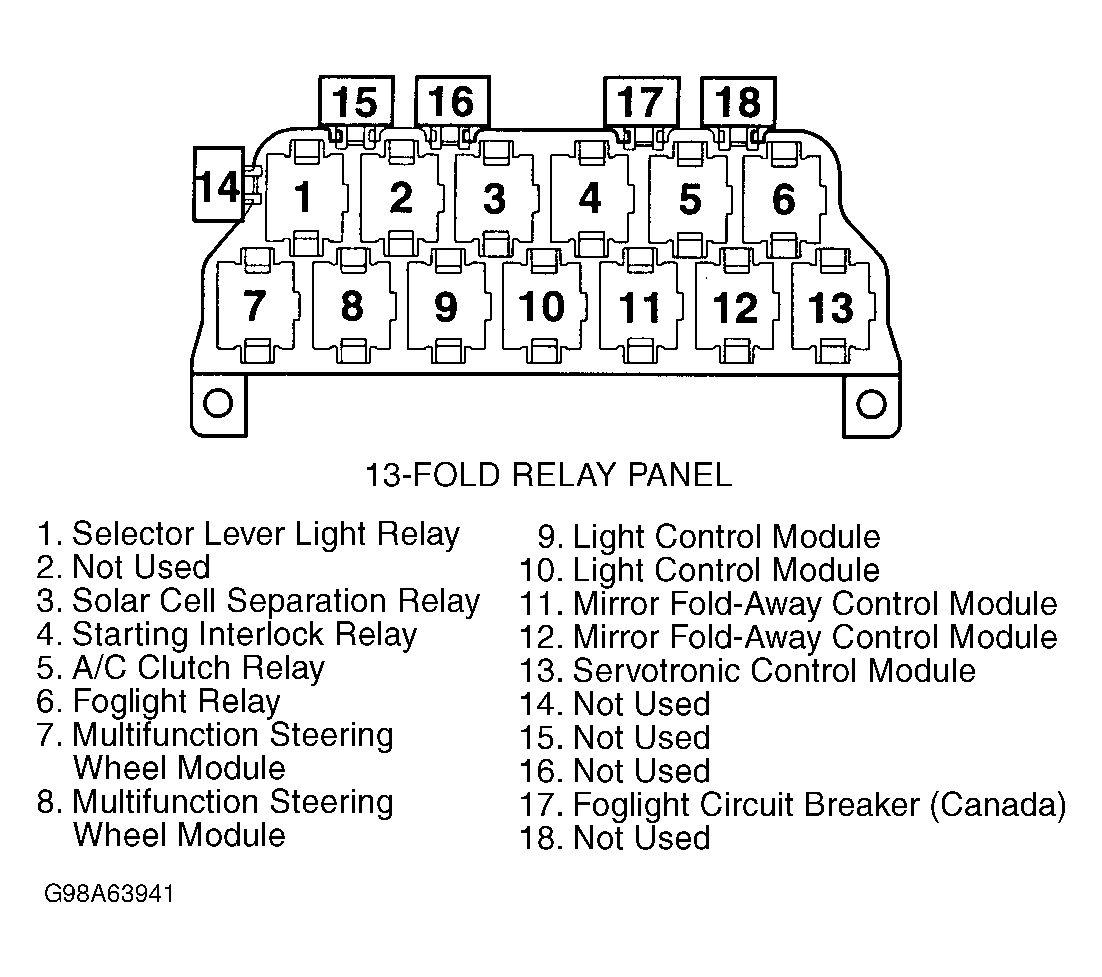

| Light Control Module | On 13-fold relay panel. See Figure. |
| Mirror Fold-Away Control Module | On 13-fold relay panel. See Figure. |
| Multifunction Steering Wheel Module | On 13-fold relay panel. See Figure. |
| Power Window Control Module (4) | In respective door, integral with power window motor. |
| Rear Window Shade Control Module | On left side of luggage compartment. See Figure. |
| Servotronic Control Module | On 13-fold relay panel. See Figure. |
| Throttle Valve Control Module | On throttle body. See Figure. |
| Transmission Control Module (TCM) | Under right front seat & carpet. See Figure. |
| Ultra-Sound Sensor Control Module | Mounted below left "C" pillar. See Figure. |
