Test sequence

• Connect VAS5051 tester or VAG1551 scan tool and select control module for engine electronics using "address word" 01. See VAS 5051 VEHICLE DIAGNOSTIC, TESTING AND INFORMATION SYSTEM OR VAG1551 SCAN TOOL (ST), CONNECTING AND SELECTING FUNCTIONS .

  Engine must run at idle for this.

When indicated on display:

Fig 1: Identifying Scan Tool Display - Checking Misfire Recognition (1 Of 4)

• Press buttons -0- and -8- to select "Read measuring value block" function 08. Press -Q- button to confirm input.

When indicated on display:

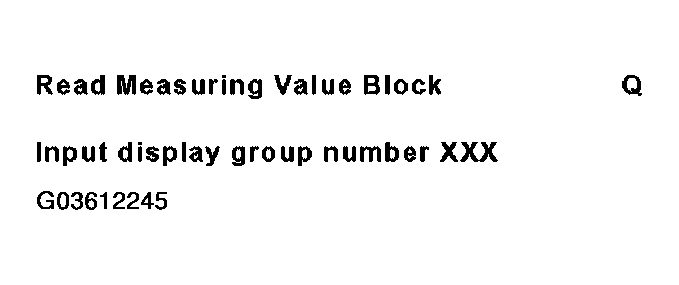

Fig 2: Identifying Scan Tool Display - Checking Misfire Recognition (2 Of 4)

• Press buttons -0-, -1- and -4- to select "display group number 014" and press -Q- button to confirm input.

When indicated on display:

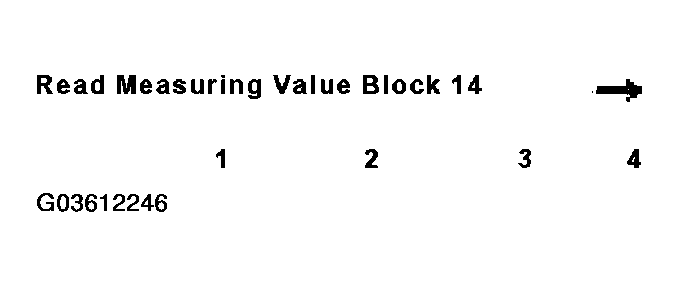

Fig 3: Identifying Scan Tool Display - Checking Misfire Recognition (3 Of 4)

• Check misfire recognition in display fields 3 and 4.
  DISPLAY GROUP 014: MISFIRE RECOGNITION



  	Display fields
  	1	2	3	4
  Display group 014: Misfire recognition
  Display	xxxx/min	xxx%	xxx	---
  Indicated	Engine speed (RPM)	Load	Number of combustion misfires	Misfire recognition
  Functional range	670 to 6800 RPM	12 to 100%		activated
  				locked
  Specified value	720 to 820 RPM (1)	12 to 26%	0 to 12	activated
  670 to 770 RPM (2)
  Notes			If the specified value is exceeded: Check combustion misfires of the individual cylinders  . See CHECKING MISFIRE RECOGNITION OF INDIVIDUAL CYLINDERS .
  (1) Front Wheel Drive Vehicles (2) All-Wheel Drive Vehicles

If specified value is obtained:

• Press -->button.

Indicated on display (function selection):

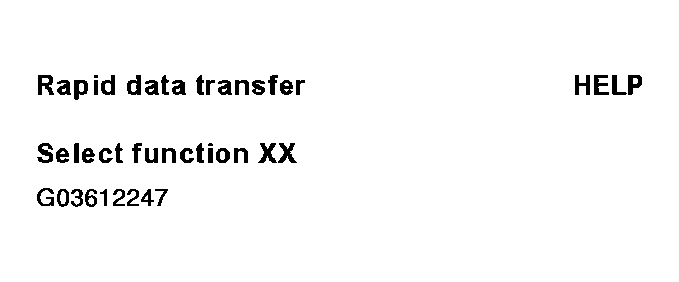

Fig 4: Identifying Scan Tool Display - Checking Misfire Recognition (4 Of 4)
