Servotronic, assembly overview: Notes

The following list pertains to Fig 1.

1. Power steering gear with tie rods
   • Assembly Overview, see POWER STEERING GEAR, ASSEMBLY OVERVIEW
2. Connector for servotronic
3. Relay carrier, 13-pin
   • Located under trim in driver's footwell

     See appropriate System Wiring Diagrams article.

   • Relay for servotronic control module - J236- (position 13)
   • Checking voltage supply, see SERVOTRONIC, CHECKING VOLTAGE SUPPLY
   • Checking speed signal, see SPEED SIGNAL, CHECKING
4. Socket-head bolt, 3 Nm
   • 2.5 mm
   NOTE: Do not open Torx bolts!
5. Servotronic solenoid valve - N119-
   • Steering gear must be removed to replace servotronic valve.
   • Checking, see SERVOTRONIC VALVE, CHECKING
   NOTE: DO NOT open Torx bolts!
6. Seal
   • Always replace
7. Seal
   • Always replace
8. Sieve
   • Always replace

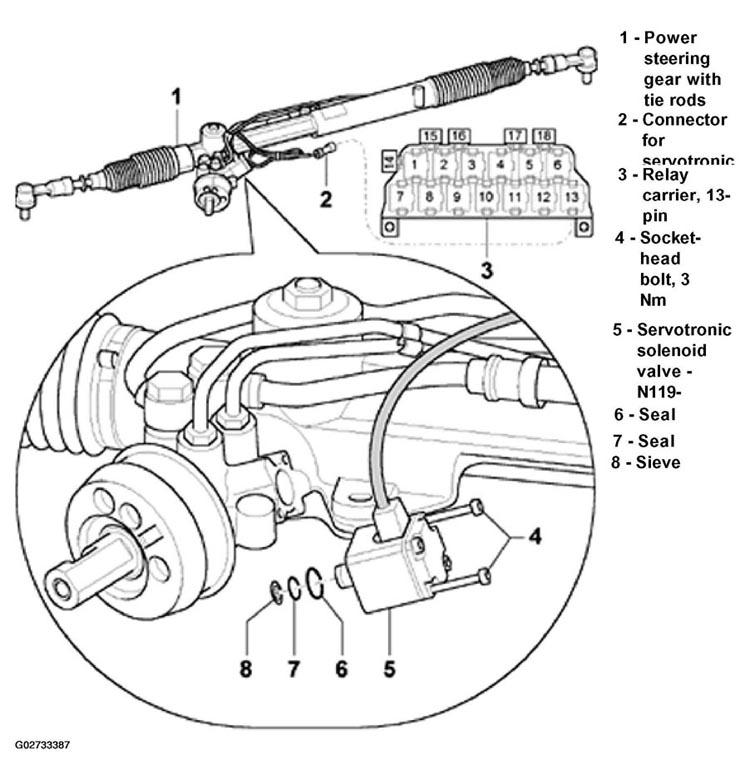

Fig 1: View Of Servotronic Assembly
Courtesy of AUDI OF AMERICA, INC.
