Toe Adjustment: Front

Before checkingalignment, read PRELIMINARY CHECKS  and WHEEL ALIGNMENT WORK SEQUENCE  .

Loosen clamps and lock nut B on BOTH tie rods. See Fig 1 . Adjust both tie rods until proper setting is reached. Make sure that the boots are not twisted after turning the tie rods. Twisted boots will wear out quickly.

Tighten lock nut B to 30 ft. lbs. (40 N.m). Check toe-in again. After tightening lock nut B it is possible that the toe value may deviate slightly. If the measured toe lies within the tolerances, the adjustment is correct.

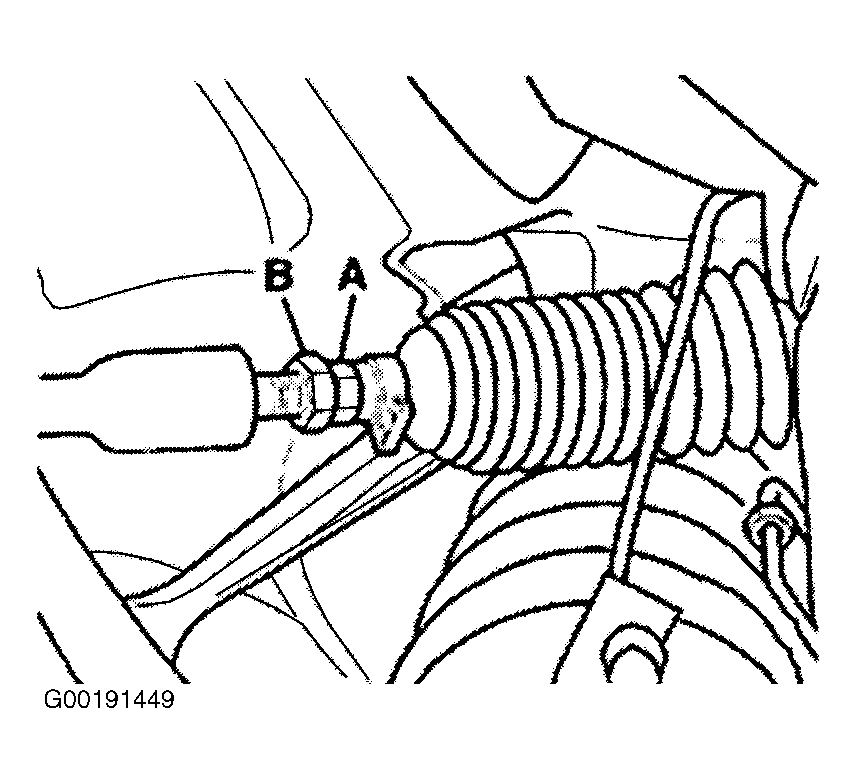

Fig 1: Identifying Toe Constant "S" Adjustment Points

Courtesy of AUDI OF AMERICA, INC.
