Rear (AWD)
Before checkingalignment, read PRELIMINARY CHECKS and WHEEL ALIGNMENT WORK SEQUENCE .
NOTE:
Adjusting the individual toe settings automatically alters the thrust angle of the axle.

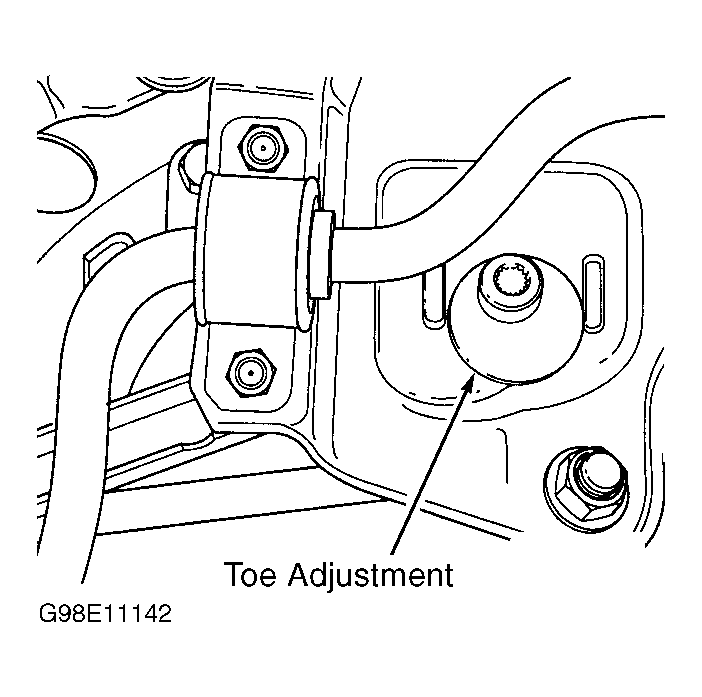

On All-Wheel Drive (AWD) models, loosen toe eccentric nut. Adjust toe eccentric bolt to desired setting. The maximum adjustment range is 90 degrees to the left or right of the center position. Tighten nut to 66 ft. lbs. (90 N.m). See Fig 1 . Recheck alignment angles after adjustments.
