Engine Code Location: 4.2L

Engine code letters and engine serial number are located on left sided of cylinder block. See Fig 4 . Engine code and serial number are also on a sticker attached to belt cover. Additionally, engine code and serial number are located on vehicle data plate.

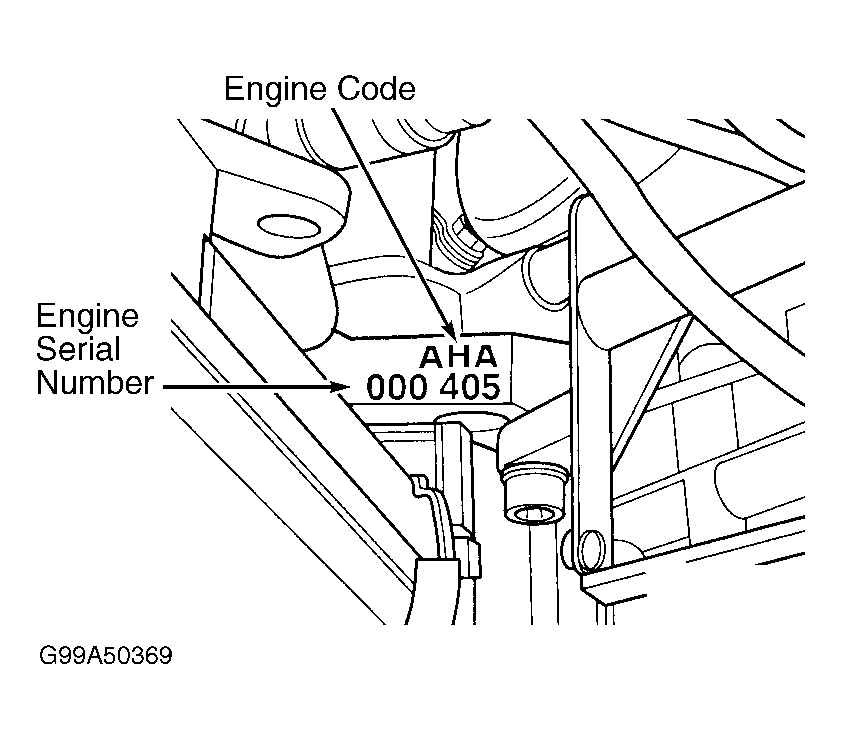

Fig 1: Locating Engine Code & Engine Serial Number (1.8L A4)

Courtesy of AUDI OF AMERICA, INC.

Fig 2: Locating Engine Code & Engine Serial Number (1.8L TT)

Courtesy of AUDI OF AMERICA, INC.

Fig 3: Locating Engine Code & Engine Serial Number (2.7L & 2.8L)

Courtesy of AUDI OF AMERICA, INC.

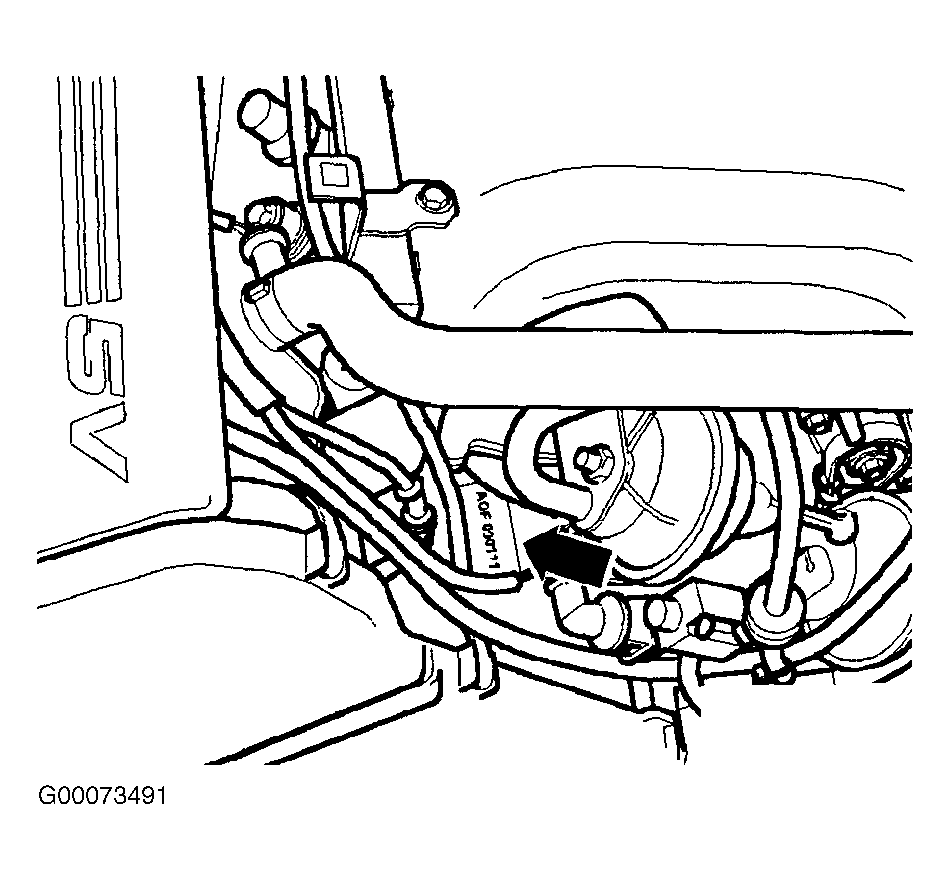

Fig 4: Locating Engine Code & Engine Serial Number (4.2L)

Courtesy of AUDI OF AMERICA, INC.
