Front door handle, preassembling: Notes
NOTE:
Replacement door handles must be painted and pre-assembled prior to installation.
NOTE:

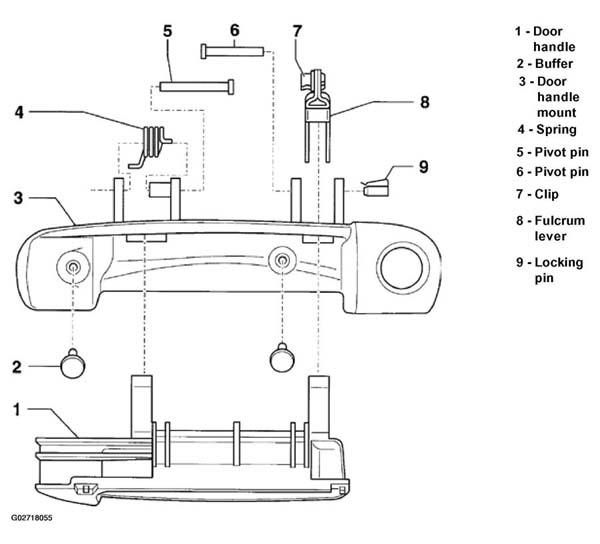

The following list refers to Fig 1.
- Door handle
To assemble:
- Insert spring -4- into mount.
- Insert door handle into mount -3- and push on fulcrum lever -8-.
- Push in pivot pins -5- and -6- and peen with center punch. See PEENING PIVOT PINS .
- Install spring -4-. See CORRECT INSTALLATION POSITION OF SPRING .
- Buffer
- Insert after painting
- Door handle mount
- Spring
- Installation position. See CORRECT INSTALLATION POSITION OF SPRING .
- Grease spring with G 052 745 A3
- Pivot pin
- Pay attention to different pin lengths
- Peening. See PEENING PIVOT PINS .
- Pivot pin
- Pay attention to different pin lengths.
- Peening. See PEENING PIVOT PINS .
- Clip
- Fulcrum lever
- Locking pin
- Installing. See INSTALLING LOCKING PINS .
