ABS hydraulic control unit, assembly overview: Notes
Tightening torque for all brake lines on the Audi A6 is 15 Nm.
NOTE:

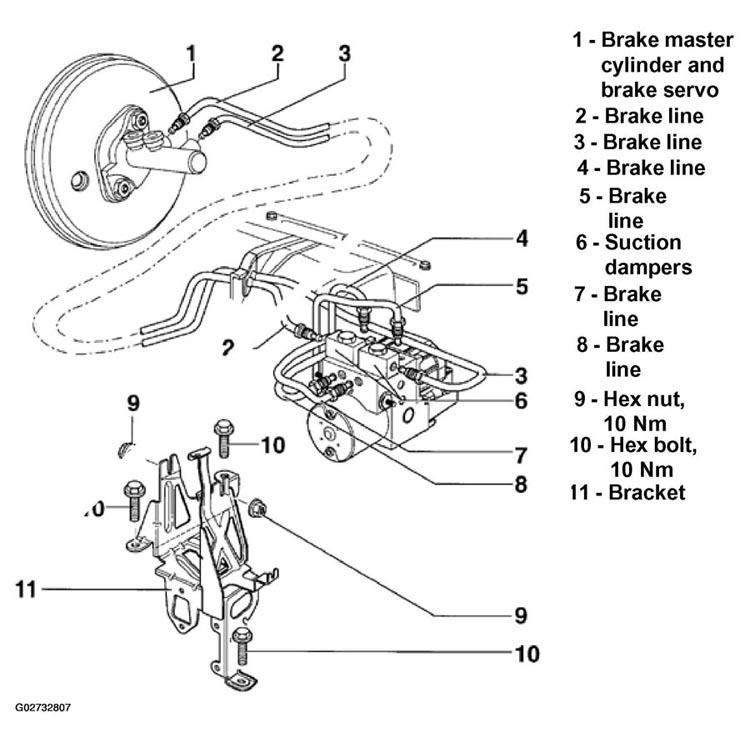

The following list refers to items in Fig 1.
- Brake master cylinder and brake servo
- Brake line
- Brake master cylinder/primary piston circuit to hydraulic unit
- Brake line
- Brake master cylinder/secondary piston circuit to hydraulic unit
- Brake line
- Hydraulic unit to left-front brake caliper
- Brake line
- Hydraulic unit to right-front brake caliper
- Suction dampers
- Design to improve pressure build-up during operation of EDL
- To be discontinued gradually (will be incorporated in the hydraulic control unit)
- Brake line
- Hydraulic control unit to left-rear brake caliper
- Brake line
- Hydraulic control unit to right-rear brake caliper
- Hex nut, 10 Nm
- Hex bolt, 10 Nm
- Bracket
