Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Vehicle Overview

Courtesy of AUDI OF AMERICA, INC.

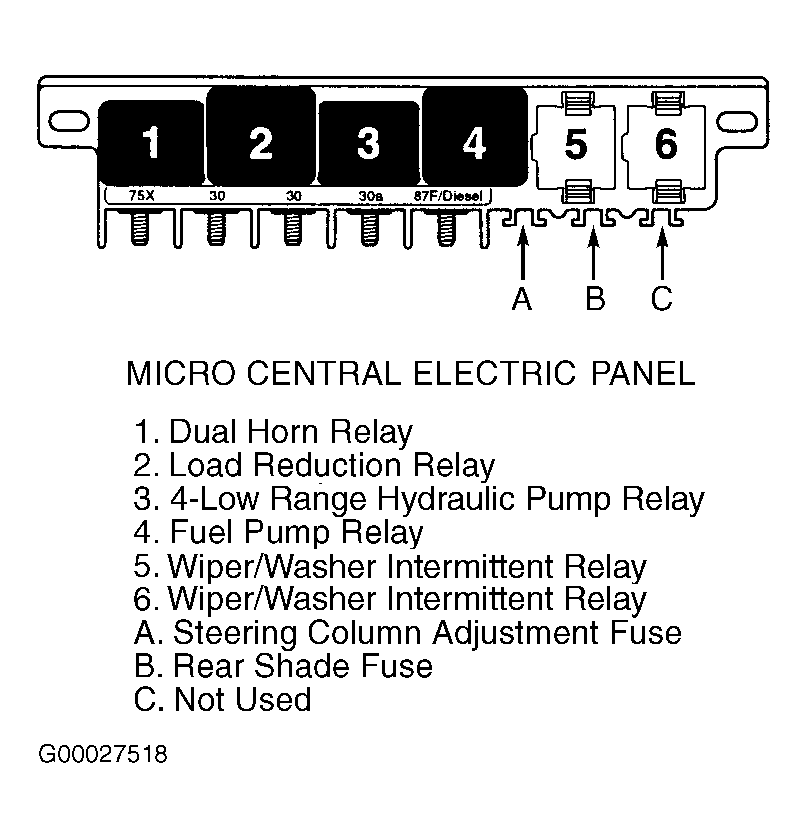

Fig 2: Micro Central Electric Panel

Courtesy of AUDI OF AMERICA, INC.

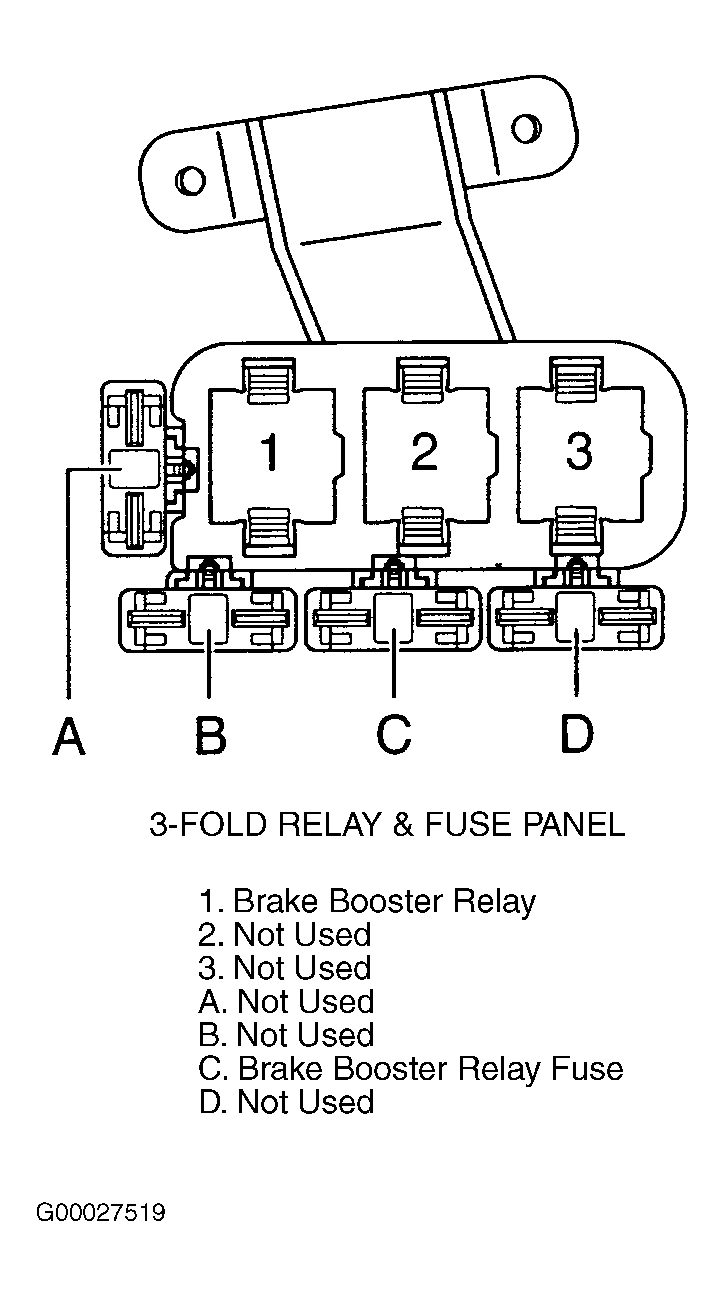

Fig 3: 3-Fold Relay & Fuse Panel

Courtesy of AUDI OF AMERICA, INC.

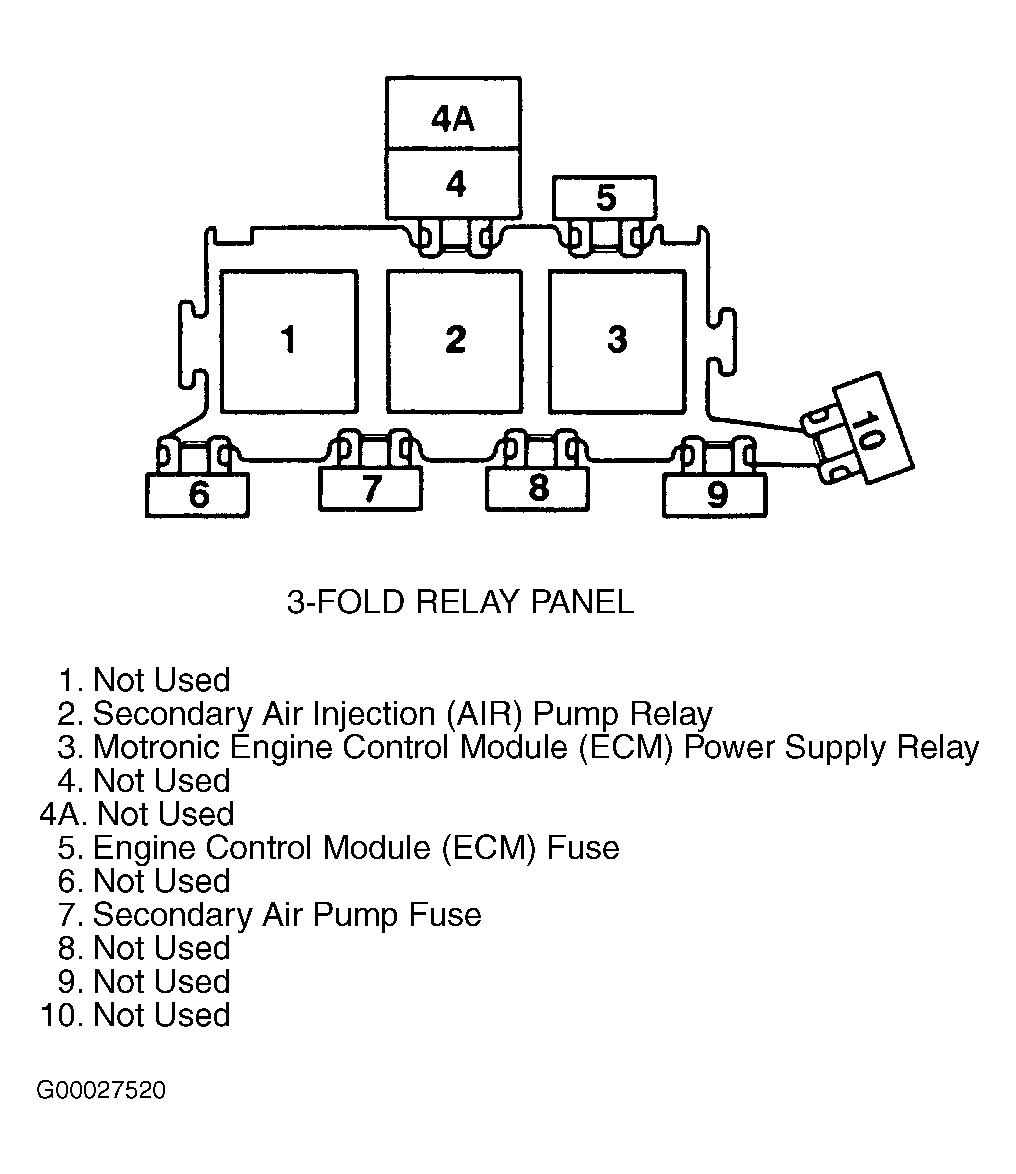

Fig 4: 3-Fold Relay Panel

Courtesy of AUDI OF AMERICA, INC.

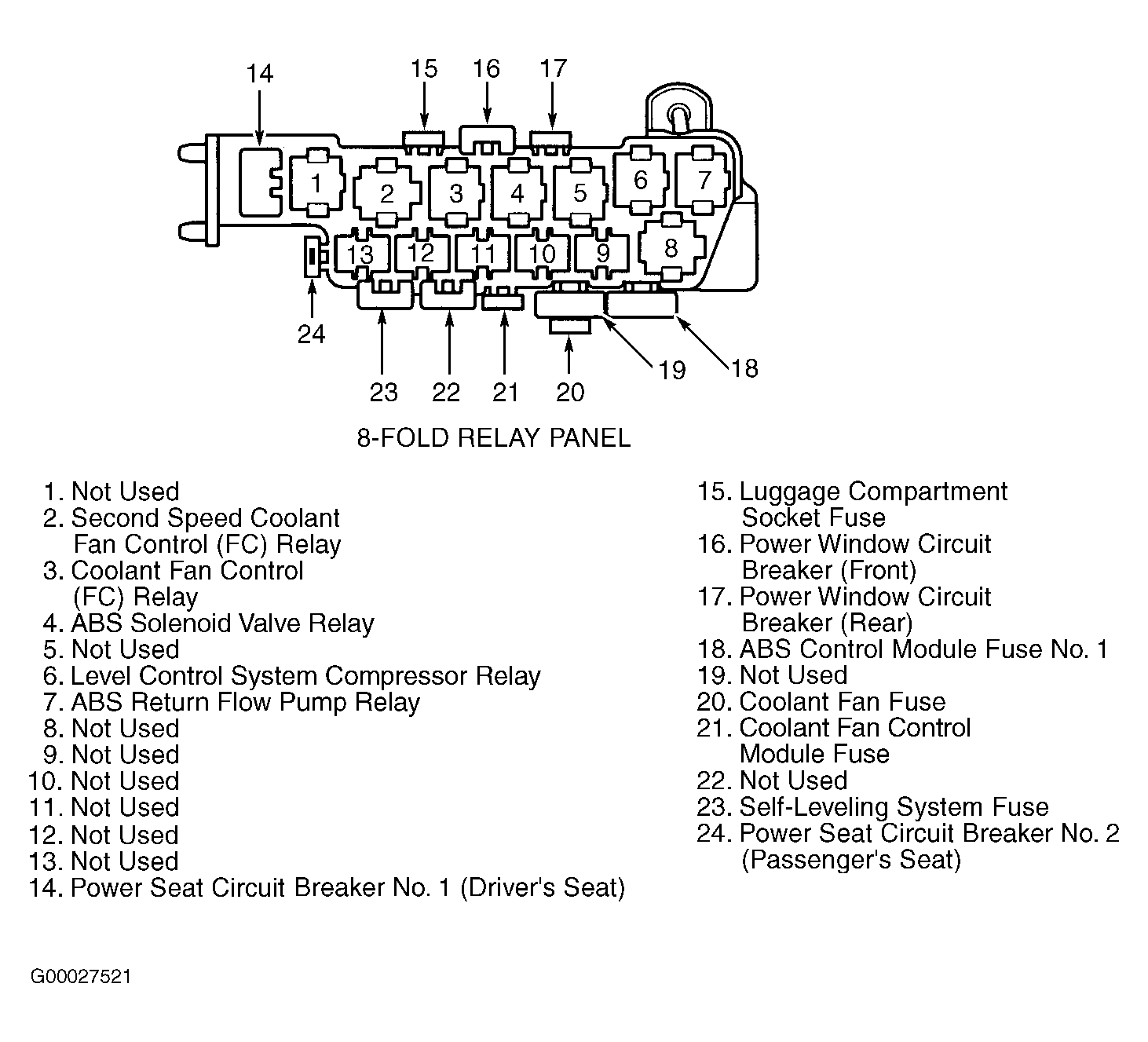

Fig 5: 8-Fold Relay Panel

Courtesy of AUDI OF AMERICA, INC.

Fig 6: 13-Fold Relay Panel

Courtesy of AUDI OF AMERICA, INC.
