Control Units

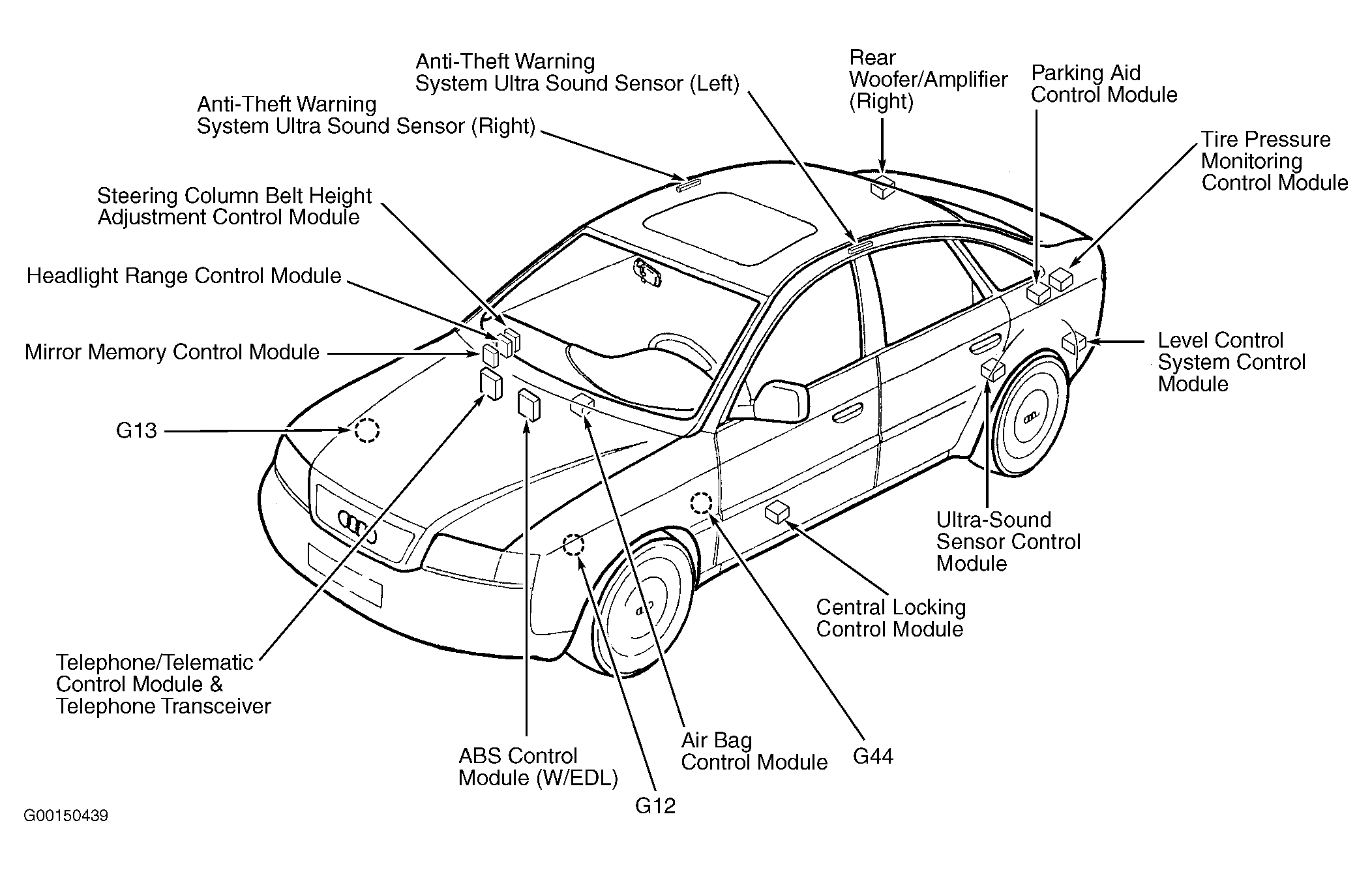

CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Control Module (W/EDL) | In passenger footwell, below carpet. See Figure . |
| Air Bag Control Module | Below front of center console. See Figure . |
| Antenna Selection Control Module (Allroad/Avant) | Above headliner, beside roof antenna, on center rear of roof. |
| Antenna Selection Control Module (Sedan) | Below left side of rear window shelf. |
| Central Locking Control Module | Below driver's seat & carpet. See Figure . |
| Headlight Range Control Module | Behind glove compartment, on support bracket. See Figure . |
| Level Control System Control Module | Behind carpet, on lower left side of luggage compartment. See Figure . |

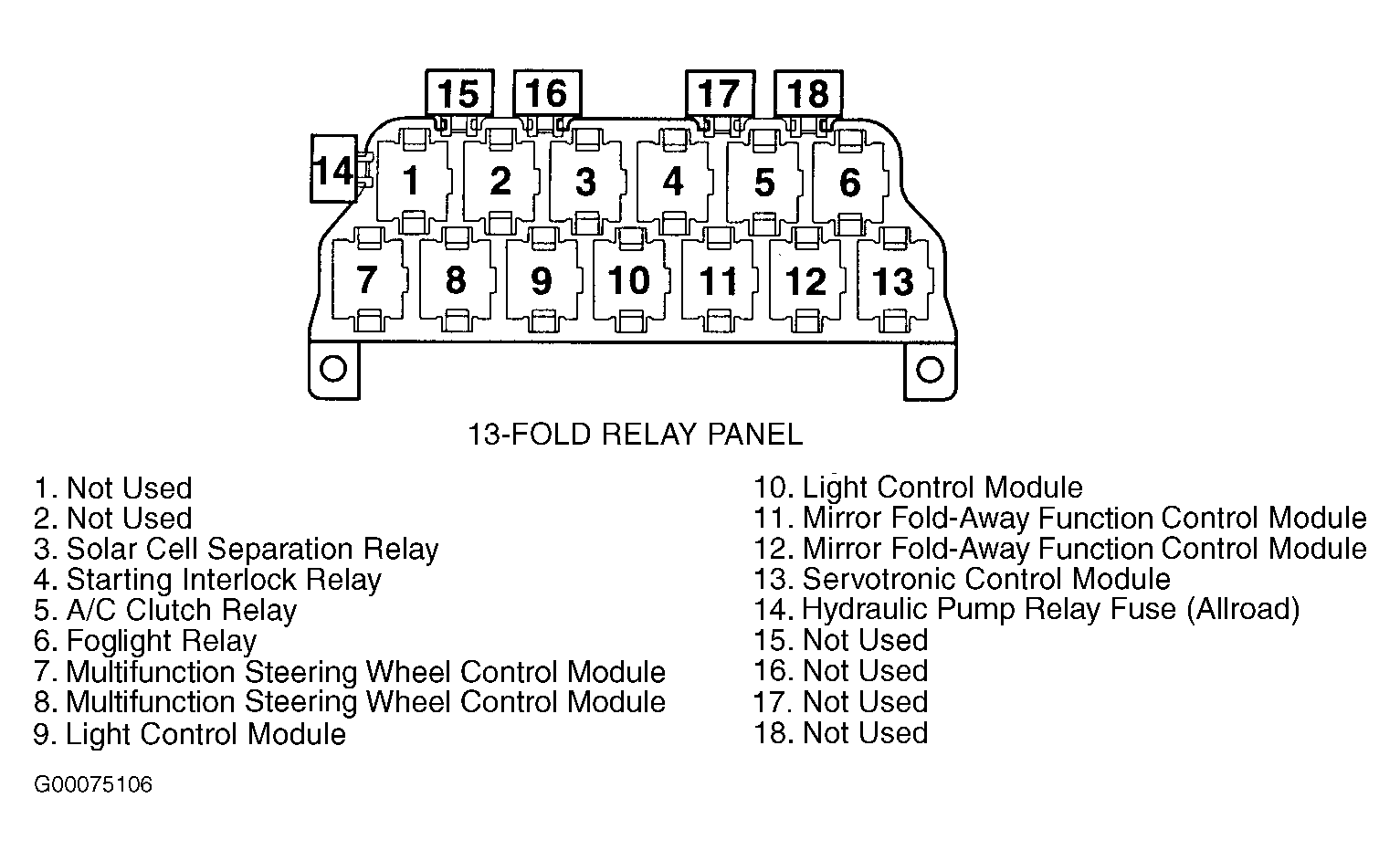

| Light Control Module | On 13-fold relay panel. See Figure . |
| Memory Seat Control Module | Below driver's seat. |
| Mirror Fold-Away Function Control Module (2) | On 13-fold relay panel. See Figure . |
| Mirror Memory Control Module | Behind right side of dash, on support bracket. See Figure . |
| Motronic Engine Control Module | In electronic box, on left side of fresh air plenum. |
| Multifunction Steering Wheel Control Module (2) | On 13-fold relay panel. See Figure . |
| Navigation Control Unit W/CD-Drive (Sedan) | At left side of luggage compartment, in storage compartment. |
| Operating Electronics & Telephone Control Module | Below rear of center console. |
| Parking Aid Control Module | Behind carpet, on left side of luggage compartment. See Figure . |
| Rear Window Shade Control Module | On left side of luggage compartment. |
| Servotronic Control Module | On 13-fold relay panel. See Figure . |
| Speech Input Control Module | Behind right side of dash, on support bracket. |
| Steering Column Belt Height Adjustment Control Module | Behind right side of dash, on support bracket. See Figure . |
| Telephone/Telematic Control Module | Behind lower right side of dash. See Figure . |
| Tire Pressure Monitoring Control Module | Behind carpet, on left side of luggage compartment. See Figure . |
| Transmission Control Module | In front of passenger seat, below carpet, in protection box. |
| Ultra-Sound Sensor Control Module | Mounted below left "C" pillar. See Figure . |
