Component Locations

To locate engine performance related components, use following illustrations.

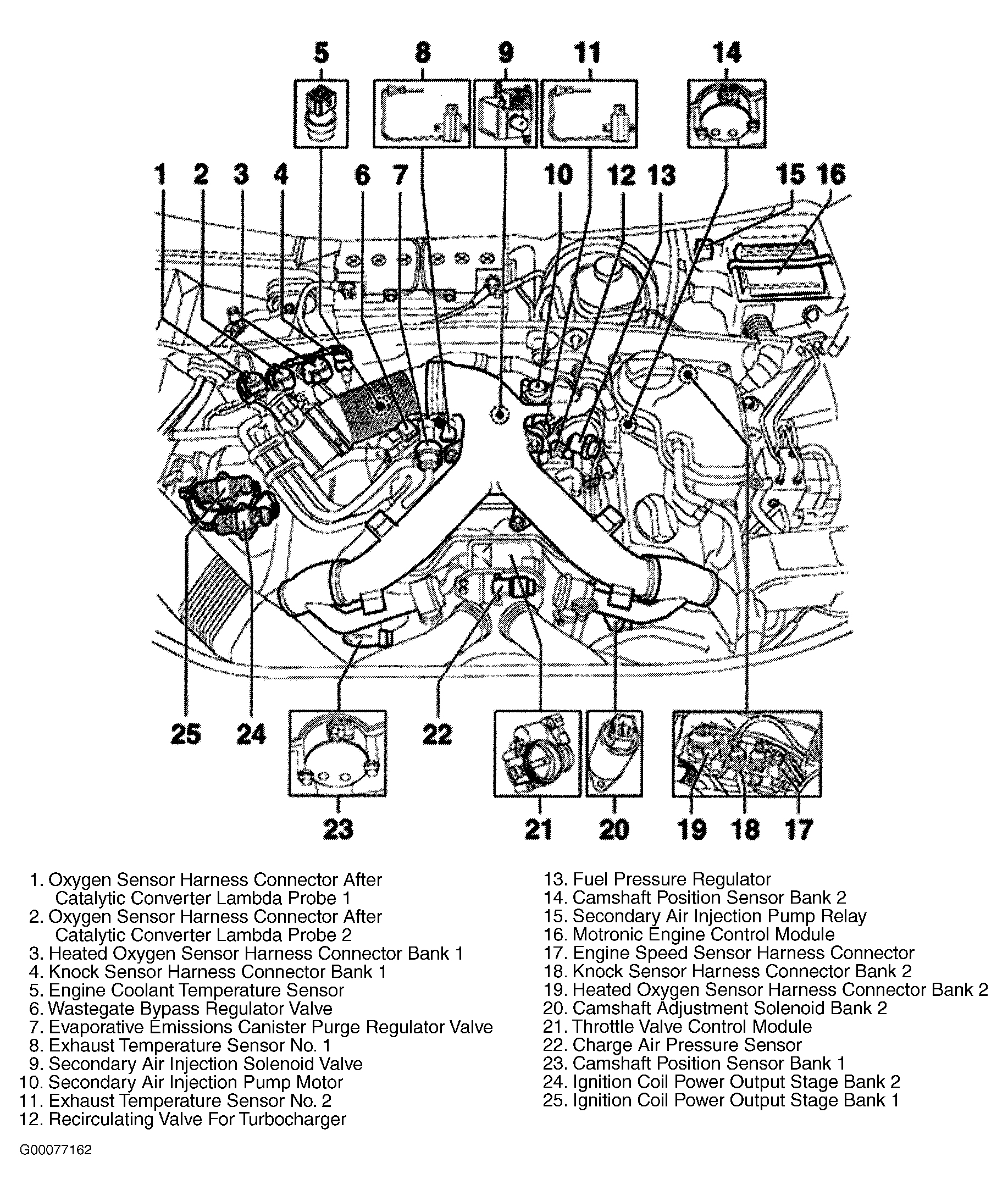

Fig 1: Identifying Engine Performance Related Components (2.7 L - 1 Of 2)

Courtesy of AUDI OF AMERICA, INC.

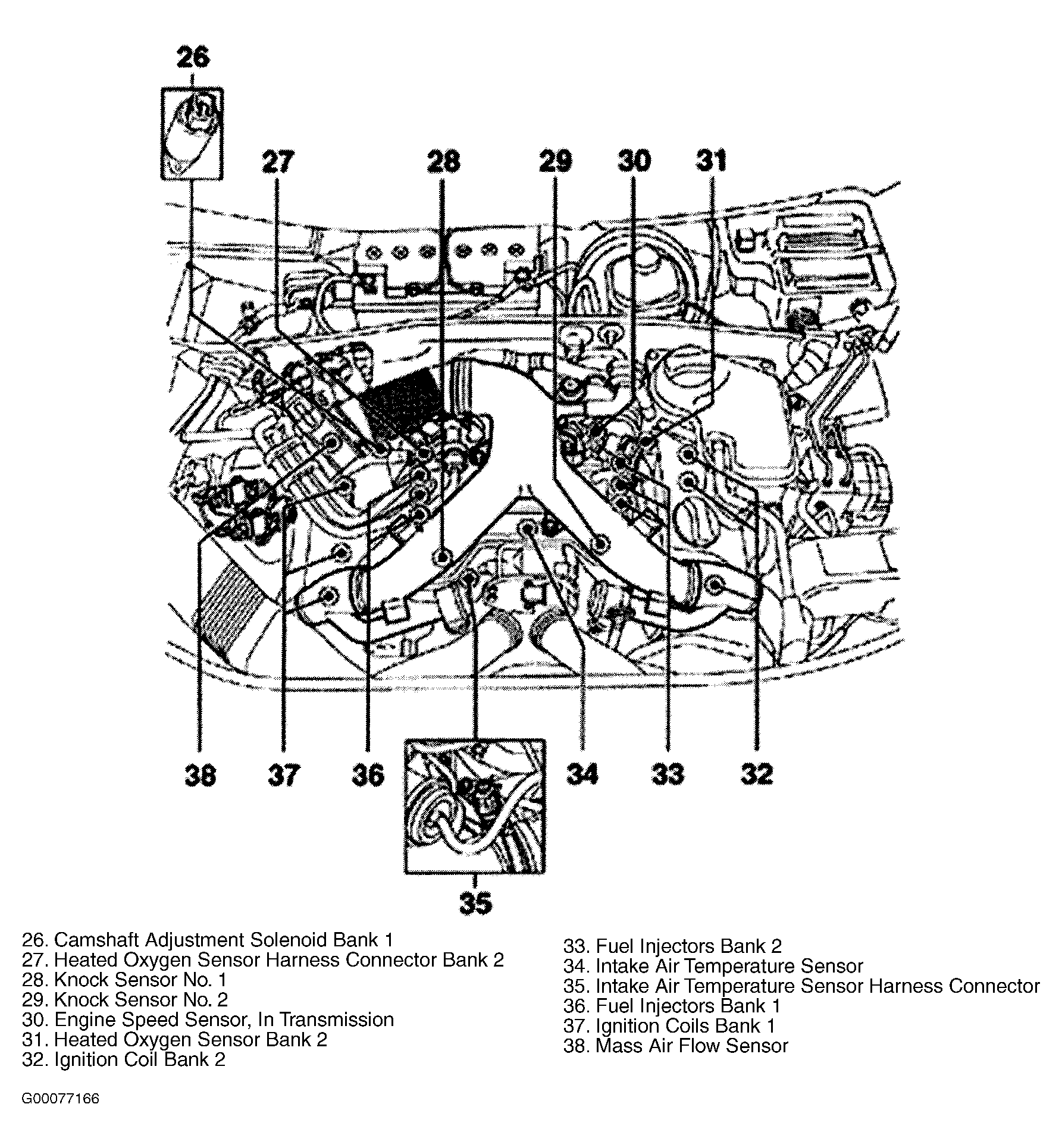

Fig 2: Identifying Engine Performance Related Components (2.7L - 2 Of 2)

Courtesy of AUDI OF AMERICA, INC.

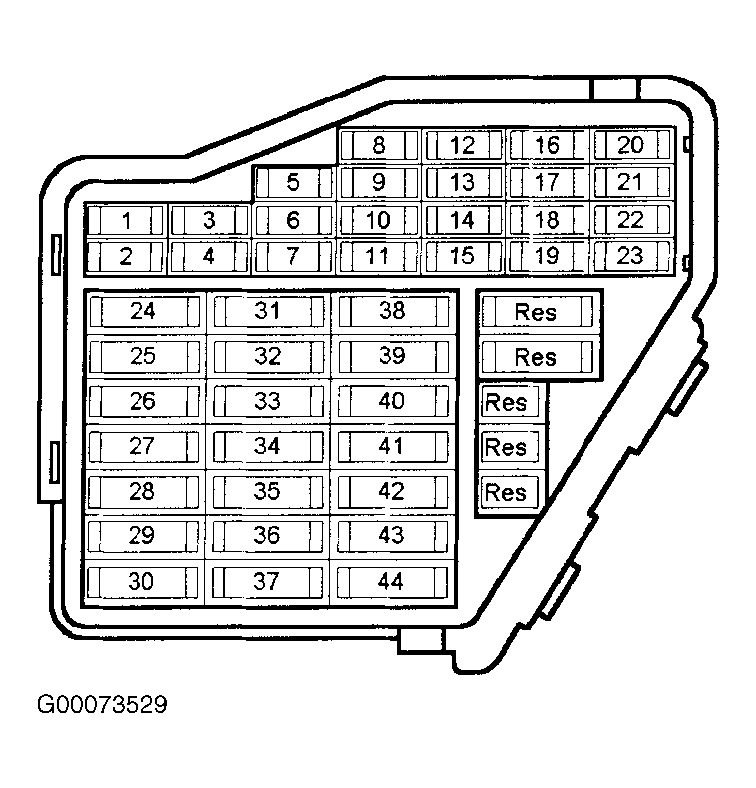

Fig 3: Identifying Fuses In Fuse Box (S4)

Courtesy of AUDI OF AMERICA, INC.
