Headlights, adjusting: Continuation

Indicated on display

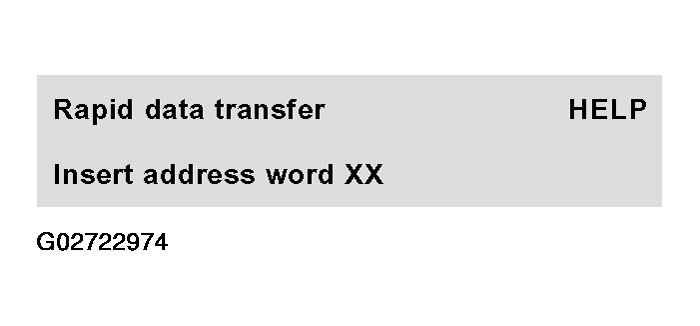

Fig 1: VAG 1551 Scan Tool Display - Continuation (9 Of 16)

Courtesy of AUDI OF AMERICA, INC.

Press buttons -0- and -4- to select "Basic Setting" function 04 and press -Q- button to confirm input.

Indicated on display

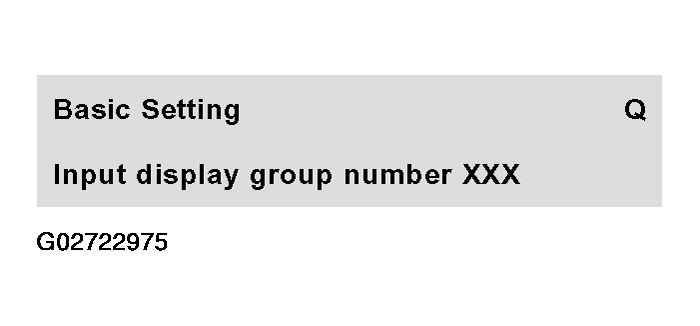

Fig 2: VAG 1551 Scan Tool Display - Continuation (10 Of 16)

Courtesy of AUDI OF AMERICA, INC.

Press buttons -0-, -0- and -1- to input display group number 1 (001) and press -Q- button to confirm input.

Indicated on display

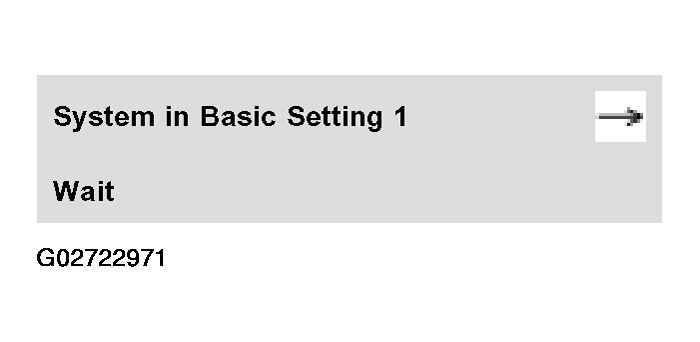

Fig 3: VAG 1551 Scan Tool Display - Continuation (11 Of 16)

Courtesy of AUDI OF AMERICA, INC.

The headlights move into adjustment position.

Indicated on display

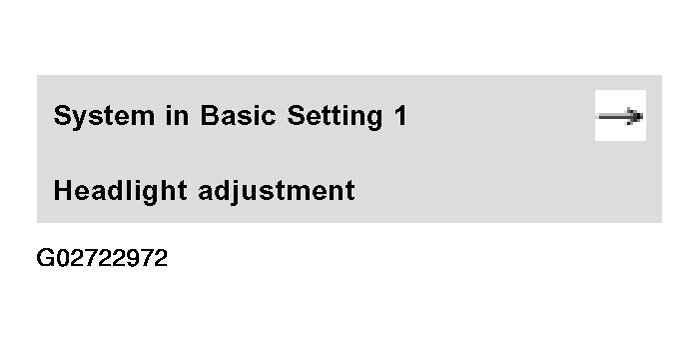

Fig 4: VAG 1551 Scan Tool Display - Continuation (12 Of 16)

Courtesy of AUDI OF AMERICA, INC.

NOTE: The headlights are now in the adjustment position. Turn on the headlights. Basic setting 1 switches off control operation, and "Headlights not set" appears in the display.

Using Phillips-head screwdriver or hex wrench turn adjustment screws -1- and -2- with same number of turns in same direction, until headlight beam is OK.
CAUTION: Adjustment screws -1- and -2- must be turned with the same number of rotations and always in the same direction.

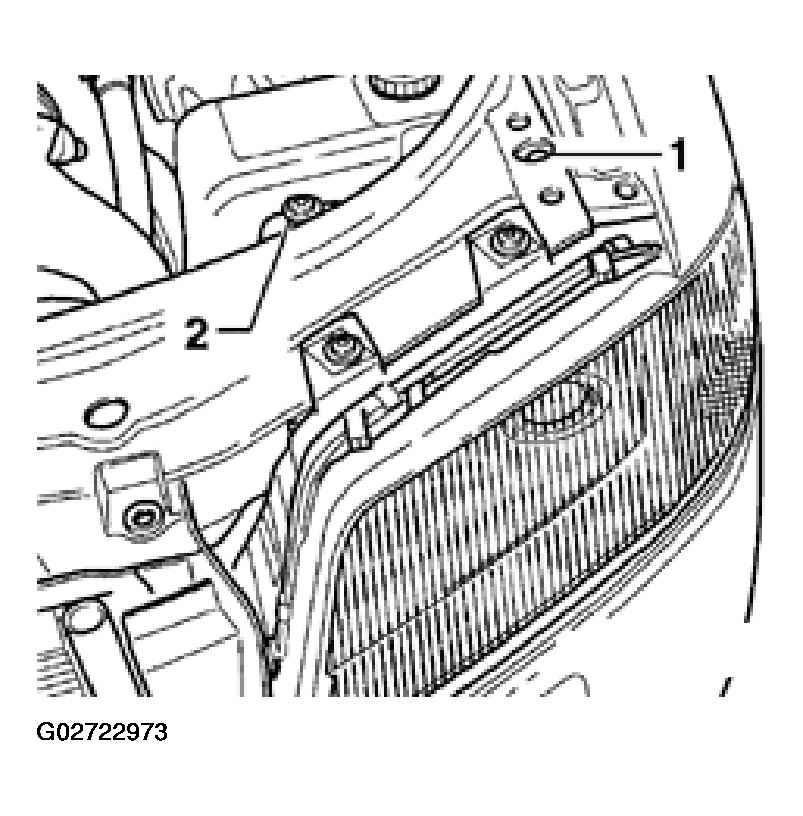

Fig 5: Locating Adjustment Screws - High-Intensity Gas Discharge (Xenon) Headlights

Courtesy of AUDI OF AMERICA, INC.

Press --> button.

Indicated on display

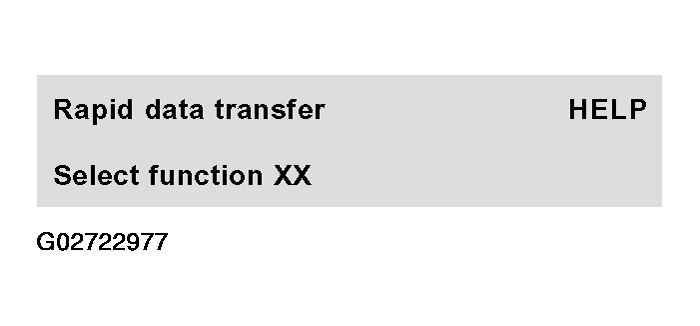

Fig 6: VAG 1551 Scan Tool Display - Continuation (13 Of 16)

Courtesy of AUDI OF AMERICA, INC.

Press buttons -0- and -4- to select "Basic Setting" function 04 and press -Q- button to confirm input.

Indicated on display

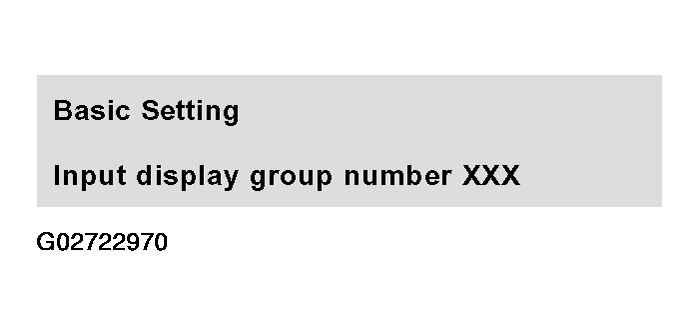

Fig 7: VAG 1551 Scan Tool Display - Continuation (14 Of 16)

Courtesy of AUDI OF AMERICA, INC.

Press buttons -0-, -0- and -2- to input display group number 2 (002) and press -Q- button to confirm input.

Indicated on display

Fig 8: VAG 1551 Scan Tool Display - Continuation (15 Of 16)

Courtesy of AUDI OF AMERICA, INC.

NOTE: The control module has now learned the position as the "control position." The entry in DTC memory "Headlights not set" is erased and the control operation begins again.

Press --> button.

Indicated on display

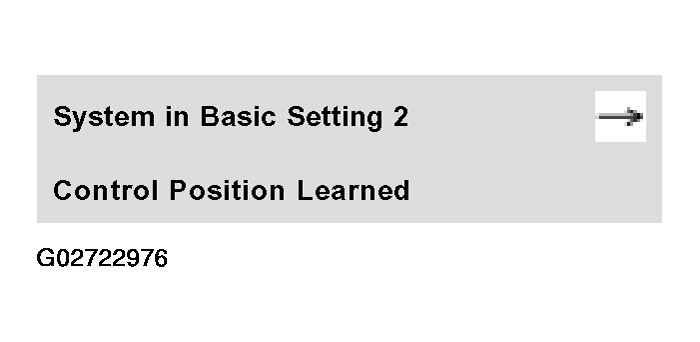

Fig 9: VAG 1551 Scan Tool Display - Continuation (16 Of 16)

Courtesy of AUDI OF AMERICA, INC.

Press buttons -0- and -6- to select "End Output" function 06 and press -Q- button to confirm input.
