Firing Order

NOTE: For firing order, refer to appropriate illustration.

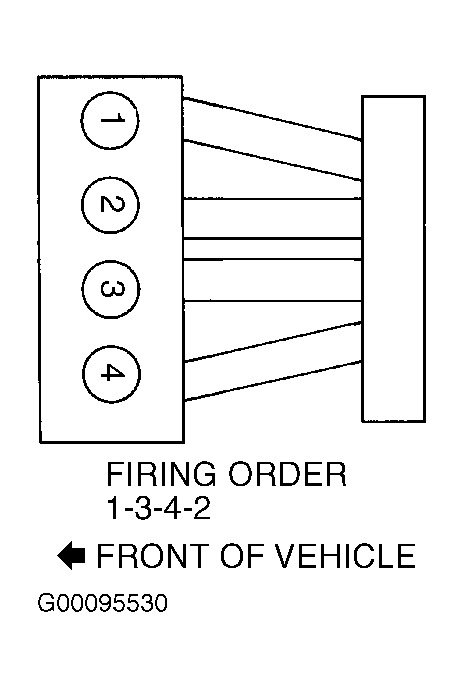

Fig 1: 1.8L Turbo (TT Coupe & Roadster)

Courtesy of AUDI OF AMERICA, INC.

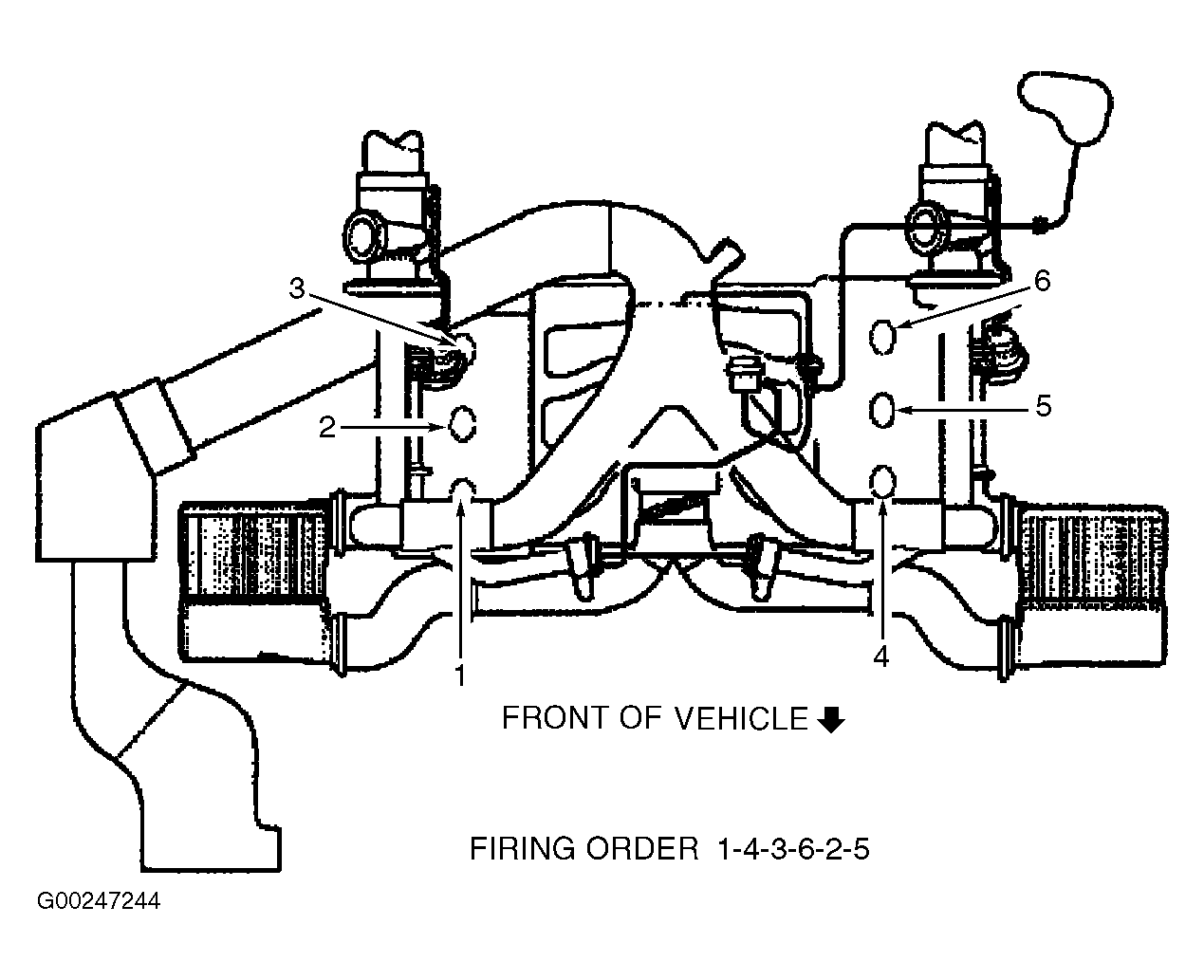

Fig 2: 2.7L BiTurbo

Courtesy of AUDI OF AMERICA, INC.

Fig 3: 3.0L V6

Courtesy of AUDI OF AMERICA, INC.

Fig 4: 4.2L V8

Courtesy of AUDI OF AMERICA, INC.
