Additional Vehicle Data

The additional vehicle data is intended to speed up and permit more accurate diagnosis in the event of minor accident. A slight deviation from the data, with no obvious detriment to performance does not automatically represent a problem. For production reasons, this data may sometimes be outside the tolerances stated even in the case of a new vehicle.

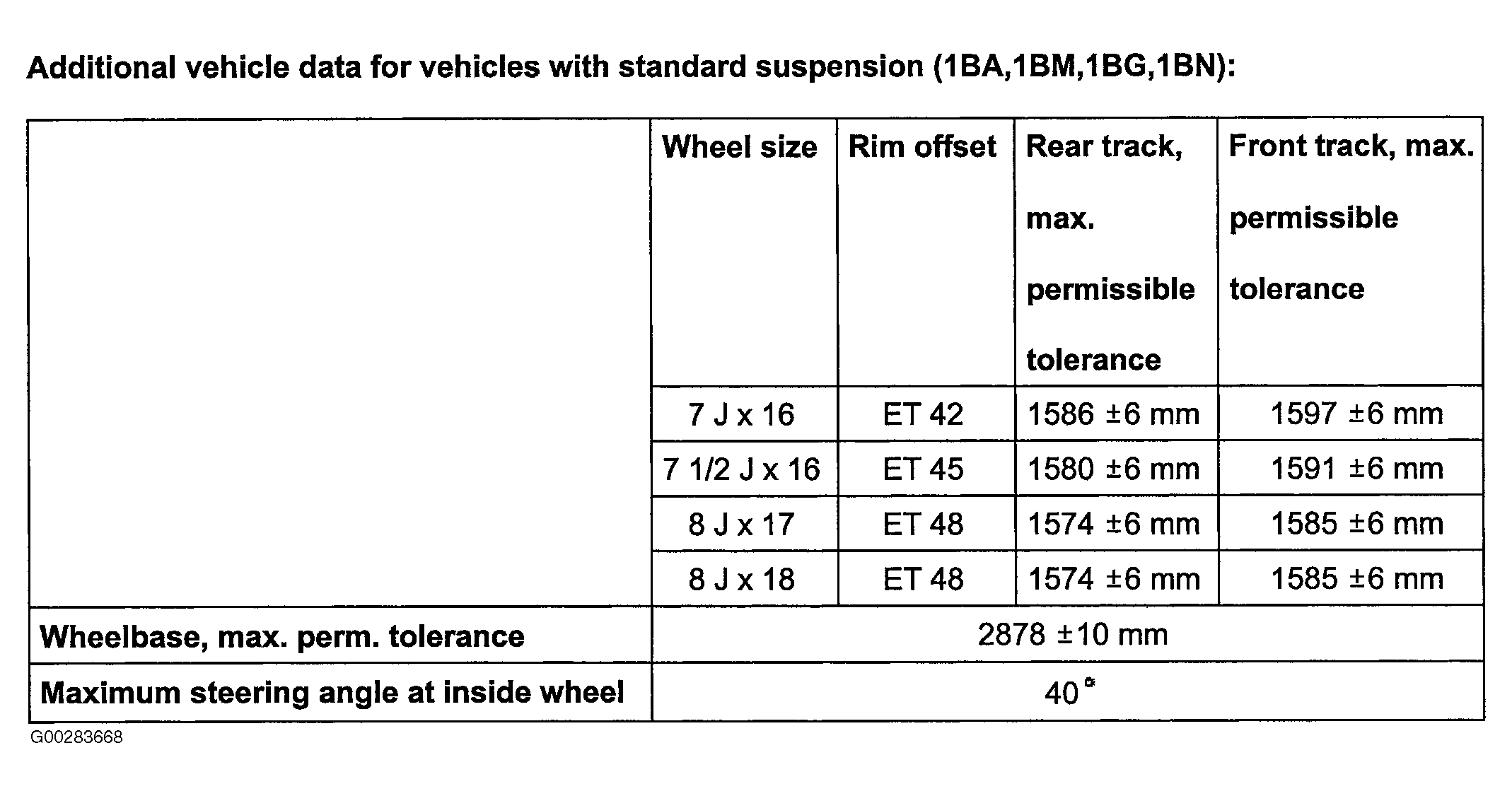

Fig 1: Additional Vehicle Data - Standard Suspension (1BA, 1BM, 1BG & 1BN)

Courtesy of AUDI OF AMERICA, INC.

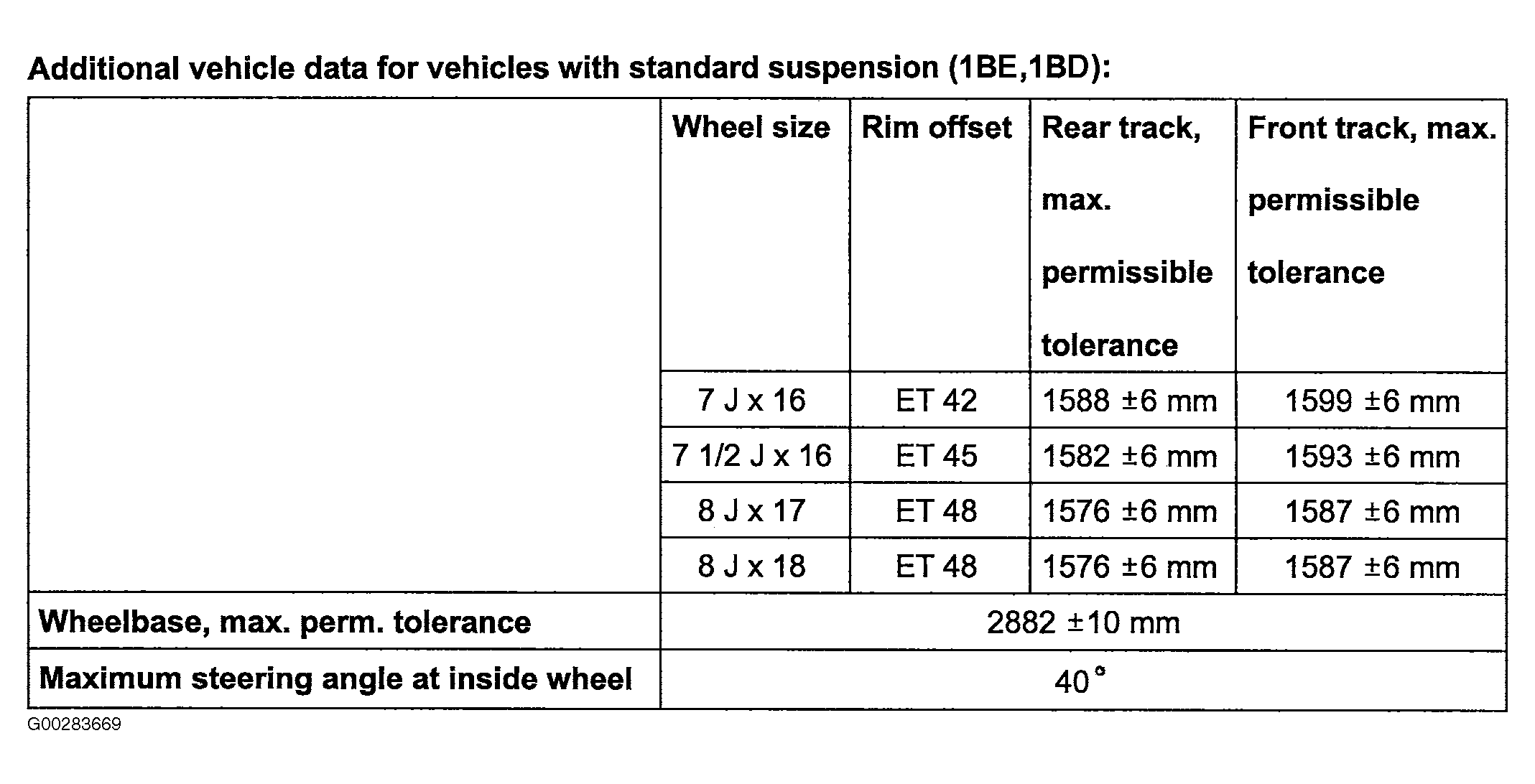

Fig 2: Additional Vehicle Data - Sports Suspension (1BE & 1BD)

Courtesy of AUDI OF AMERICA, INC.

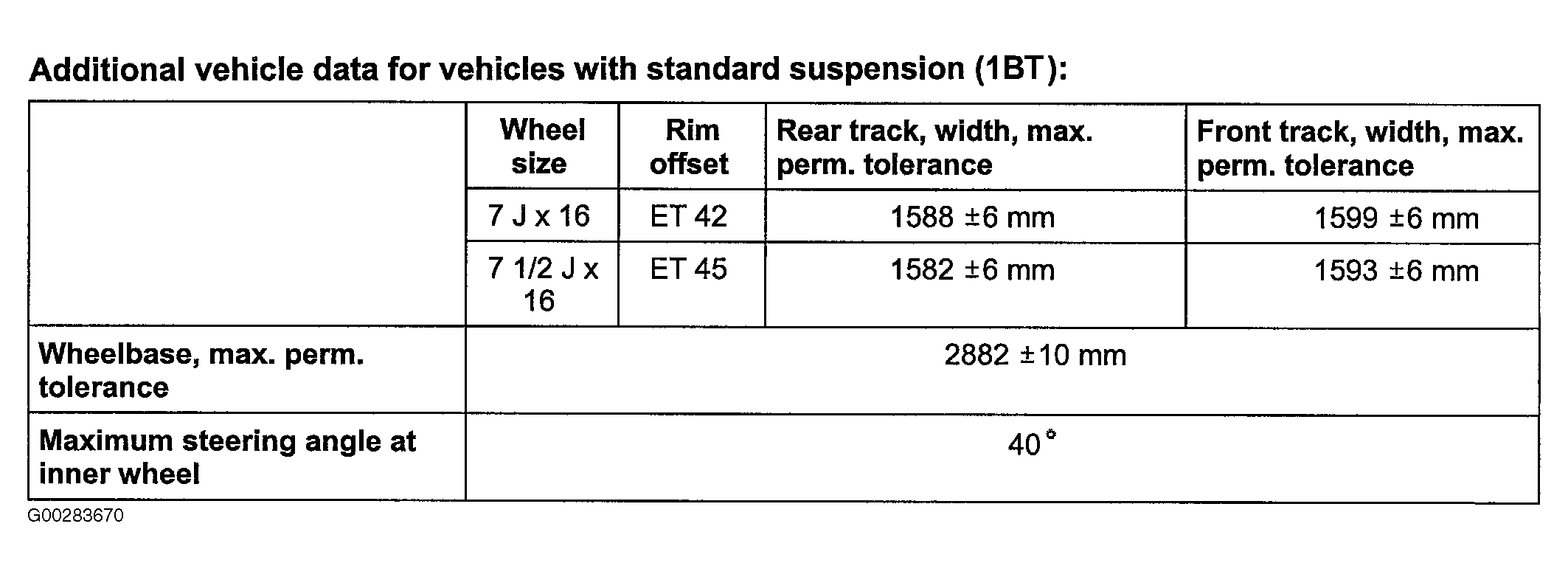

Fig 3: Additional Vehicle Data - Sports Suspension (1BT)

Courtesy of AUDI OF AMERICA, INC.
