Check phase position of CMP sensor
- Connect testing and information system VAS5051. See VEHICLE DIAGNOSTIC, TESTING AND INFORMATION SYSTEM VAS5051, CONNECTING AND SELECTING FUNCTIONS . Select vehicle system "01 - Engine electronics". Engine must be running at idling speed.
Display on VAS5051:

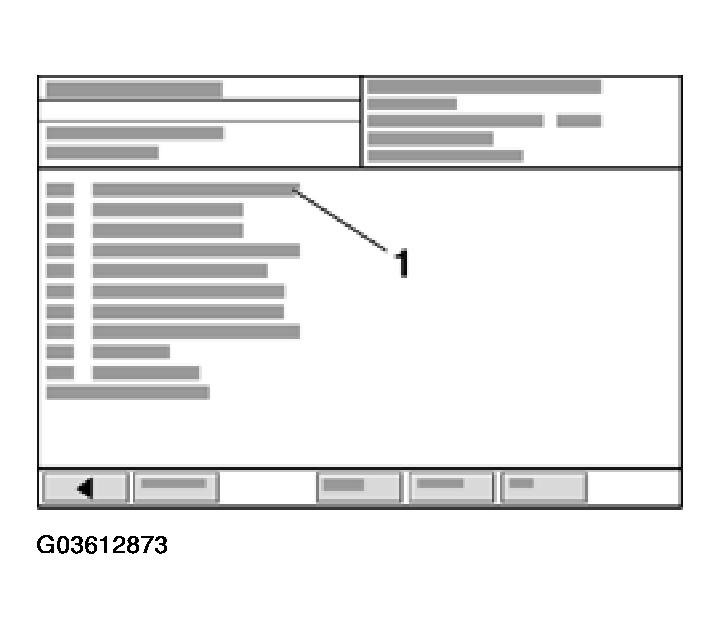

- Under -1- select diagnostic function "08 - Read measured value block".
Display on VAS5051:
- - Enter display group

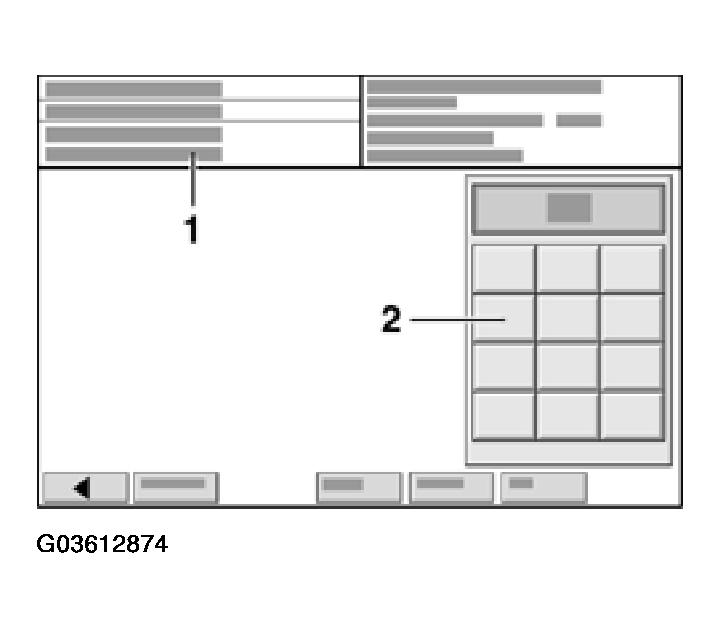

- Enter "093" for "display group number 093" in zone -2- and confirm entry by pressing -Q- button.
Display on VAS5051:

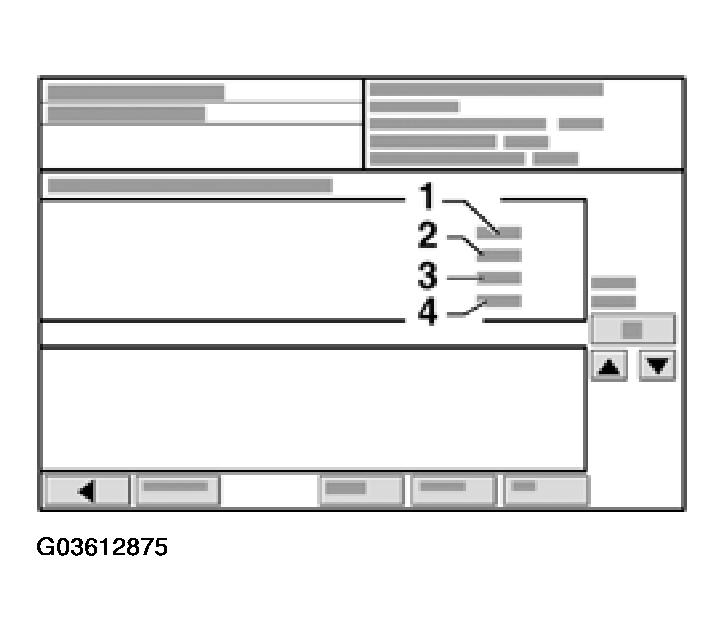

- Check indication in display fields -1- to -4-.DISPLAY GROUP 093: PHASE LOCATIONS OF CMP SENSORS (BANK 1 AND BANK 2), ENGINE IDLING
Display zones 1 2 3 4 Display group 093: Phase locations of CMP sensors (Bank 1 and Bank 2), engine idling Display ° CA ° CA ° CA ° CA Display Phase location, intake Bank 1 Phase location, intake Bank 2 Phase location, exhaust Bank 1 Phase location, exhaust Bank 2 Specif. value -20...32 ° CA -20...32 ° CA -20...32 ° CA -20...32 ° CA Note: If the specified values are exceeded significantly in the two CMP sensors of one cylinder bank, the connectors for the CMP sensors of that cylinder bank are interchanged .
If the specified values for one CMP sensor are exceeded, check CMP sensor and camshaft adjustment . See CAMSHAFT ADJUSTMENT, CHECKING . - Exit function "08 - Read measured value block" by pressing --> button.
