Electrically adjustable, steering column, assembly overview

The steering column is only available as a complete unit for a replacement part. Servicing is not possible.

Steering lock housing can be modified.

The following list pertains to Fig 1.

1. Shear bolt, 20 Nm
2. Steering column
3. Ignition/starter switch
   1. Different versions
   2. See Parts Catalog
4. Bolt, 22 Nm
5. Secure for transport
6. Control module for steering column-belt height adjustment -J352-
   • No self-diagnosis capability
   NOTE: Sliding splining between upper and lower steering column must not be separated under any circumstances.

   Sliding over a range in excess of +/- 5 cm can lead to damage of the steering column.

7. Tolerance adjusting screw
   1. Tightening torque: 22 Nm
   • Provided with electrically adjustable steering column
   • All 4 bolts for attaching steering column to cross member must have been tightened to torque, before tightening tolerance adjusting screw
   • Do not apply force to steering column or steering wheel while tightening tolerance adjusting screw

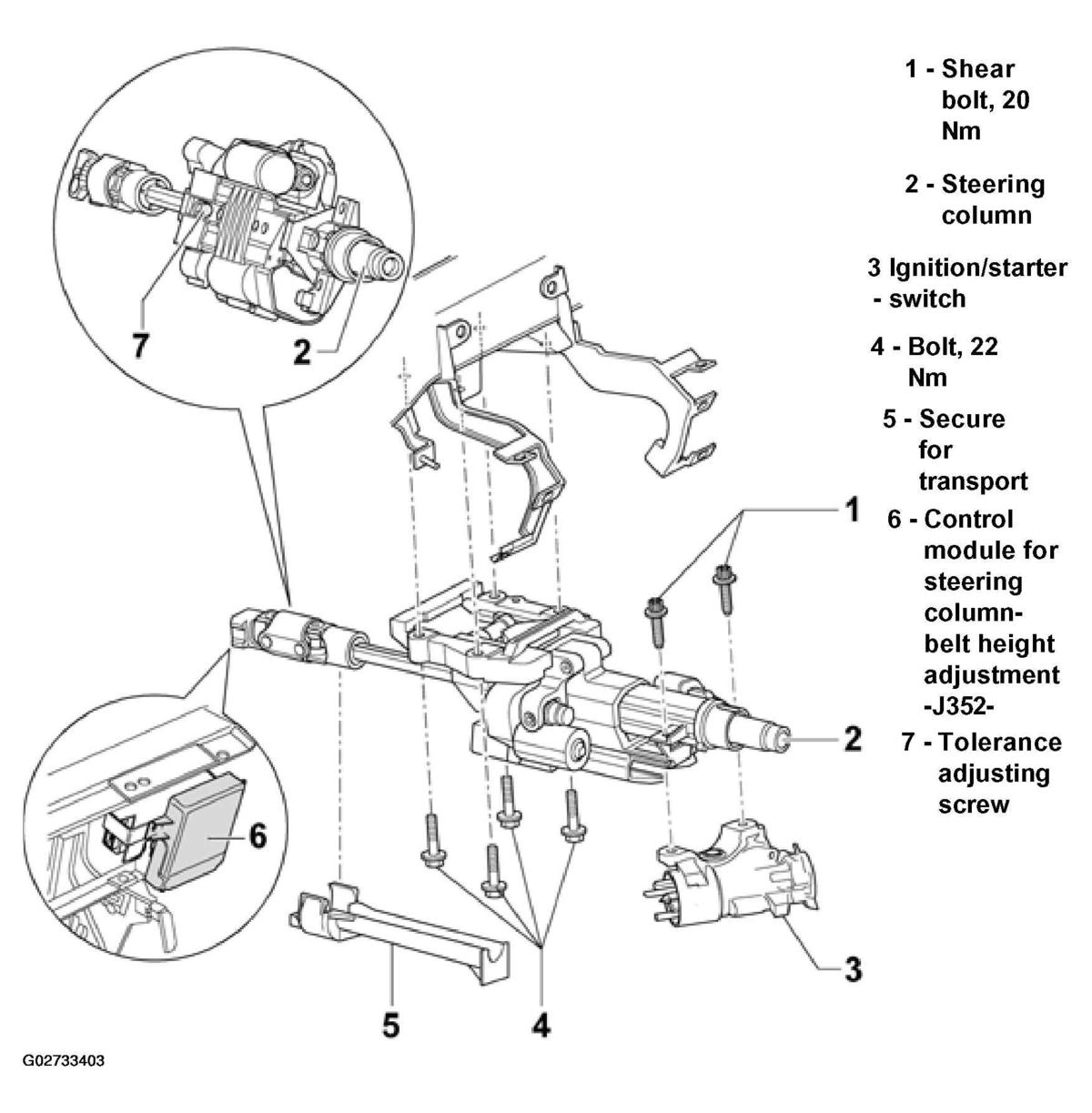

Fig 1: View Of Electrically Adjustable Steering Column Assembly
Courtesy of AUDI OF AMERICA, INC.
