Drive Belt Routing

NOTE: Serpentine belt is self-adjusting. For drive belt routing, see Fig 1-Fig 3 .

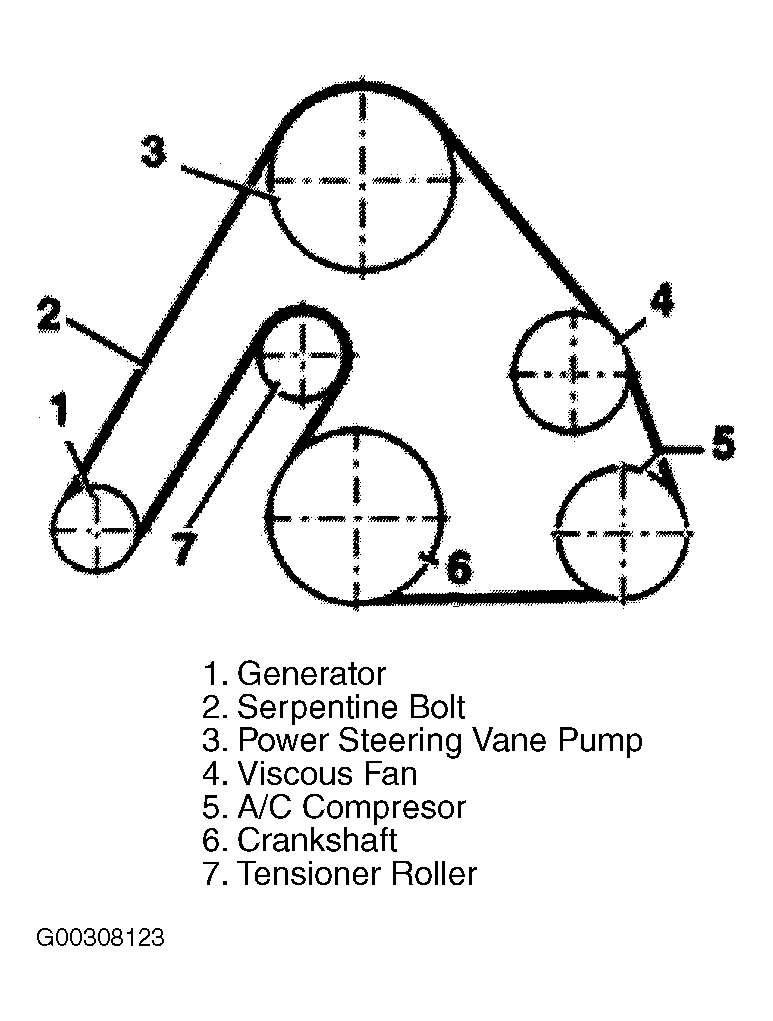

Fig 1: Drive Belt Routing (2.7L & 3.0L)

Courtesy of AUDI OF AMERICA, INC.

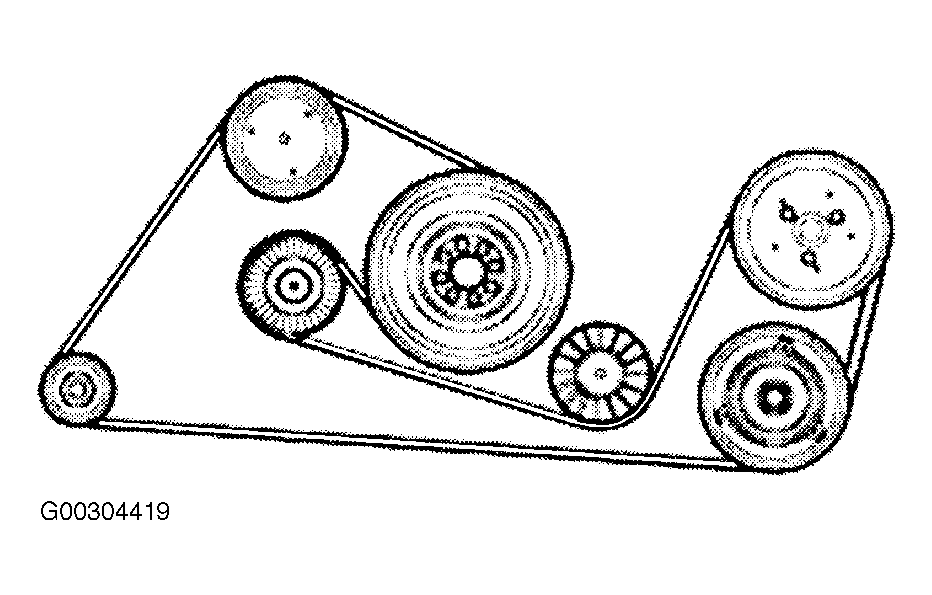

Fig 2: Drive Belt Routing (4.2L - AWN, BBD & BAS)

Courtesy of AUDI OF AMERICA, INC.

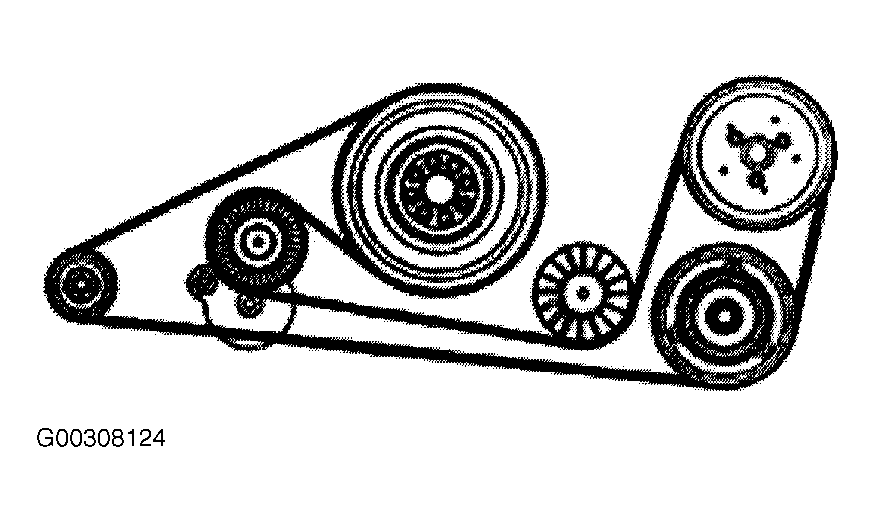

Fig 3: Drive Belt Routing (4.2L - BCY)

Courtesy of AUDI OF AMERICA, INC.
