ABS/ESP, component overview

The following list pertains to Fig 1 .

1. Hydraulic pump for traction control -V156- for ESP
2. Sender 1 for brake booster -G201- in driving dynamic control - pump for ESP
3. ABS return flow pump relay -J105- Bosch 5.3
4. ABS Solenoid Valve Relay -J106- Bosch 5.3
5. ABS Hydraulic Unit -N55- with ABS control module (w/EDL) -J104-
6. ABS Control Module (w/EDL) -J104- Bosch 5.0
   • Installed position in instrument cluster
7. Brake fluid level warning switch -F34-
8. Rotor for right front ABS wheel speed sensor
   • Checking, see ABS WHEEL SPEED SENSOR ROTOR, CHECKING  , and AXLE SHAFTS and SUSPENSION - FRONT
9. Right front ABS wheel speed sensor -G45-
   • Removing and installing, see ABS WHEEL SPEED SENSOR, REMOVING AND INSTALLING
10. ABS Control Module (w/EDL) -J104- for ESP
    • Installed position in instrument cluster
11. Steering Angle Sensor -G85- for ESP
    • Installation location: installed on steering column
    • Removing and installing

      See STEERING .

12. Anti-Slip Control Switch -E132-
    • Installed position at center console
13. Steering angle sensor -G85-
    • In one housing with airbag spiral spring
    • Removing and installing, see STEERING ANGLE SENSOR -G85-, REMOVING AND INSTALLING
14. Parking brake warning light switch -F9-
    • Installed position at parking brake assembly
15. Rotor for right rear ABS wheel speed sensor
    • Rotor is welded to wheel hub. Removing and installing

    See SUSPENSION - REAR .

16. Right rear ABS wheel speed sensor -G44-
    • Removing and installing, see ABS WHEEL SPEED SENSOR, REMOVING AND INSTALLING
17. Left rear ABS wheel speed sensor -G46-
    • Removing and installing, see ABS WHEEL SPEED SENSOR, REMOVING AND INSTALLING
18. Rotor for left rear ABS wheel speed sensor
    • Checking, see ABS WHEEL SPEED SENSOR ROTOR, CHECKING
    • Rotor is welded to wheel hub. Removing and installing

    See SUSPENSION - REAR .

19. Sensor for transverse acceleration -G200-
    • New version with sensor for rotation rate -G202- in one housing
    • Removing and installing, see SENSOR FOR TRANSVERSE ACCELERATION -G200- AND SENDER FOR ROTATION RATE -G202-, REMOVING AND INSTALLING
20. Sender for rotation rate -G202-
    • Removing and installing, see SENSOR FOR TRANSVERSE ACCELERATION -G200- AND SENDER FOR ROTATION RATE -G202-, REMOVING AND INSTALLING
21. ABS return flow pump relay -J105- only for Bosch 5.3
    • Installed position at fuse box
22. ABS Solenoid Valve Relay -J106- 5.3 Bosch 5.3
23. Warning light for brake system -K118-, malfunction symbol
    • Installed position in instrument cluster in Driver Information System (DIS)
24. ABS warning light -K47-
    • Installed position in instrument cluster
25. Parking brake indicator light -K14-
    • Installed position in instrument cluster
26. Traction control indicator light -K86-
    • Installed position in instrument cluster
27. Brake light switch -F-
    • Removing and installing brake light switch, see BRAKE LIGHT SWITCH, REMOVING AND INSTALLING
28. Rotor for front left ABS wheel speed sensor
    • Checking, see ABS WHEEL SPEED SENSOR ROTOR, CHECKING

    See SUSPENSION - FRONT and AXLE SHAFTS .

29. Left front ABS wheel speed sensor -G47-
    • Removing and installing, see ABS WHEEL SPEED SENSOR, REMOVING AND INSTALLING

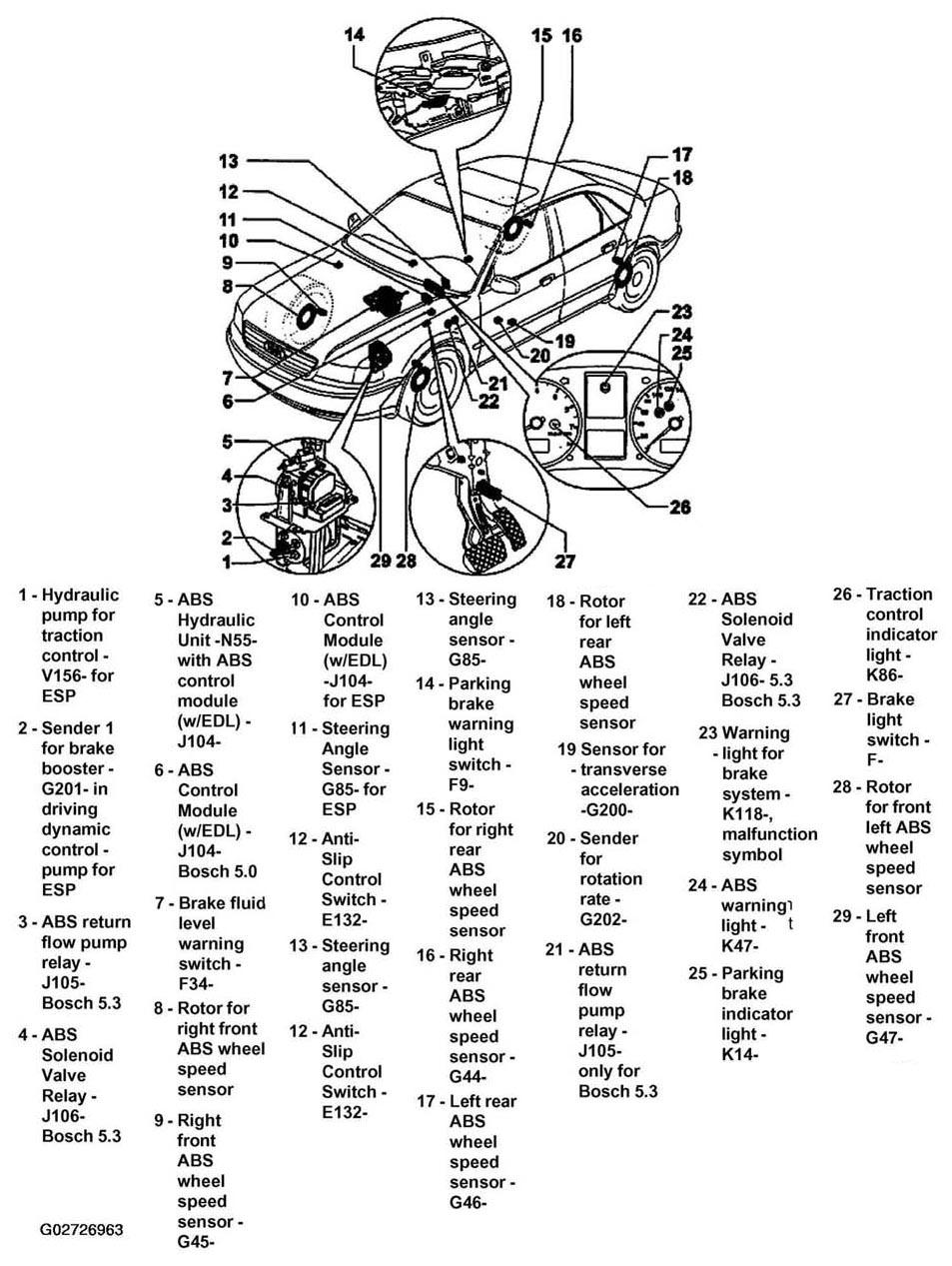

Fig 1: Identifying ABS/ESP Components
Courtesy of AUDI OF AMERICA, INC.
