Drive Belt Routing

NOTE: Serpentine belt is self-adjusting. For drive belt routing, see Fig 1.

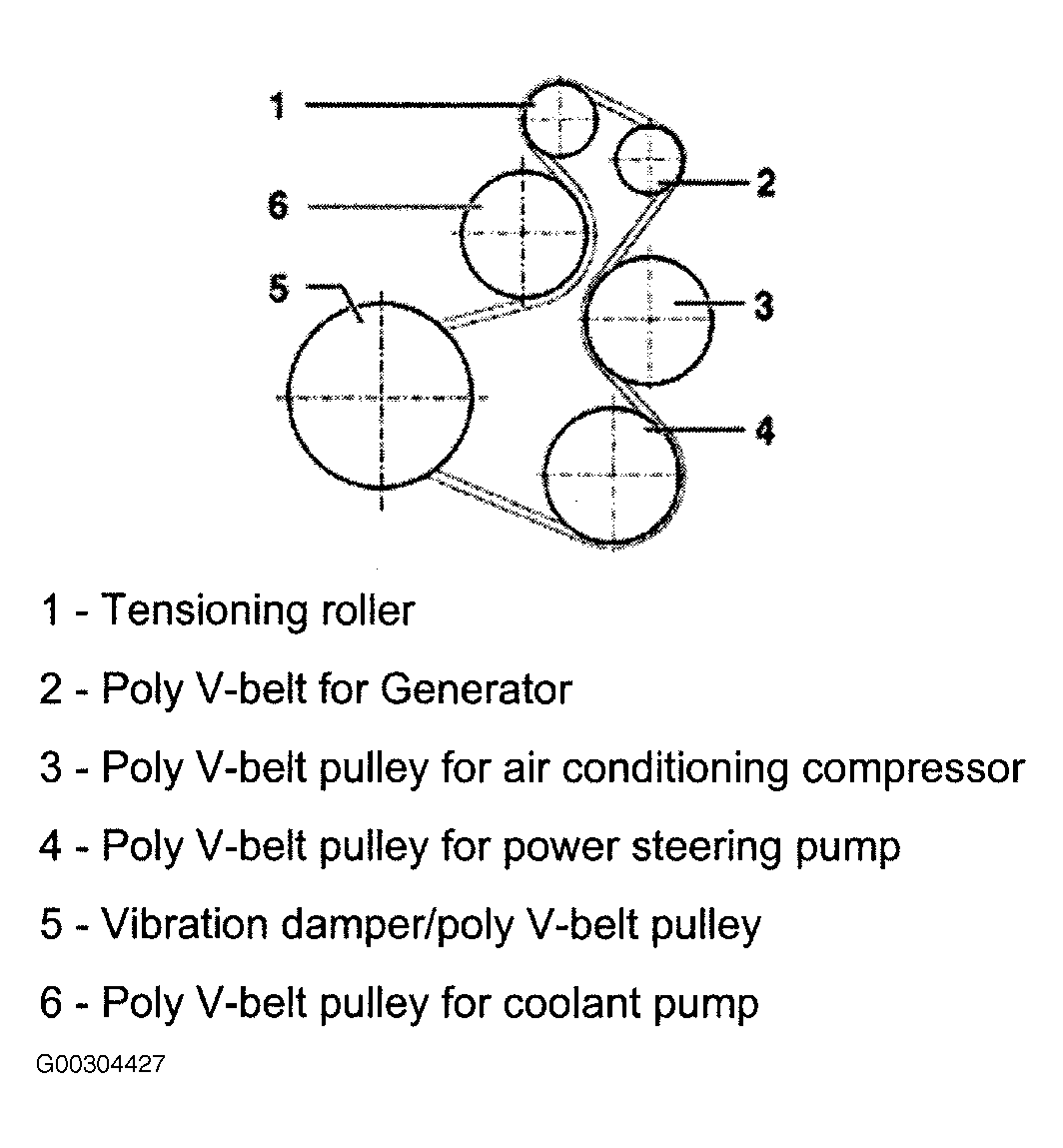

Fig 1: Drive Belt Routing (1.8L)

Courtesy of AUDI OF AMERICA, INC.

Fig 2: Drive Belt Routing (3.2L V6)

Courtesy of AUDI OF AMERICA, INC.
