Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

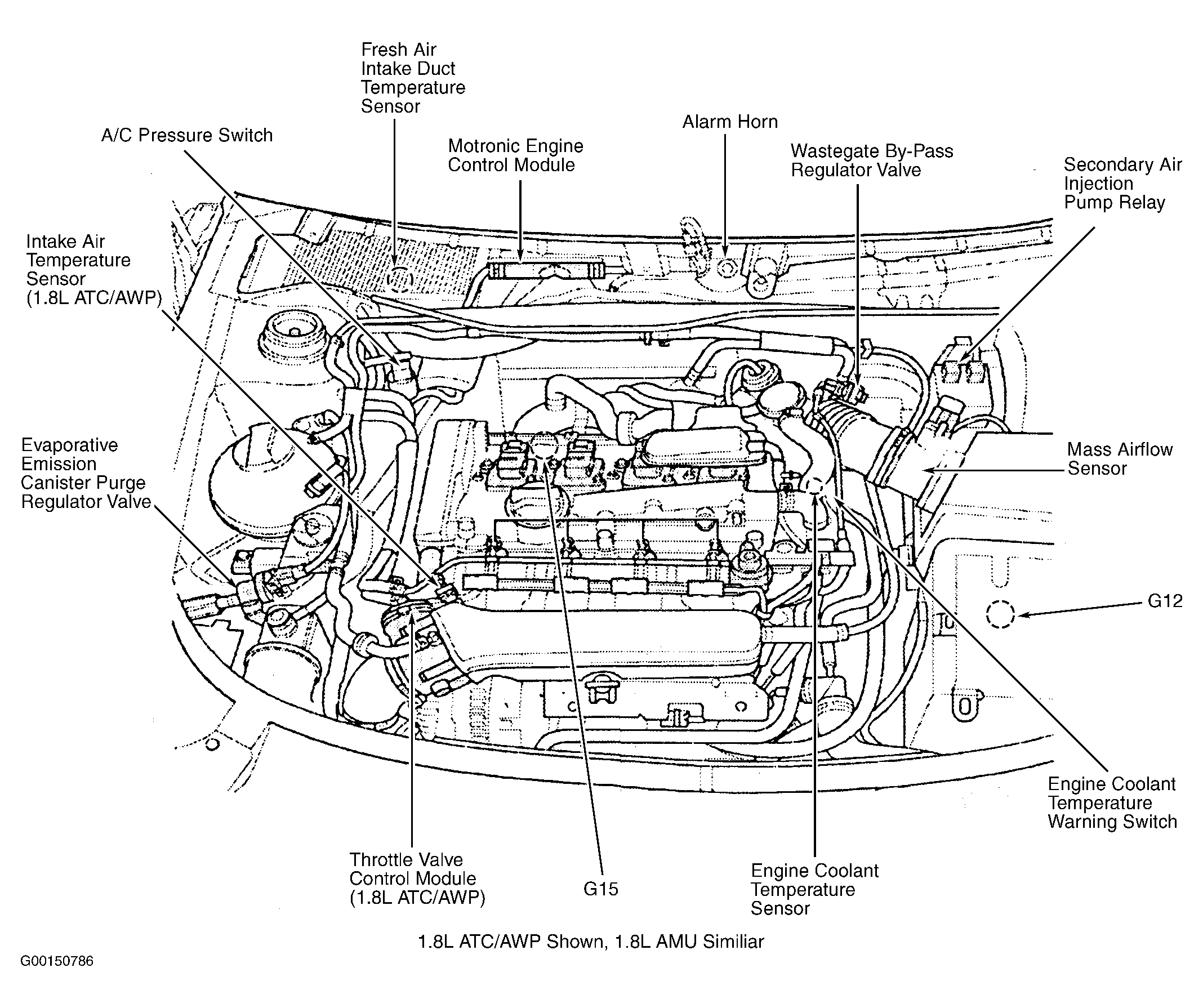

Fig 1: Engine Compartment

Courtesy of AUDI OF AMERICA, INC.

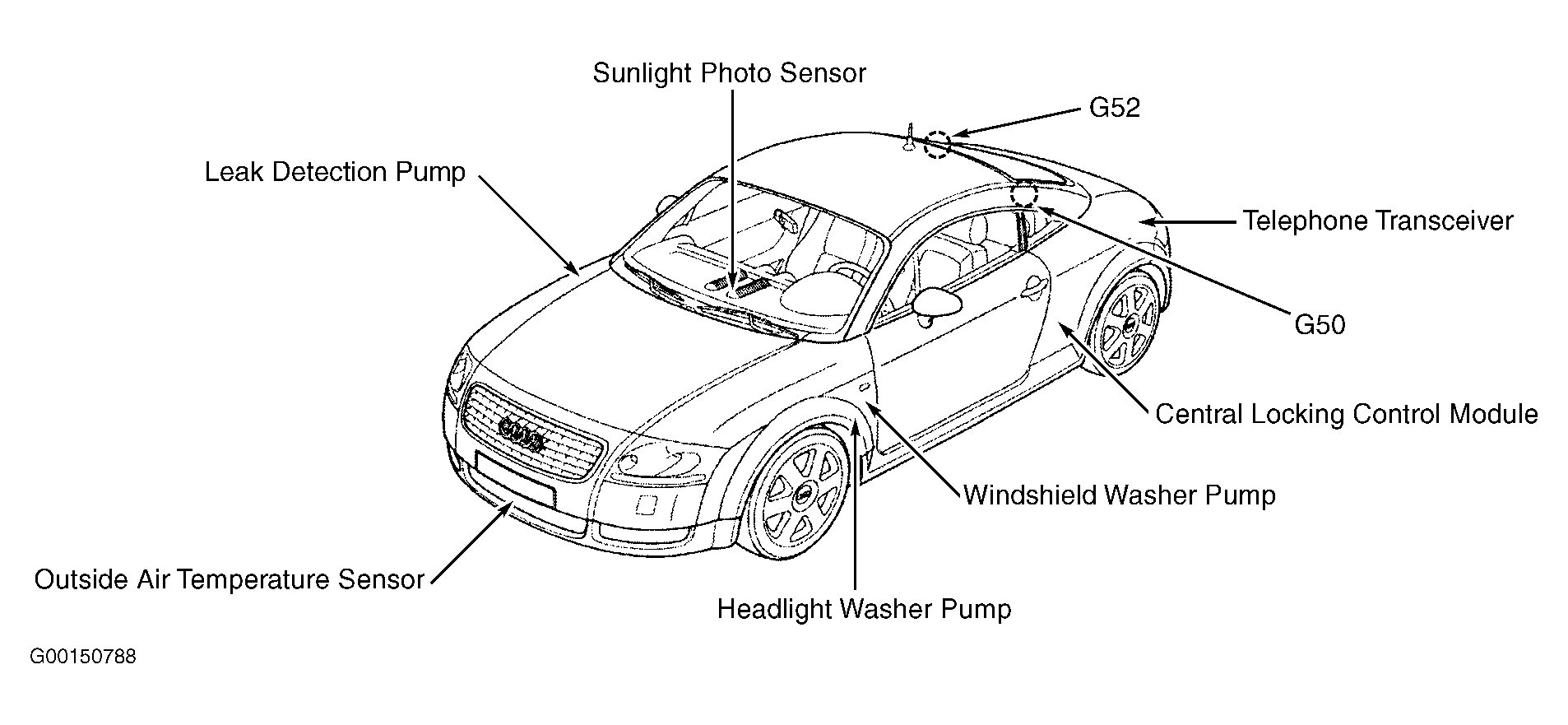

Fig 2: Vehicle Overview

Courtesy of AUDI OF AMERICA, INC.

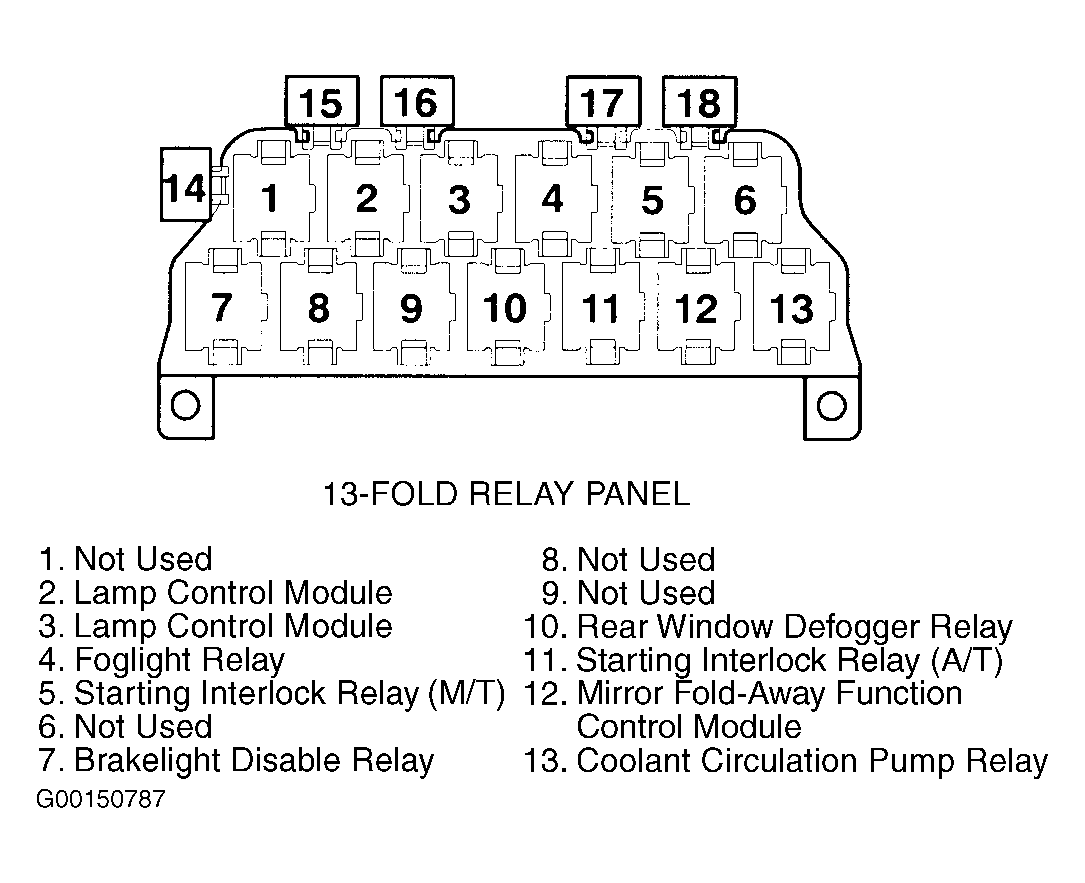

Fig 3: 13-Fold Relay Panel

Courtesy of AUDI OF AMERICA, INC.

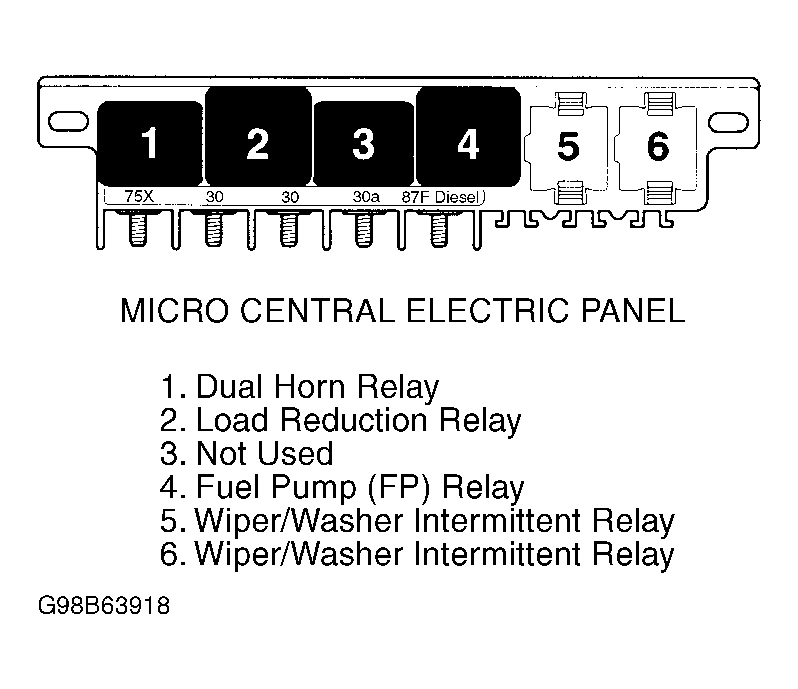

Fig 4: Micro Central Electric Panel

Courtesy of AUDI OF AMERICA, INC.
