Instrument Cluster

Observe notes on contact corrosion. Refer to CONTACT CORROSION .

NOTE:

Do not disassemble instrument cluster.

Removing

-- If the instrument cluster was replaced with the instrument cluster control module -J285-, select the Replace function for the corresponding control module in the Guided Fault Finding or Guided Functions operating mode.

-- Select the function or path

Vehicle brand
	Engine codes
		17 - Instrument cluster
			J285 - Replace control module (repair group 90)

-- Follow the instructions on the Vehicle Diagnosis Tester display.

-- Switch off ignition and remove ignition key.

NOTE:

It is not necessary to remove the steering wheel in order to remove the instrument cluster.

-- Remove the steering wheel and adjustment mechanism completely and lay it down.

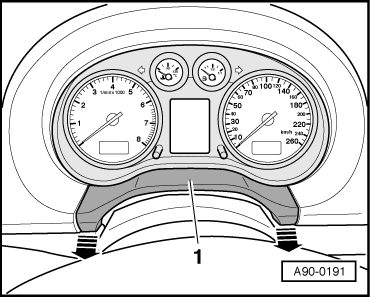

-- Remove gap cover -1- in -direction of arrow-.

Fig 1: Pulling Off Gap Cover

Courtesy of AUDI OF AMERICA, LLC

-- Place gap cover on upper steering column trim.

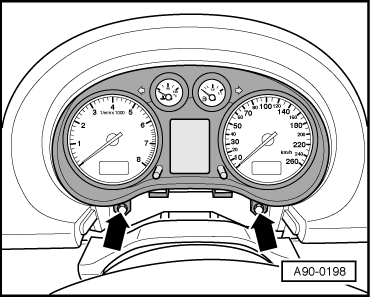

-- Remove screws -arrows-.

Fig 2: Identifying Screws On Instrument Cluster

Courtesy of AUDI OF AMERICA, LLC

-- Pull instrument cluster out until it lies on steering wheel.

-- Release catches of connectors -1-, turn retainer in -direction of arrow- and disconnect the connector.

Fig 3: Identifying Catch And Retainer

Courtesy of AUDI OF AMERICA, LLC

-- Remove instrument cluster to driver's side between steering wheel and instrument cluster.

Installing

Install in reverse order of removal, observing the following:

-- Follow the instructions on the Vehicle Diagnosis Tester display with a new instrument cluster.

Tightening Specifications

Component	Nm
Instrument cluster to instrument panel	3.5
