Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Fuse Panel "B" | Integrated in engine compartment E-box. |
| Main Fuse Panel "D" | Right rear of luggage compartment. |
| Relay Carrier | Integrated in J519 vehicle electrical system control module. |

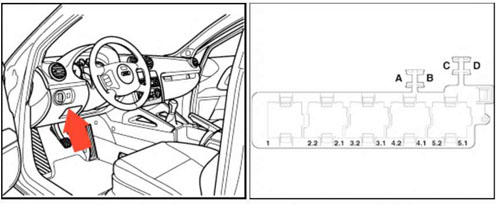

| 5-Position Fuse/Relay Carrier | Under left side of dash. See Figure. |
