Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

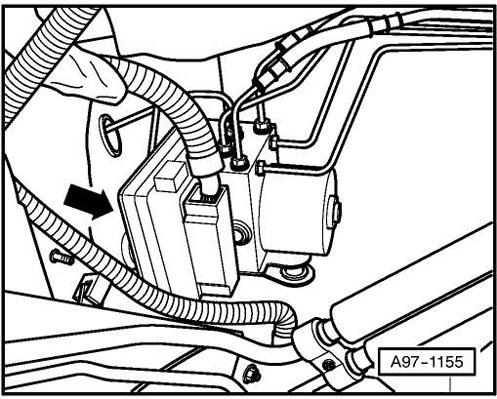

| ABS Control Module | At right rear of engine compartment. See Figure. |

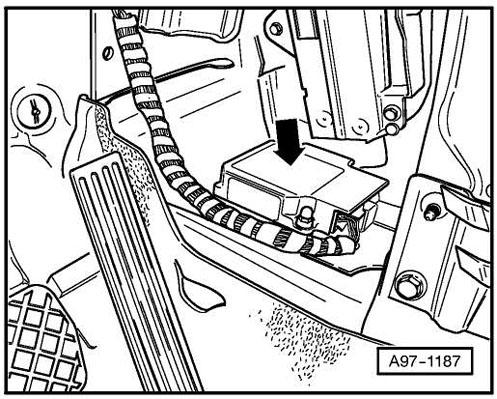

| Airbag Control Module | Under front of center console. See Figure. |
| All-Wheel Drive Control Module (A) | Left front of rear axle differential. See Figure. |

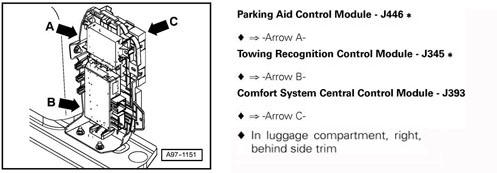

| Comfort System Central Control Module (C) | Right side of luggage compartment. See Figure. |

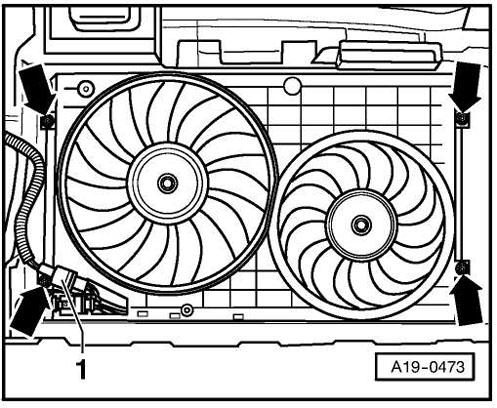

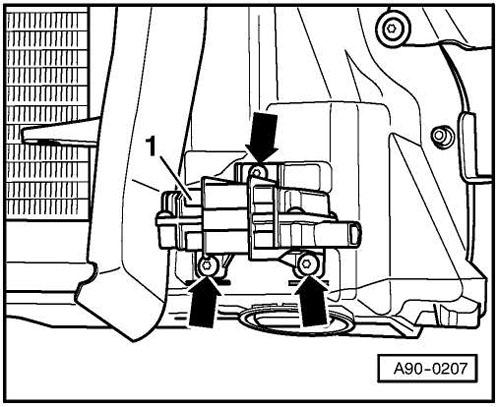

| Coolant Fan Control (FC) Control Module (1) | Front of engine compartment. See Figure. |

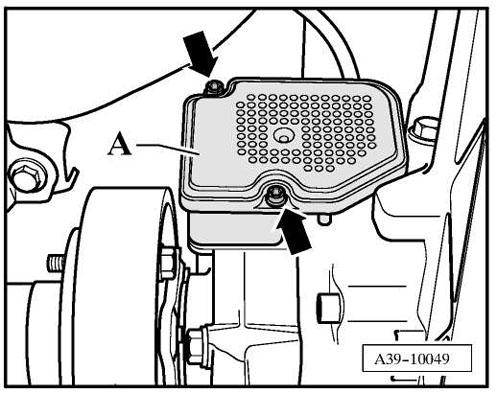

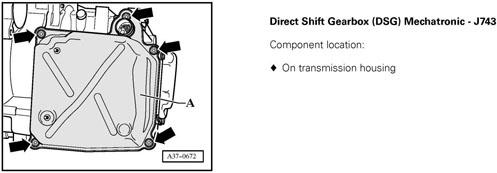

| Direct Shift Gearbox (DSG) Mechatronic | On transmission housing. See Figure. |

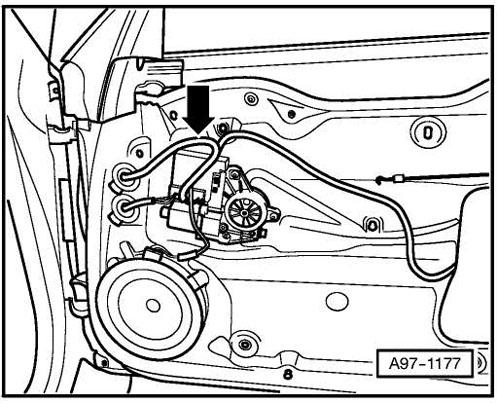

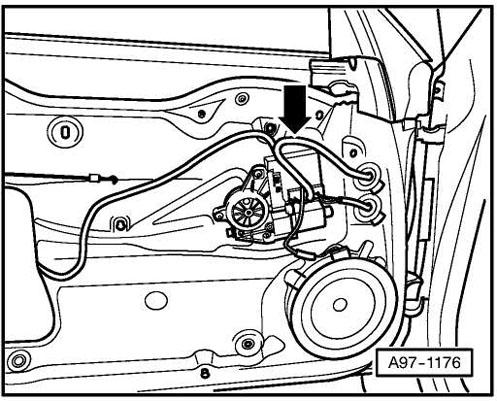

| Door Control Module (Driver's) | Integrated in driver's door window regulator motor. See Figure. |
| Door Control Module (Front Passenger's) | Integrated in right front door window regulator motor. See Figure. |

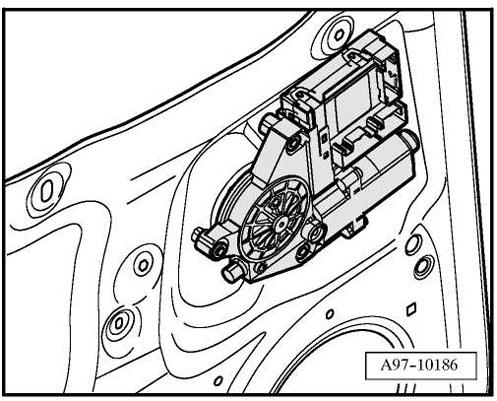

| Door Control Module (Left/Right Rear) | Integrated in respective rear door window regulator motor. See Figure. |

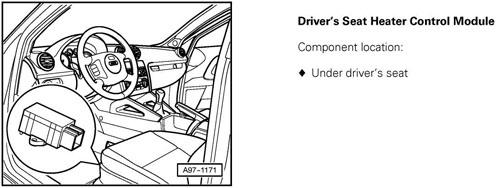

| Driver's Seat Heater Control Module | Under driver's seat. See Figure. |

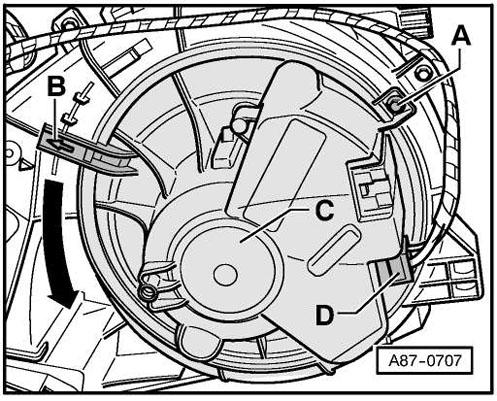

| Fresh Air Blower Control Module (D) | Below right side of dash. See Figure. |

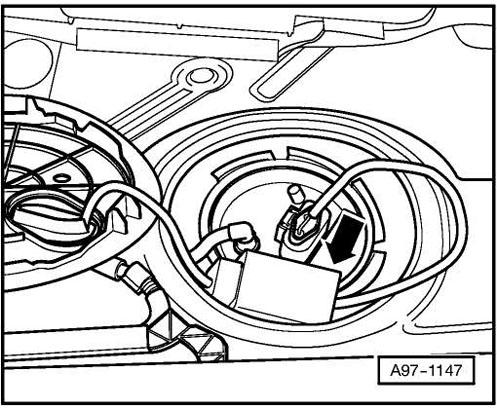

| Fuel Pump (FP) Control Module | Under right side of rear seat. See Figure. |
| Garage Door Opener Control Module (1) | Under front bumper. See Figure. |

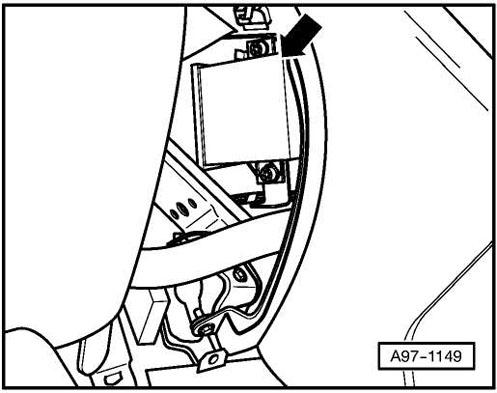

| Headlight Range Control Module | Behind right center of dash. See Figure. |

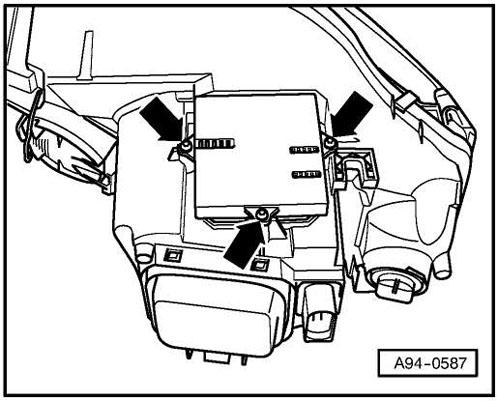

| High Intensity Gas Discharge Light Control Module (Left/Right) | Behind respective headlight assembly. See Figure. |

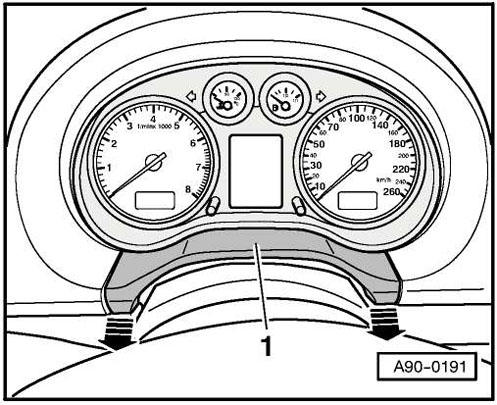

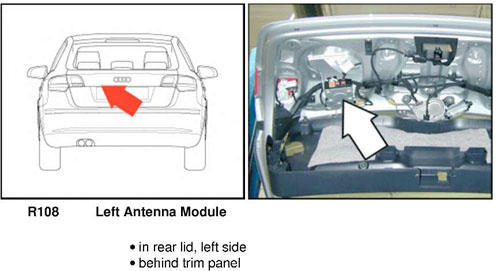

| Instrument Cluster Control Module | Behind instrument cluster. See Figure. |
| Left Antenna Module | Left side of luggage compartment lid. See Figure. |

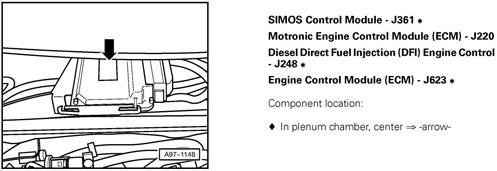

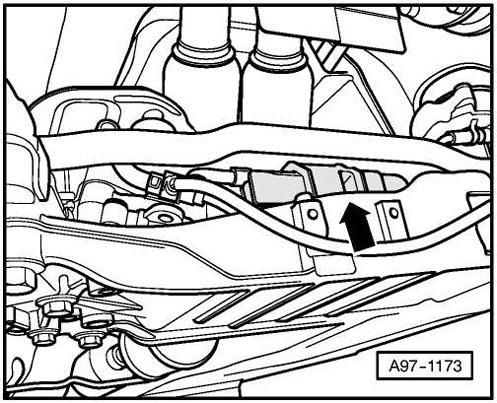

| Motronic Engine Control Module (ECM) | In center of plenum chamber. See Figure. |
| Power Steering Control Module | Below steering rack. See Figure. |

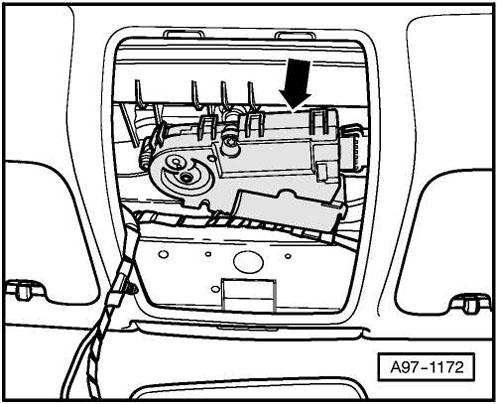

| Power Sunroof Control Module | Front center of roof. See Figure. |

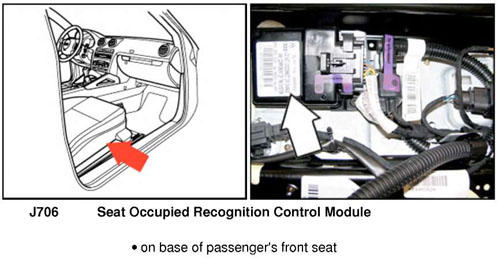

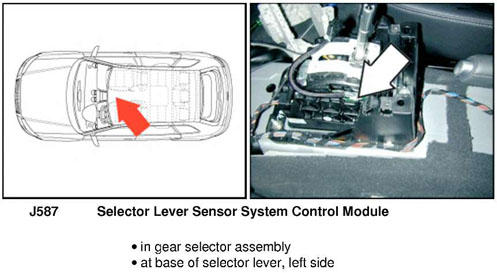

| Seat Occupied Recognition Control Module | On base of front passenger's seat. See Figure. |
| Selector Lever Sensor System Control Module | Left side of selector lever base. See Figure. |

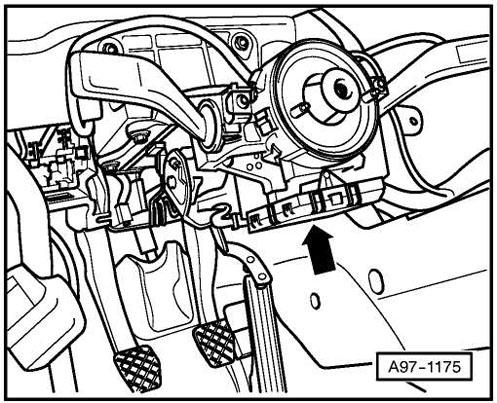

| Steering Column Electronic Systems Control Module | Under steering column. See Figure. |

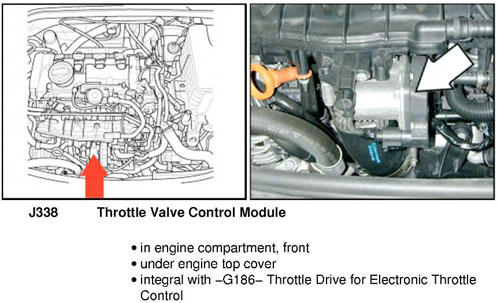

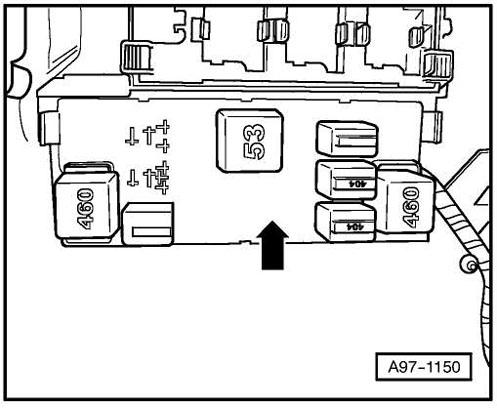

| Throttle Valve Control Module | On throttle body. See Figure. |
| Vehicle Electrical System Control Module | Below left side of dash. See Figure. |

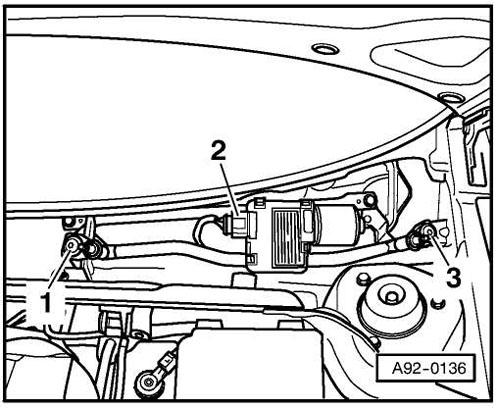

| Wiper Motor Control Module | Integral to windshield wiper motor. See Figure. |
