Data Bus On Board Diagnostic Interface Assembly Overview

NOTE:

Control modules connected to the CAN BUS systems, Refer to appropriate System Wiring Diagram information.

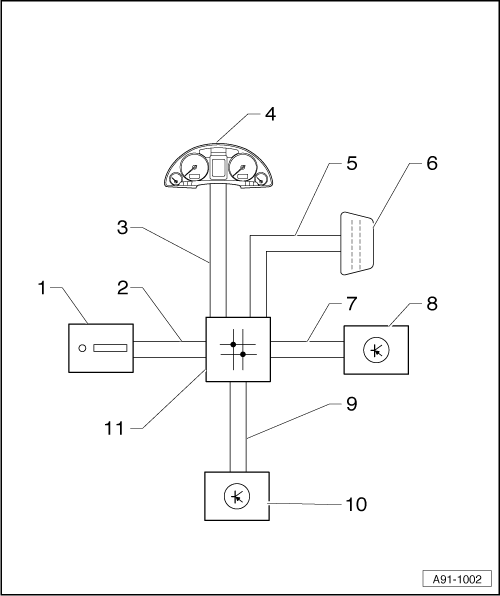

Fig 1: Data Bus On Board Diagnostic Interface, Basic Component Layout
GWWA91-1002Courtesy of AUDI OF AMERICA, LLC
  1. Radio
  2. CAN-Bus Infotainment
  3. CAN-Bus Instrument Cluster
  4. Instrument Cluster Control Module -J285-
    • Instrument Cluster
  5. CAN-Bus Diagnosis
  6. Diagnostic Connection
    • 16-pin connector
  7. CAN-Bus Comfort
  8. Comfort System Central Control Module -J393-
  9. CAN-Bus Drive
  10. Engine Control Module
  11. Data Bus On Board Diagnostic Interface -J533-
    • Gateway
