Cigarette Lighter Outlet With Function Selector Switch II
Special tools and workshop equipment required
- Release tool T40148
Removing
-- Remove center console. Refer to Removal and Installation .
-- Remove the Function Selector Switch II -E272-. Refer to FUNCTION SELECTOR SWITCH II .

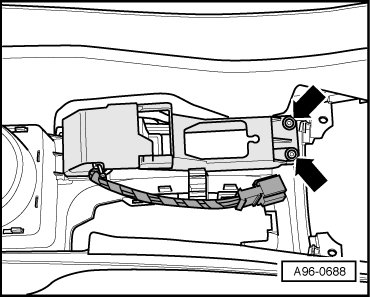

-- Remove screws -arrows-.
-- Remove the cigarette lighter and bracket from the center console by moving the bracket downward.

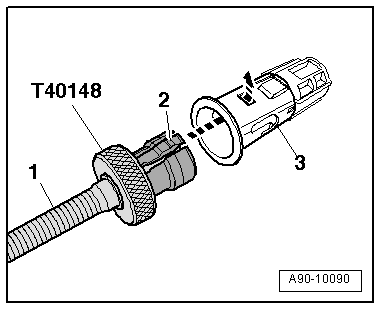

-- The release tabs -2- on the release tool T40148 must engage in the openings in the cigarette lighter/ 12V outlet -3- -arrow- and the threaded pin -1- must slide down as far as the stop.

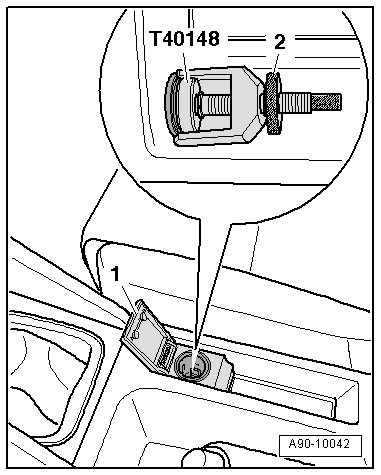

-- If equipped, open the cover -1- and hold it in this position.
-- Insert the T40148 all the way into the cigarette lighter/12V outlet.
-- Rotate the thumbwheel -2- on the T40148 clockwise as far as the stop.

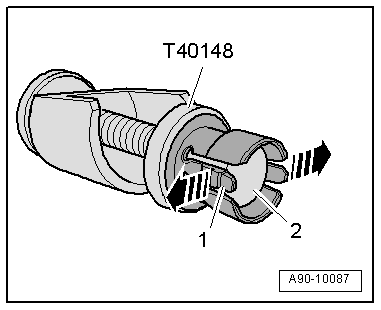

- The piston -2- is pulled upward and the release tabs -1- on the T40148 spread -arrows-.
-- Remove the cigarette lighter/12V outlet using the T40148 from the cigarette lighter illumination -L28-.
-- Disconnect the electrical connector.
Installing
Install in reverse order of removal, observing the following:
Risk of injury.
- After removing the release tool T40148, check to see if the lighter retaining tabs are bent.
- If the retaining tabs are bend, bend them back so the lighter does not slide out.

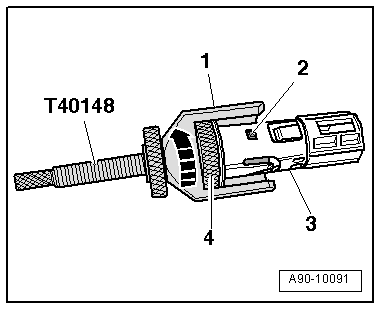

-- Remove the support -1- on the T40148.
-- Slide the piston down and hold it in place.
-- Rotate the thumbwheel -4- on the T40148 counterclockwise -arrow-. This loosens the release tabs -2- on the cigarette lighter -3- so the T40148 can be removed.
-- Install the Function Selector Switch II -E272-. Refer to FUNCTION SELECTOR SWITCH II .
-- Install center console. Refer to Removal and Installation .
Tightening Specifications
| Component | Nm |
|---|---|
| Cigarette lighter to center console | 1.5 |
