Outside Air Temperature Sensor

Observe notes on contact corrosion. Refer to CONTACT CORROSION .

Removing

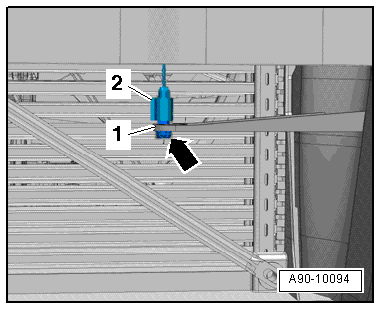

Fig 1: Outside Air Temperature Sensor -G17- -Item 1

Courtesy of AUDI OF AMERICA, LLC

-- Remove front bumper cover. Refer to Removal and Installation .

-- Disconnect the electrical connector -2-.

-- Carefully press the retaining clips together -arrow- and remove the outside air temperature sensor -G17- -item 1- upward from the bracket.

Installing

Install in reverse order of removal, observing the following:

-- Install the front bumper cover. Refer to Removal and Installation .
