Radio Frequency Controlled Clock Receiver

Removing

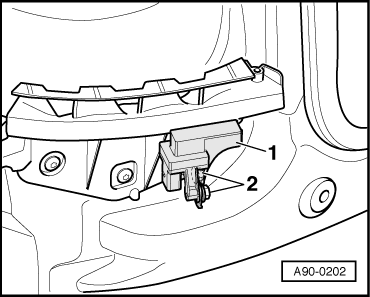

Fig 1: Identifying Electrical Connection, Screws, And Receiver

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear bumper cover. Refer to Removal and Installation .

-- Disconnect the connector on the radio frequency controlled clock receiver -J489- -item 1-.

-- Remove screws -2- and remove radio frequency controlled clock receiver.

Installing

Install in reverse order of removal, noting the following:

-- Install the rear bumper cover. Refer to Removal and Installation .

Tightening Specifications
